API Drill Pipe Float Valve for Oil Drilling with Plunger and Flapper Type

Dongying Oilman Machinery Equipment Co., Ltd.
  • After-sales Service：Online Technical Support
  • Warranty：One Year
  • Manufacturing Process：Forging
  • Surface Treatment：Xylan Coating or Nickel Plated
  • Operation Pressure：Atmospheric Pressure
  • Material：Alloy

Base Info

  • Model NO.：Model F & G Drill Pipe Float Valve
  • Product Name：API Drill Pipe Float Valve for Oil Drilling
  • Port Size：1r to 6r
  • Transport Package：Export Wooden Case
  • Specification：Model F & G
  • Trademark：OilMan
  • Origin：China
  • Production Capacity：2000 Pieces Per Month

Description

Other Popular Connections    Connection APIDepth Of Recess mm (inch)Connection APIDepth Of Recess mm(inch)1R42.1(1-21/32)149.2(5-7/8)42.9(1-11/16)2-3/8Reg.231.8(9-1/8)NC23231.8(9-1/8)2F-3R61.1(2-13/32)165.1(6-1/2)61.9(2-7/16)3-1/2Reg.266.7(10-1/2)NC31260.35(10-1/4)3-1/2 F79.4(3-1/8)254(10)80.2(3-5/32)  NC38362.0(14-1/4)4R88.1(3-15/32)211.1(8-5/16)88.9(3-1/2)4-1/2Reg.325.4(12-13/16)NC44331.8(13-1/16)5R98.4(3-7/8)247..7(9-3/4)99.2(3-29/32)5-1/2Reg.374.7(14-3/4)NC50368.3(14-1/2)5F-6R121.4(4-25/32)298.5(11-3/4)122.2(4-13/16)6-5/8Reg..431(17)5-1/2IF431.8(17)
We make a complete line of Float Valves and Repair Kits to accommodate a wide range of drilling situations and operating conditions.

Spare Parts for Model G Type Drill Pipe Float Valve include: Small Bumper, Spring, Pin, Large Bumper, Shock Absorber, Seal Retainer, Flapper Valve, Seal, Side Seal, Cage

Spare Parts for Model F Type Drill Pipe Float Valve include: Valve Seal Disc, Plunger, Side Seal, Valve Seal, Guide, Spring, Cage.

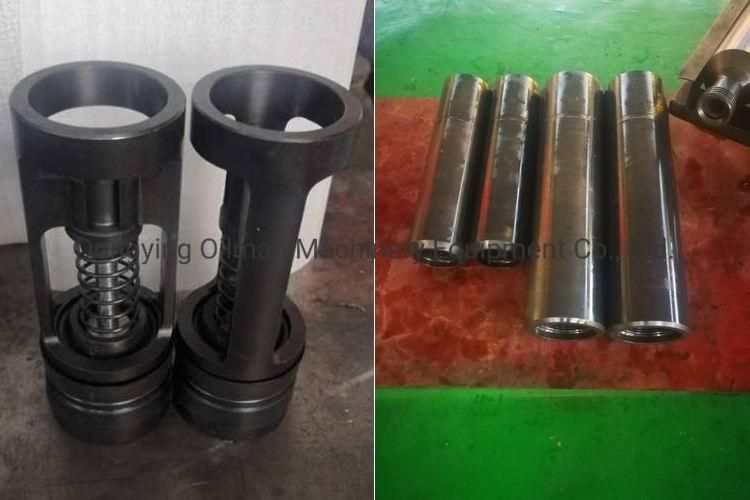

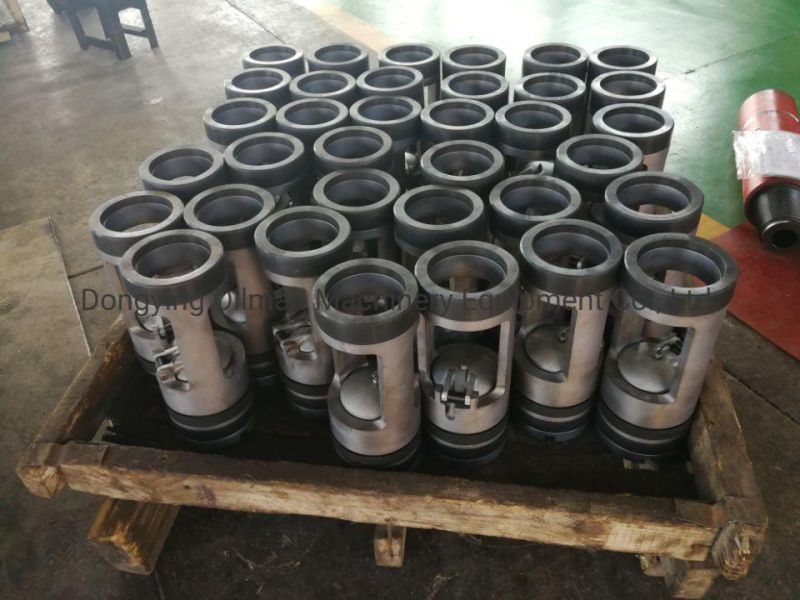

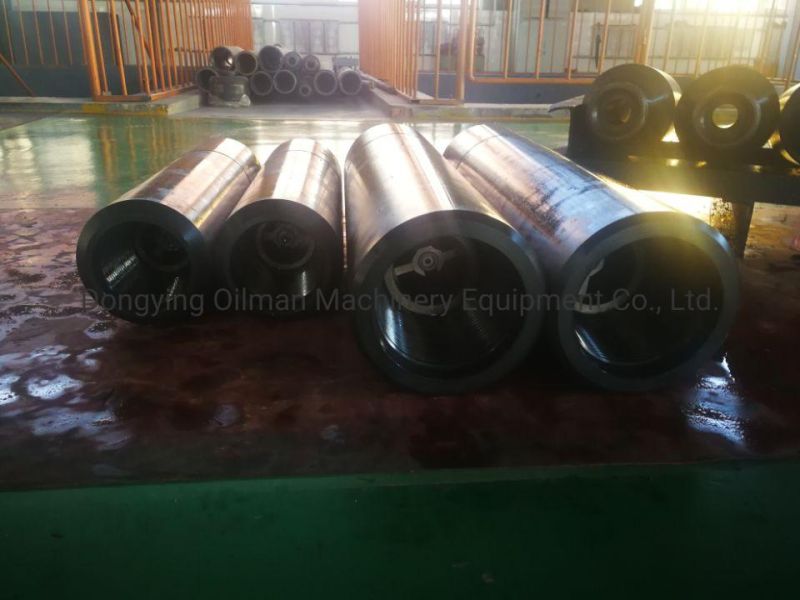

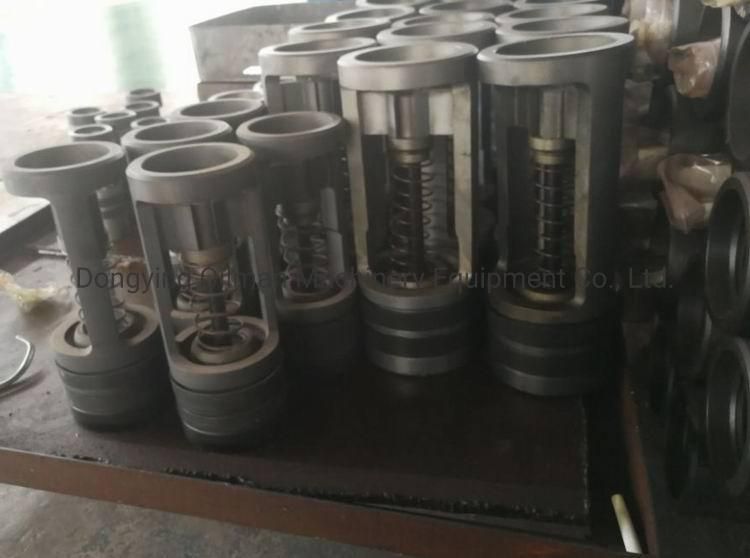

Drill Pipe Float Valve & Float Valve Sub Pictures:

API Drill Pipe Float Valve for Oil Drilling with Plunger and Flapper TypeAPI Drill Pipe Float Valve for Oil Drilling with Plunger and Flapper TypeAPI Drill Pipe Float Valve for Oil Drilling with Plunger and Flapper TypeAPI Drill Pipe Float Valve for Oil Drilling with Plunger and Flapper Type
