API Standard Drill Pipe Float Valves Subs & Float Valve for Oilfield

Dongying Oilman Machinery Equipment Co., Ltd.
  • After-sales Service：Online Technical Support
  • Warranty：One Year
  • Manufacturing Process：Forging
  • Surface Treatment：Xylan Coating or Nickel Plated
  • Operation Pressure：Atmospheric Pressure
  • Material：Alloy

Base Info

  • Model NO.：Model F & G Drill Pipe Float Valve
  • Product Name：API Drill Pipe Float Valves Subs & Float Valve
  • Port Size：1r to 6r
  • Transport Package：Export Wooden Case
  • Specification：Model F & G
  • Trademark：OilMan
  • Origin：China
  • Production Capacity：2000 Pieces Per Month

Description

Other Popular Connections    Connection APIDepth Of Recess mm (inch)Connection APIDepth Of Recess mm(inch)1R42.1(1-21/32)149.2(5-7/8)42.9(1-11/16)2-3/8Reg.231.8(9-1/8)NC23231.8(9-1/8)2F-3R61.1(2-13/32)165.1(6-1/2)61.9(2-7/16)3-1/2Reg.266.7(10-1/2)NC31260.35(10-1/4)3-1/2 F79.4(3-1/8)254(10)80.2(3-5/32)  NC38362.0(14-1/4)4R88.1(3-15/32)211.1(8-5/16)88.9(3-1/2)4-1/2Reg.325.4(12-13/16)NC44331.8(13-1/16)5R98.4(3-7/8)247..7(9-3/4)99.2(3-29/32)5-1/2Reg.374.7(14-3/4)NC50368.3(14-1/2)5F-6R121.4(4-25/32)298.5(11-3/4)122.2(4-13/16)6-5/8Reg..431(17)5-1/2IF431.8(17)
We make a complete line of Float Valves and Repair Kits to accommodate a wide range of drilling situations and operating conditions.

Spare Parts for Model G Type Drill Pipe Float Valve include: Small Bumper, Spring, Pin, Large Bumper, Shock Absorber, Seal Retainer, Flapper Valve, Seal, Side Seal, Cage

Spare Parts for Model F Type Drill Pipe Float Valve include: Valve Seal Disc, Plunger, Side Seal, Valve Seal, Guide, Spring, Cage.

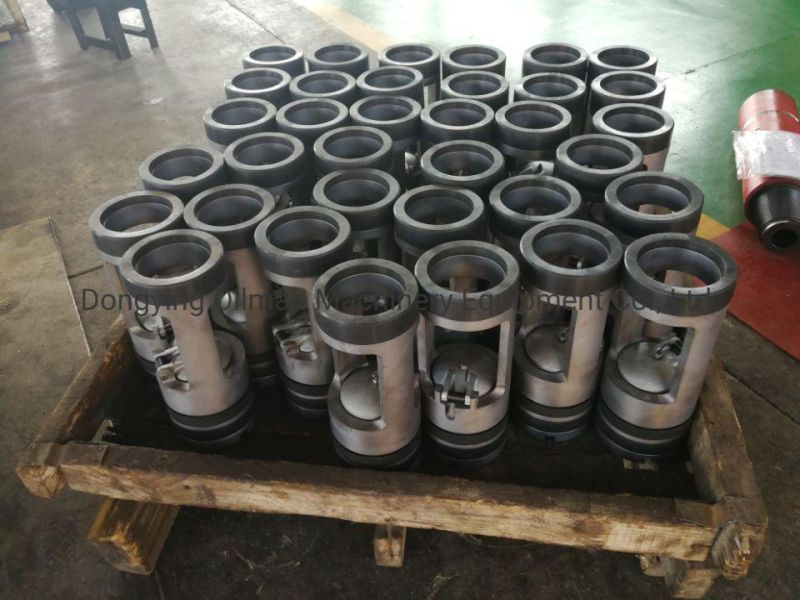

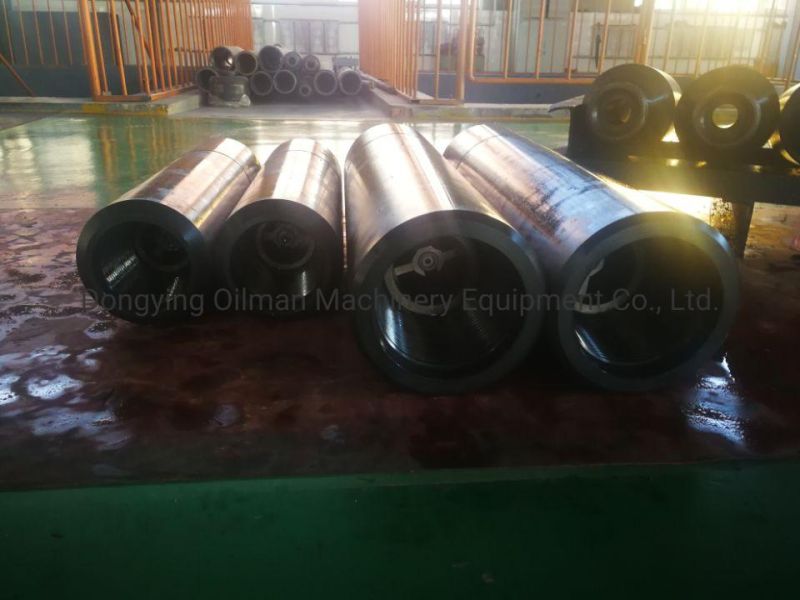

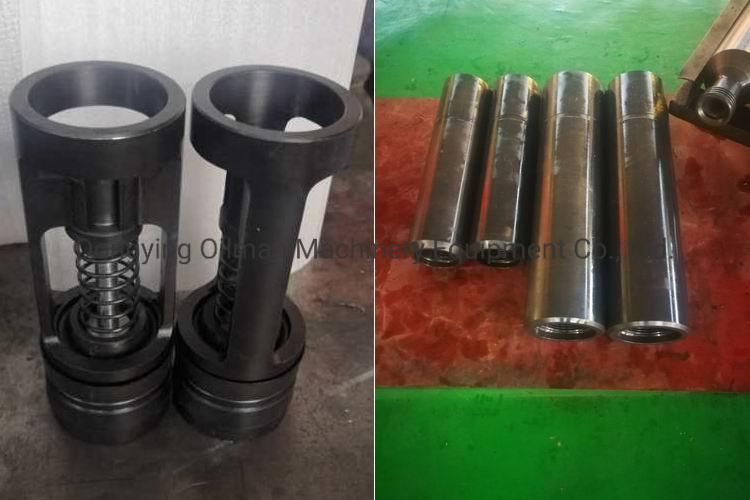

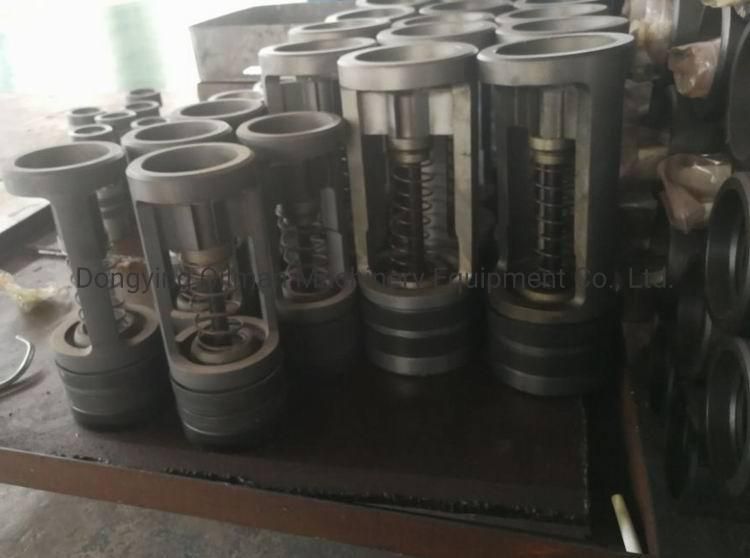

Drill Pipe Float Valve & Float Valve Sub Pictures:

API Standard Drill Pipe Float Valves Subs & Float Valve for OilfieldAPI Standard Drill Pipe Float Valves Subs & Float Valve for OilfieldAPI Standard Drill Pipe Float Valves Subs & Float Valve for OilfieldAPI Standard Drill Pipe Float Valves Subs & Float Valve for Oilfield
