Ekc Anchor Seal Assembly Made in China
Zhenjiang Boral Machinery and Equipment Co., Ltd.- Certification：ISO 9001:2008, API
- Power Source：Hydraulic
- Operation Pressure：Atmospheric Pressure
- Applicable Medium：Mud, Water, Natural Gas, Crude Oil
- Structure：Vertical
- Material：Cast Steel
Base Info
- Model NO.：EKC
- Standard：API 11d1
- Transport Package：Pallet
- Trademark：EXTRONG
- Origin：China
- HS Code：8431431000
- Production Capacity：5000 Pieces Per Year
Description
Basic Info.
Model NO. EKC Standard API 11d1 Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per YearProduct Description

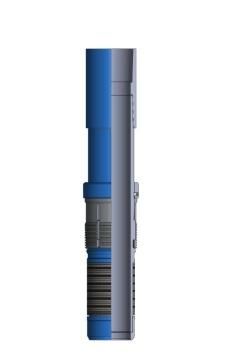

EKC ANCHOR SEAL ASSEMBLY
INTRODUCTION
EKC Anchor Seal Assembly is used to anchor and seal, to connect the seal bore to permanent packer to tubing. Anchor assembly is connected to packer and seal assembly to seal bore, thus ensure pressure integrity.
FEATURES
• Upper part of EKC Anchor Seal connected to tubing coupling with high quality metal-to-metal threading
• Leaving enough space for installation of anchor joint
• Seal unit can be changed conveniently
• To separate anchor seal from permanent packer seal bore through right-hand rotation of upper string

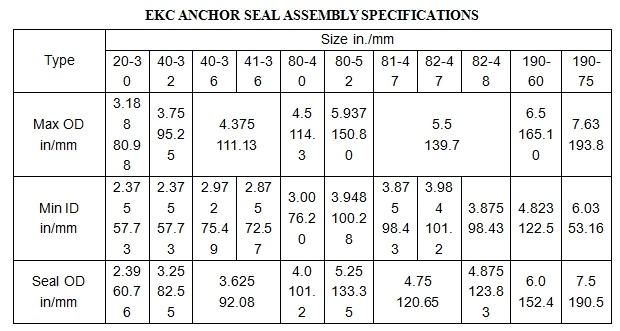

| SPECIFICATION SHEET |
