• Model NO.：EHC
• Standard：API 11d1
• Transport Package：Pallet
• Trademark：EXTRONG
• Origin：China
• HS Code：8431431000
• Production Capacity：5000 Pieces Per Year

Basic Info.

Model NO. EHC Standard API 11d1 Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per Year

Product Description

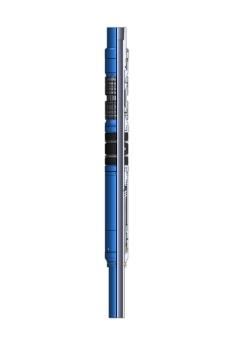

EHC HYDRAULIC SET RETRIEVABLE PACKER

INTRODUCTION

The EHC packer is a retrievable, hydraulic-set production packer set in casing to divert casing-to-tubing flow. It is set by pressuring up the tubing string against a plugging device below the packer. Bi-directional, integral slips hold the packer against well pressures from above and below. Spring-loaded internal slips maintain the packer in the set position. The EHC packer is a pull straight up and shear to release packer that is convertible to cut to release. The shear release value is adjustable.

FEATURES

• Barrel slip design to minimize the pressure on casing

• One piece mandrel structure with high strength

• Big bore design and Triple seal multi-durometer element

• High load bearing capacity

•Three sections of different hardness of packing elements to form a sealing system

• Pull straight up and shear to release, and shear release value is adjustable.

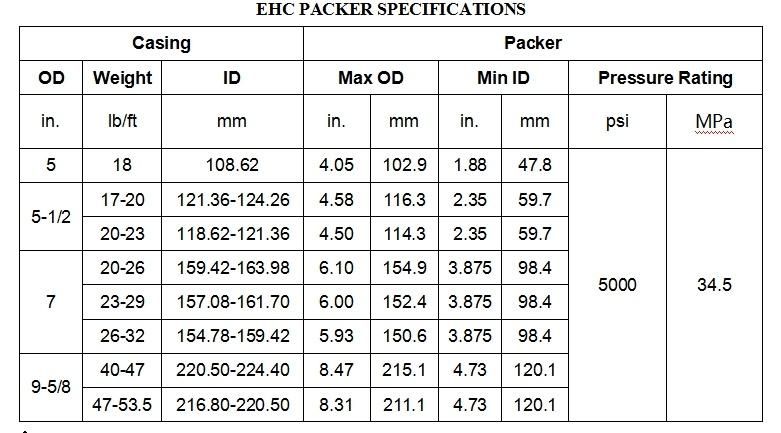

SPECIFICATION SHEET
