Ehi Hydraulic Set Retrievable Isolation Packer
Zhenjiang Boral Machinery and Equipment Co., Ltd.- Certification：ISO 9001:2008, API
- Power Source：Hydraulic
- Operation Pressure：Atmospheric Pressure
- Applicable Medium：Mud, Water, Natural Gas, Crude Oil
- Structure：Vertical
- Material：Cast Steel
Base Info
- Model NO.：EHI
- Standard：API 11d1
- Transport Package：Pallet
- Trademark：EXTRONG
- Origin：China
- HS Code：8431431000
- Production Capacity：5000 Pieces Per Year
Description
Basic Info.
Model NO. EHI Standard API 11d1 Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per YearProduct Description

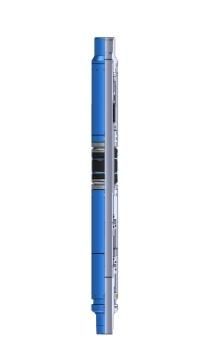

EHI HYDRAULIC SET RETRIEVABLE ISOLATION PACKER
INTRODUCTION
EHI Packer is a hydraulic set isolation packer mainly applied in water injection. This packer is set by means of pushing the series connected double pistons with hydraulic pressure to compress the element and meanwhile lock up mechanically for retaining. When well flushing is needed, apply 1MPa pressure on the tubing casing annulus space to open the well flushing valve and realize the flushing function. In water injection operation, the tubing casing pressure differential closes the well flushing valve and separates different zones for zonal water injection. Pull straight the string upward to release.
FEATURES
• Easy to operate
• Hydraulic set
• Pull straight upward and shear to release
• No mandrel movement during setting allows stacked packer applications
• Reliable performance
• Simple mechanism and reliable performance

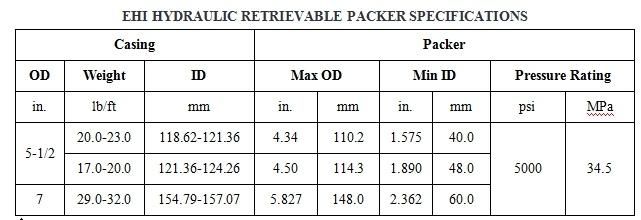

| SPECIFICATION SHEET |
