• Model NO.：EX
• Standard：API
• Transport Package：Pallet
• Trademark：EXTRONG
• Origin：China
• HS Code：8431431000
• Production Capacity：5000 Pieces Per Year

Basic Info.

Model NO. EX Standard API Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per Year

Product Description

EX / EXN TYPE LANDING NIPPLE

INTRODUCTION

EX Landing Nipple is a selective landing nipple that provides a locating, locking and sealing profile for Model EX lock mandrel. Any numbers of EX landing nipples can be run in one trip string. The inner bore of EX landing nipple consists of one selective profile, one locking groove and one seal bore. When working the braking ratchet of the lock mandrel stretches out into the groove of the landing nipple. Blanking plugs, flow control device and testing instruments can be hung below the lock mandrel.

EXN Landing Nipple is a bottom landing nipple that provides a locating, locking and sealing profile for EXN lock mandrel. Only one EXN landing nipple can be run in one trip string as landing nipple at the bottom of the completion string. The inner bore of EXN landing nipple consists of one bottom no-go shoulder, one locking groove and one seal bore. When working the braking ratchet of the lock mandrel stretches out into the groove of the landing nipple.

FEATURES

• Can reduce the cost of completion and extraction.

• Equipped with polished seal bore to pass V-shaped packing without any damage.

• Same material and size as the tubing, thus, avoiding restriction effect

• The small no-go shoulder of the lower inner bore of EXN Landing Nipple can prevent slickline tools from dropping and loss.

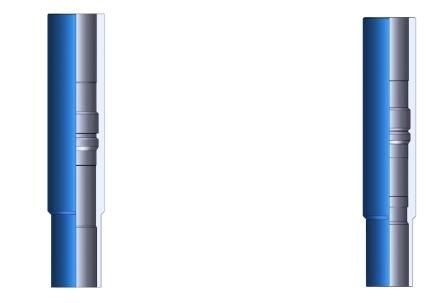

                                 EX TYPE LANDING NIPPLE                                 EXN TYPE LANDING NIPPLE

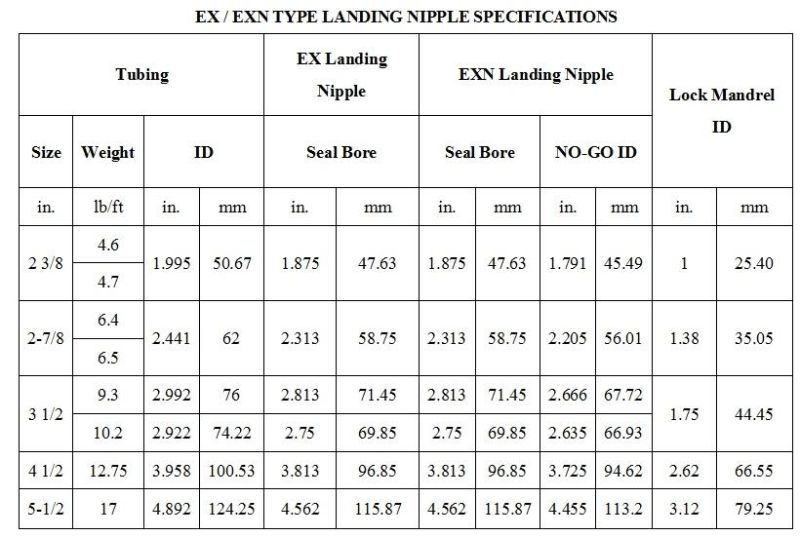

SPECIFICATION SHEET
