• Model NO.：1308
• Specification：A
• Trademark：HX
• Origin：Henan China
• HS Code：4113960213
• Production Capacity：5000PCS

Basic Info.

Model NO. 1308 Specification A Trademark HX Origin Henan China HS Code 4113960213 Production Capacity 5000PCS

Product Description

Company imformation Established in 1990, Zhecheng Hongxiang Superhard Material Co., Ltd is the first
Producer who reserached synthetic diamond and diamond tools in China. Our diamond
Tools are the hightech new products, have been exhibited at Shang hai World Expo

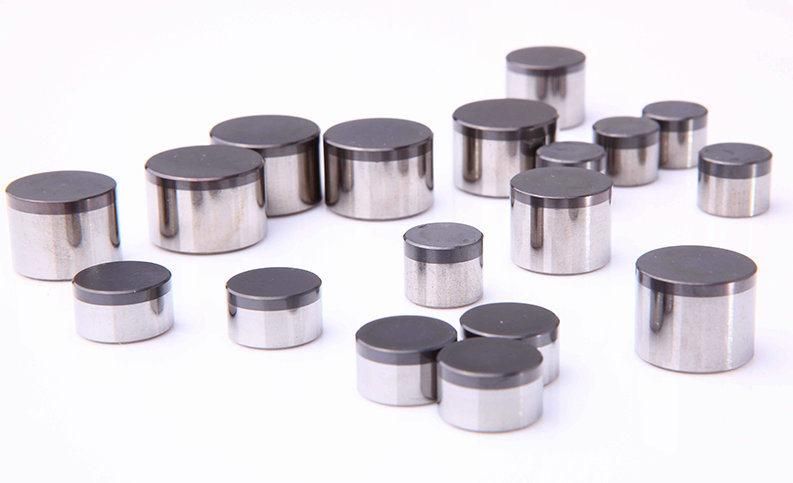

Private Enterprice Pavillion. PDC bits uses PDC as main cutting components, with the excellent wear-ability and impact toughness of the PDC.
Introduction It has a long useful life, high-efficiency, and good cost performance. Also, it has advanced technies and strict process contral.
PDC bit is mainly used for drilling soft and big drainage.

Specifications
1, Size from 75mm to 450mm
2, Various shapes can be choose
3, Meet the needs of the new and old customers
4, Long lifespan and stable performance
All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information.

Product Number	Diameter (D)(mm)	Height (T) (mm)	Diamond Thickness (t) (mm)	Diamond  Chamfer (mm)
1308	13.44±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1313	13.44±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1608	15.88/16.00±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1613	15.88/16.00±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1908	19.05±0.05	8.00±0.10	2.30±0.20	0.30±0.10
1913	19.05±0.05	13.20±0.10	2.30±0.20	0.30±0.10
1916	19.05±0.05	16.31±0.10	2.30±0.20	0.30±0.10

Factory Introduction

Zhecheng Hongxiang Superhard Material CO.,LTD was founded in 1990 which in affiliated with Wanke Group. The company is a high-tech enterprise with modern management experience and strong research and development ability. Besides, it has won many national and local awards and obtained several invention patents.

Constant innovation and good faith are our foothold.



Our products has exported to United Kingdom France , Germany, Spain, Italy, USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey etc 52 countries and participated in many



Domestic and international exhibitions. Besides, our product has won good satisfaction and recognition by domestic and foreign customers.
