• Model NO.：BBWS
• for Wire Size：0.108", 0.125"
• Connection：Un, Qls, Hdqrj
• Transport Package：Wooden Case
• Specification：1.25"~2.5"
• Trademark：BOBAN & OEM
• Origin：China
• HS Code：8431431000
• Production Capacity：100 PCS Per Month

Basic Info.

Model NO. BBWS for Wire Size 0.108", 0.125" Connection Un, Qls, Hdqrj Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 100 PCS Per Month

Product Description

Oilfield Downhole Wireline Slickline Tools Wireline Stem/Sinker BarI. Introduction
A wireline stem weight bar is designed to serve two purposes. Firstly it is the weight required to overcome forces created by well pressure and the size of cable used and secondly it is the mass required to deliver impacts when setting or pulling devices in the wellbore.

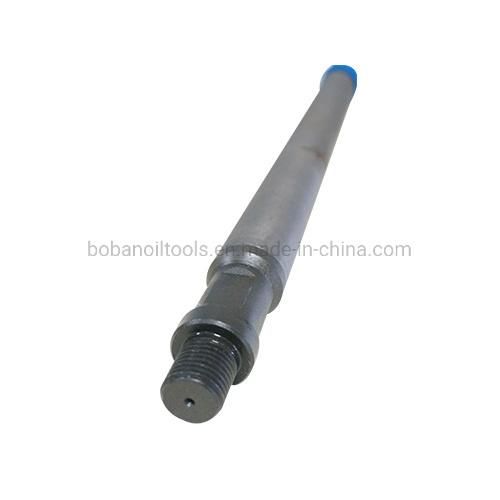

BOBAN series slickline tools available for UN, QLS and HDQRJ connection. The stem is cylindrical with fishing neck and pin connection (or QRJ pin) on the top and with box connection (or QRJ box) on the bottom.

II. General Technical Parameters

Size	Fishing neck	Connection	Length
1.25"	1.187"	15/16UN	2ft
1.25"	1.187"	15/16UN	3ft
1.25"	1.187"	15/16UN	5ft
1.5"	1.375"	15/16UN	2ft
1.5"	1.375"	15/16UN	3ft
1.5"	1.375"	15/16UN	5ft
1.75"	1.375"	15/16UN	2ft
1.75"	1.375"	15/16UN	3ft
1.75"	1.375"	15/16UN	5ft
1.875"	1.75"	1-1/16UN	2ft
1.875"	1.75"	1-1/16UN	3ft
1.875"	1.75"	1-1/16UN	5ft
2.125"	1.75"	1-1/16UN	2ft
2.125"	1.75"	1-1/16UN	3ft
2.125"	1.75"	1-1/16UN	5ft
2.5"	2.313"	1-9/16UN	2ft
2.5"	2.313"	1-9/16UN	3ft
2.5"	2.313"	1-9/16UN	5ft

Note. Other sizes are available upon request.
