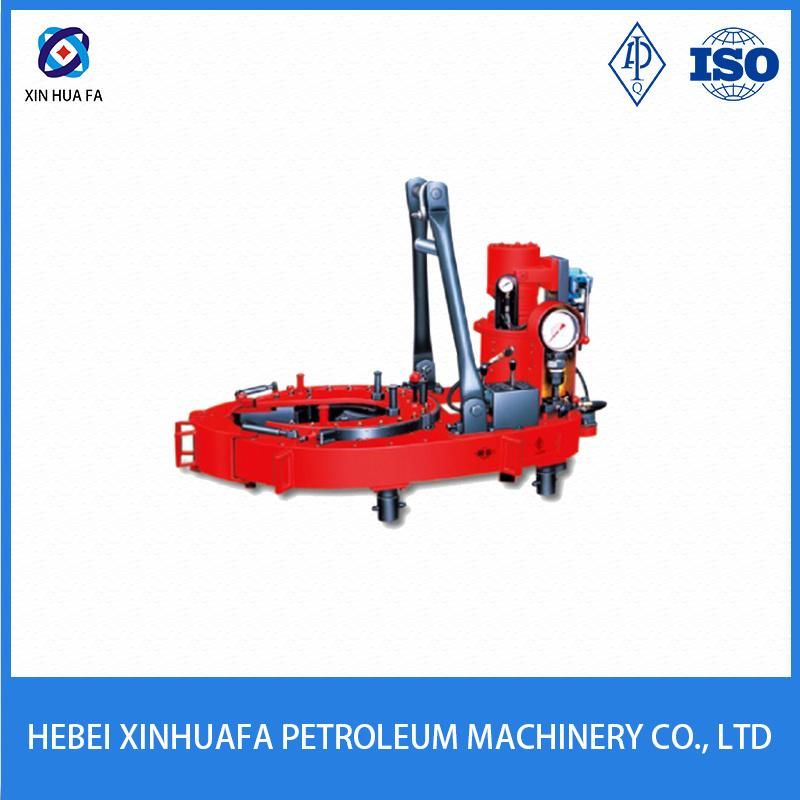

TQ Casing Power Tong for drilling rig

PRODUCT DESCRIPTION
It has the following characteristics:
The best cutting diameter ratio design, reliable clamping, no slippage;
The brake band brake, the righting mechanism under the;
The hydraulic, two gear speed, using gear gear;
The automatic control system of the optional torque. The installation of torque automatic control system is better.

Main technical parameters:

Model	TQ245/20Y	TQ340/35Y	TQ508/70Y
Application Range of Master Tong	Φ102~Φ245mm	Φ140~Φ340mm	Φ245~Φ508mm
Application Range of Backup Tong	Φ121~Φ270mm	Φ154~Φ365mm	Φ270~Φ533mm
High Gear Rated Torque	2600N.m	4800N.m	10160N.m
Low Gear Rated Torque	20000N.m	35000N.m	70000N.m
High Gear Rotation Speed	67 rpm	42 rpm	23 rpm
Low Gear Rotation Speed	9 rpm	6 rpm	3 rpm
Rated Operation Pressure	14 MPa	14 MPa	17 MPa
Max. Flow	120 L/min	120 L/min	120 L/min
Dimension:L×W×H mm	1500×630×650	1450×980×650	1980×1219×690
Weight(With Backup)	650kg	1050 kg	2250 kg

Company profile

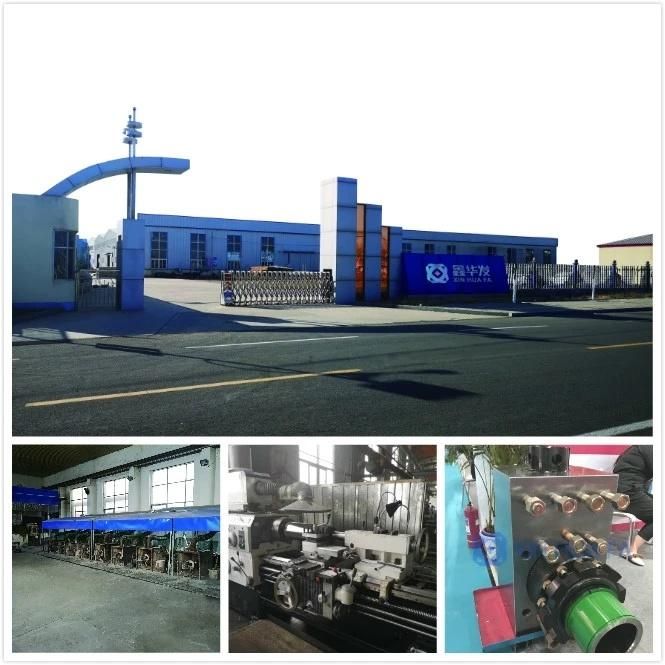

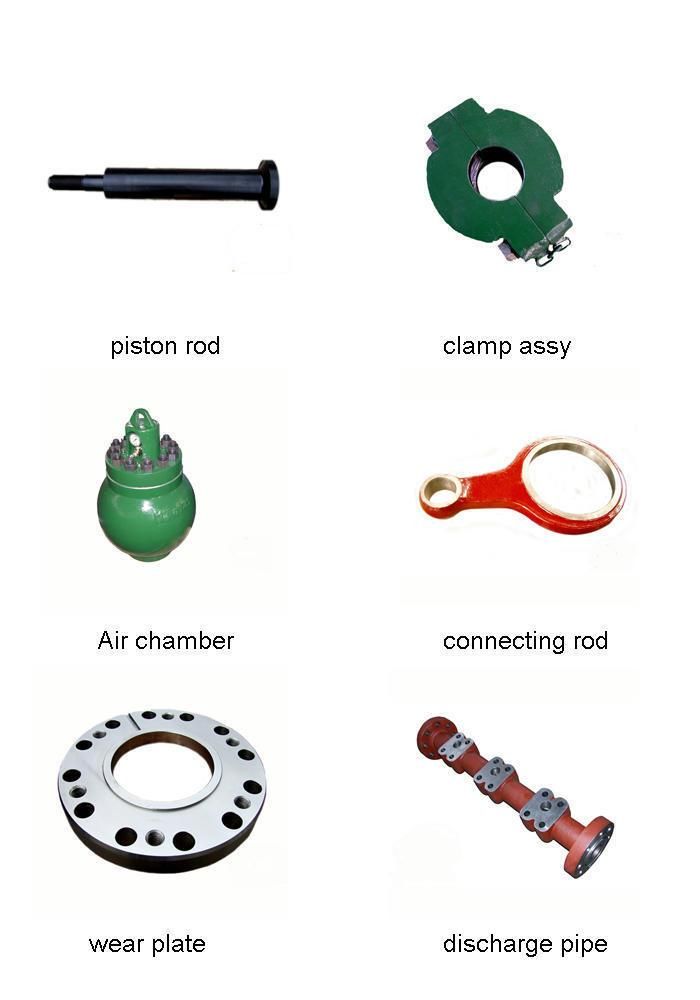

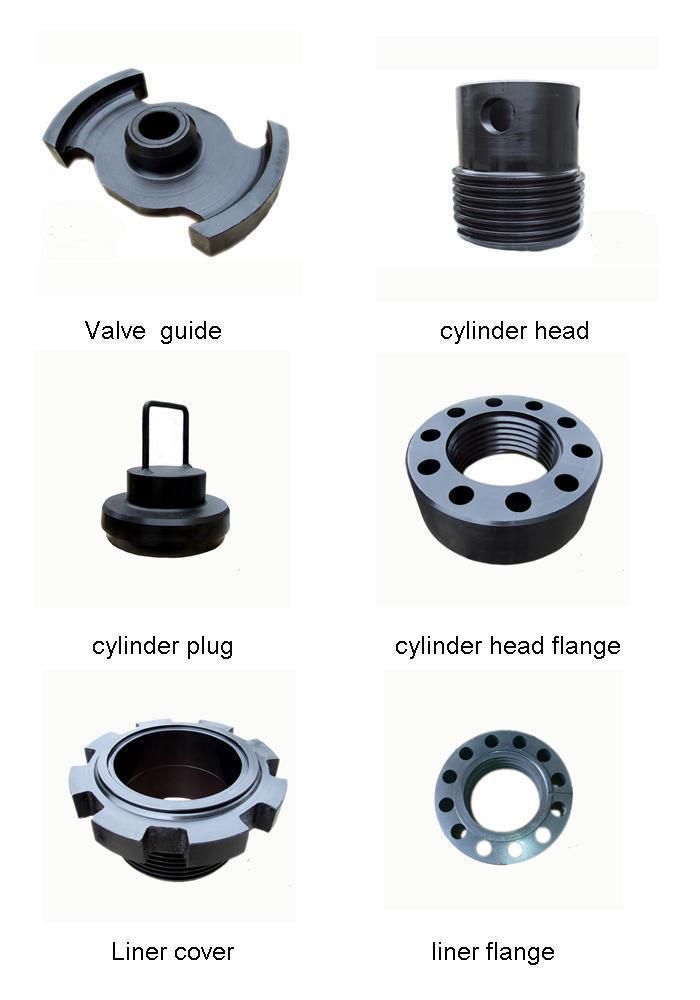

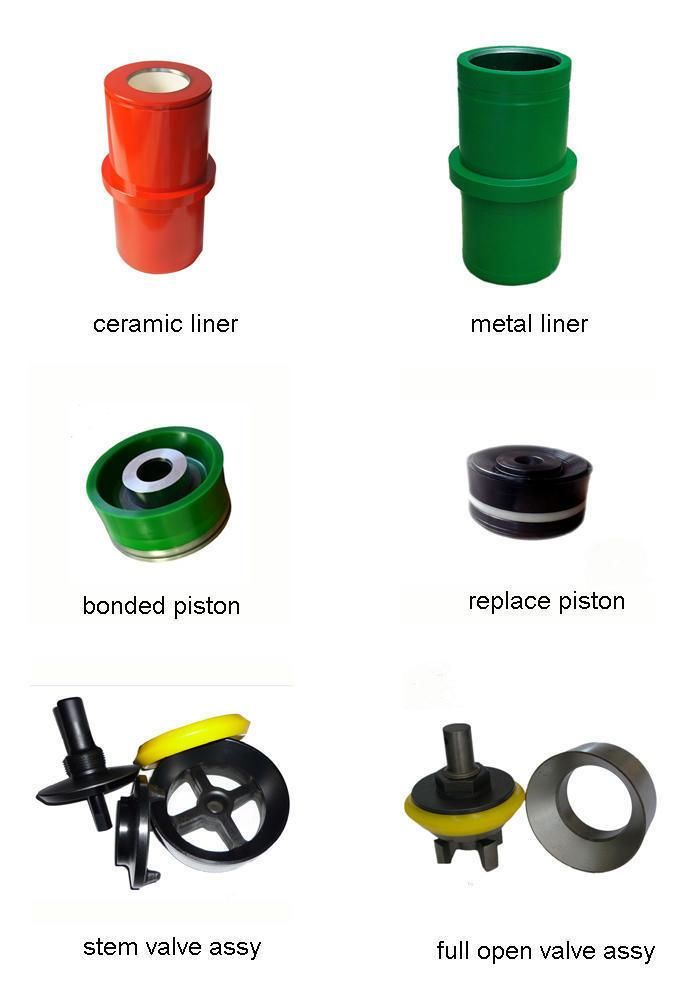

 Hebel Xinhuafa Petroleum Machinery Co. LTD was established in 2006,with 5000m2 plant.The company focuses on R&D of mud pump fittings and several R&D results were horned with awards as well as patented for invention. The company is engaged in product design, manufacturing and service on all the quality oilfield replacement parts, including mud pump fluid end parts including Fluid end modules, liners, pistons, valves,&seats, extension rods, piston rods, valve covers etc.
The company holds a professional technical team and is equipped with advanced machineries,improving the technical skills and updating product quality,

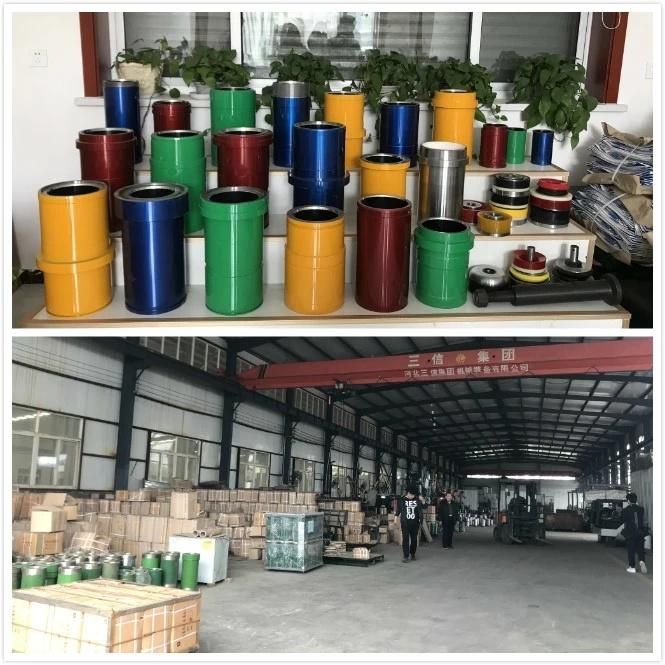

Our products are certified by ISO9001 quality control. We supply products not only our oilfields company of domestic, but also dozens of countries all over the world, such as USA, Russia, Indonesia and Iran. With several years' persistence, we are widely accepted as a professional supplier of high quality mud pump cylinder liners and other parts in fluid end modules.

We are professional manufacturer and exporter of Mud Pump & Parts for 20 years. And we can supply you whole set on flat which suitable for oilfields in any worse environment outside. All are tested and can work well stable without monitoring. Parts also can be supplied to all pumps. All items are manufactured to API 7K quality standards.

Further information, send us inquiry please. We welcome you to visit our factory all the time.
