• Model NO.：BBDL110-10
• Capacity：1*0.75kw
• Vibration Strength：≤8.3
• Screen Surface Area：0.78m2
• Awd：Unavailable
• Lifting Head：23 Meters
• Screen Type：One Piece of Complete Soft Hook Screen
• Desilter Cyclone Size：4"
• Desilter Cyclone Qty：Customized
• Cut Point：15-44μm
• Dimension：1455*2426*1774mm
• Weight：1050kg
• Transport Package：Pallet & Thermal Shrinkage Film
• Specification：1455*2426*1774
• Trademark：BOBAN
• Origin：Xi′an China
• HS Code：8474809000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. BBDL110-10 Capacity 1*0.75kw Vibration Strength ≤8.3 Screen Surface Area 0.78m2 Awd Unavailable Lifting Head 23 Meters Screen Type One Piece of Complete Soft Hook Screen Desilter Cyclone Size 4" Desilter Cyclone Qty Customized Cut Point 15-44μm Dimension 1455*2426*1774mm Weight 1050kg Transport Package Pallet & Thermal Shrinkage Film Specification 1455*2426*1774 Trademark BOBAN Origin Xi′an China HS Code 8474809000 Production Capacity 30 Sets Per Month

Product Description

Solid Control Equipment Mud Cleaner/Mud Desilters for Drilling Fluids Separation


Introduction:

Desilter is composed of 8-12 nos φ125 polyurethane hydraulic cyclone and a small fine shaker combination. It is used to remove the drilling fluids 20-40μm harmful solid phase.

Desilter is the third important solids control facility in drilling mud purification system. It could enhance the performance of drilling mud, and can work together with desander cleaner. Commonly used cone is 4" or 5" , which can remove 15-47μm solids particles in drilling fluids. Desilter is also called Hydrocyclone Desilter on the basis of clients' handling ability.

Besides oilfield drilling fluids separation, desilter is also usedin horizontal directional drilling(HDD), coal bed methane drilling, bored piling, micro-tunnelling and other trenchless project.


Feature:

1.Painting: Heavy anti-corrosion paint.
2.Inlet and outlet adopt fast joint connection.

3.Heat treatment on entire deck.
4.International famous brand vibration motor with Martin or OLI.
5.High strength compound rubber material used to reduce shocking.
6.Electrinic control system from famous brand explosion-proof eletronic switch.
7.Cyclones with high wearing-resisting polyurethane and high-chromium iron.



Technical Parameter:


Model No.	DL100-10
Vibration Motion	Balanced Elliptical Motion
Motor Power	1*0.75kw(1hp)
Vibration Strength	≤8.3()
Screen Surface Area	0.78/8.4
AWD	Un-adjustable
Lifting Head	23/75
Capacity	227/1000
Screen Type	One pcs Complete Soft Hook Screen
Screen Size	600*1450/24*57
Desilter Cyclone Dia.	4"
Cyclone QTY	10
Cut Point	15~44
Dimension	1455*2426*1774/57*96*70
Weight	1050/2315

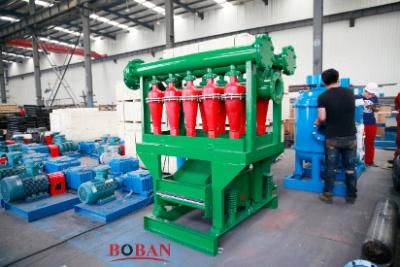

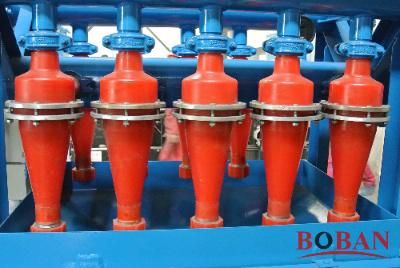

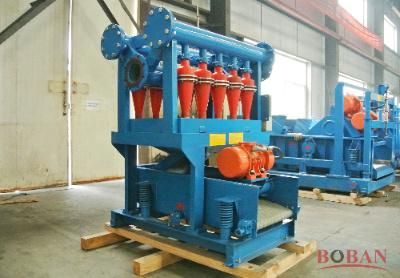

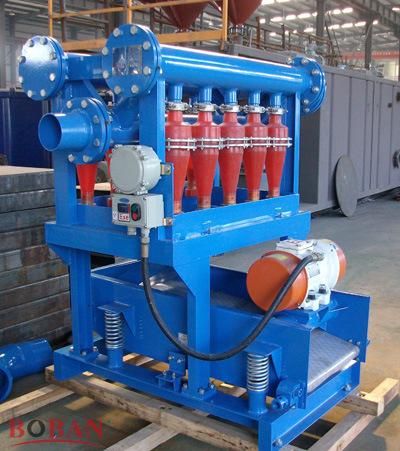

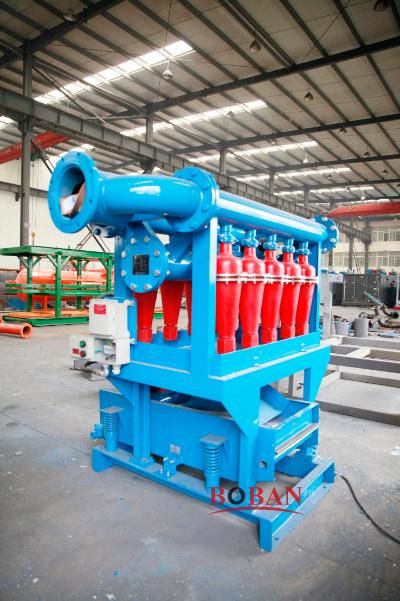

BOBAN Desilter Photos for Reference:









BOBAN desilter can bu customized to meet different requirement for different drilling fluids function in different industry.
We can customize the dimention & capacity of the flowline shale shaker as well as the desilter cyclones quantity for different purpose.

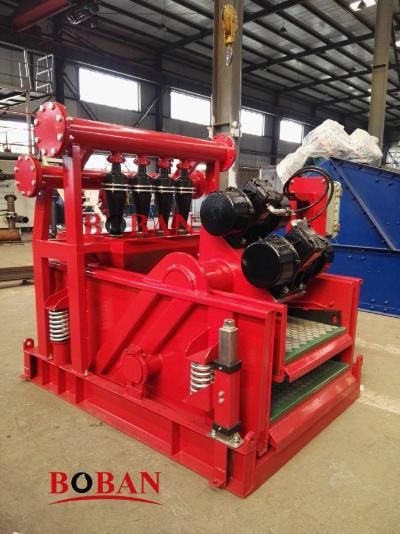

For example, the below one is a small customized mud cleaner that we made for a HDD client, with dual-deck shale shaker, and 4 nos 4" desilter cyclones. and the machine performes well.
