  F-1600 Triplex Mud Pump Valve Seat /Full Open Valve  and Seat Valves and Seats
HEBEI XINHUAFA PETROLEUM MACHINERY CO., LTD.- Manufacturing Process：Forging
- Surface Treatment：Spray-Paint
- Operation Pressure：Vacuum
- Material：Cast Steel
- Cetification：API
- Application：Piston Pump
Base Info
- Specifications：60 to 300mm
- Advantage：Durable
- Tensile Strength：>610MPa
- Name：Mud Pump Valves and Valve Seats for F-800, F-1300,
- Package：Standard
- MOQ：3
- Port：Tianjin
- Model：F Series,3nb Series,etc
- Theory：Centrifugal Pump
- Transport Package：Wooden Box and Sea Shipment
- Specification：standard
- Trademark：xinhuafa
- Origin：Cn
- HS Code：841391000
- Production Capacity：50000sets,Per Year
Description
Basic Info.
Specifications 60 to 300mm Advantage Durable Tensile Strength >610MPa Name Mud Pump Valves and Valve Seats for F-800, F-1300, Package Standard MOQ 3 Port Tianjin Model F Series,3nb Series,etc Theory Centrifugal Pump Transport Package Wooden Box and Sea Shipment Specification standard Trademark xinhuafa Origin Cn HS Code 841391000 Production Capacity 50000sets/Per YearProduct Description

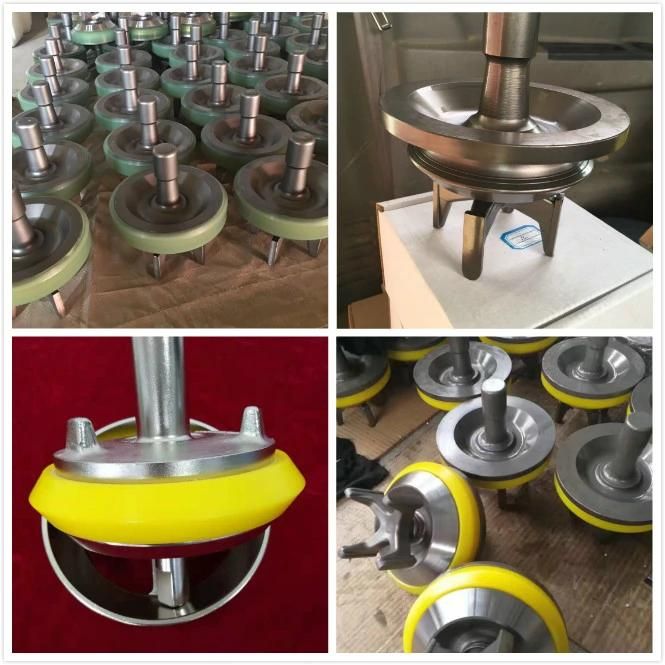

F-1600 triplex mud pump valve seat /Full open valve and seat Valves and Seats
Our valve and seat assembly are made of forged alloy steel with deep carburized wear surface. We offer a full range of valves and seats which include full open valve and seat, 3 web / 4 web design valve and seat.
Features: ·
1.Forged alloy construction ·
2.Deep carburized wear surface ·
3.Precision machined to API standard
4.Urethane inserts ·
5.Rubber inserts ·Associated parts

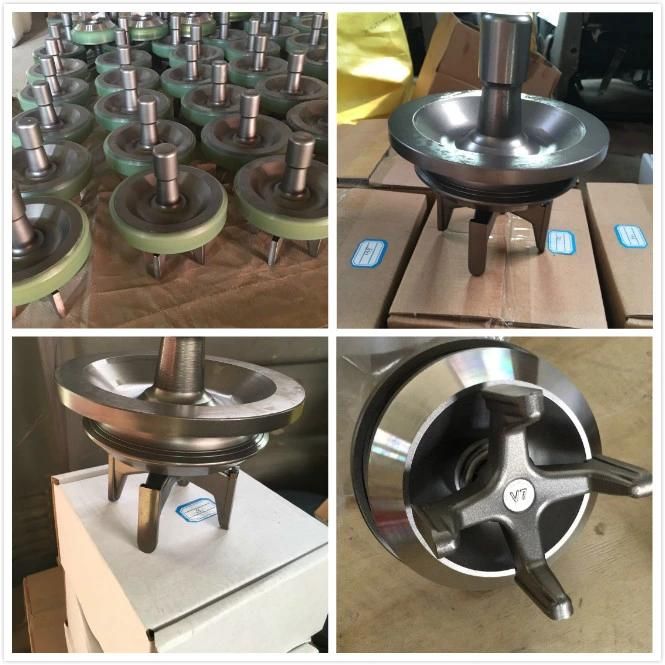

Full Open Valve and Seat:
The valve comes with full open seat features four guide wings. They are either inertia welded to the valve body or uniformly forged with valve body. The urethane insert can be easily snapped on.
3 Web / 4 Web design Valve and Seat:
The 3 web / 4 web seat comes with stem guided valve. The urethane insert is tightened by steel plate and nut. It can be easily replaced with minimum down time. They offer long lasting service life under harsh service conditions.
Features ·
1.Carburized premium alloy steel ·
2.Harshest service condition ·
3.Easy replacement of insert with a minimum of down time ·
4.Long lasting service life
Mud Pump Valve Assembly Details:
Name of Parts | Service Life (hours) |
Valve | >600 |
Valve Seats | >600 |
Valve Nut | >1800 |
Valve Rubber | >300 |
Valve Spring | >600 |
Application Pumps:
EMSCO | F500, F800, F1000, FB1300, FB1600 |
GARDEN DENVER | PAH, TEE-5, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11 |
NATIONAL | JWS165/340, JWS400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160 |
OILWELL | A-560-PT, A-600-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT |
IDECO | T500, T800, T1000, T1300, T1600 |
F-SERIES (China Made) | F500, F800, F1000, F1300, F1600, F1600L, F1600HL |
3NB-SERIES (China Made) | 3NB-500, 3NB-800, 3NB-1000, 3NB-1300, 3NB-1600 |
They are available for these types as follow:

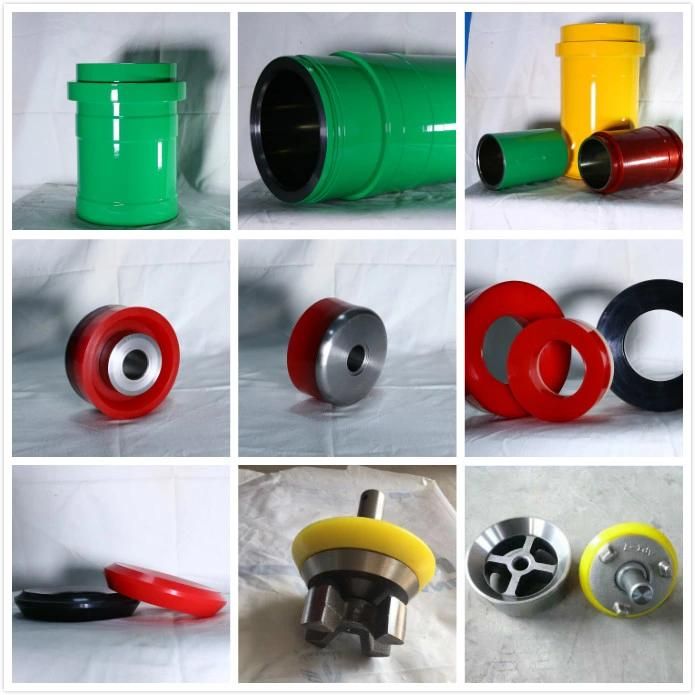

We produce all kinds of mud pump parts such as Crosshead, Crosshead pin, Crosshead extension rod, Cylinder cover, Cylinder cover flange, Cylinder liner flange, Cylinder head plug, Liner wear ring, Discharge filter screen, Piston draw rod, End cover, Stuffing box, Clamp assembly, Ejector, Spacer, Guide plate, Valve cover, Crankshaft, Pinion shaft, JA-3 Relief Valve, etc.
Our company also own pump accossories warehouse and product center for all type of HT300, HT400, HT600, 900, 1800, 2500 plunger pump with high quality and enough storage

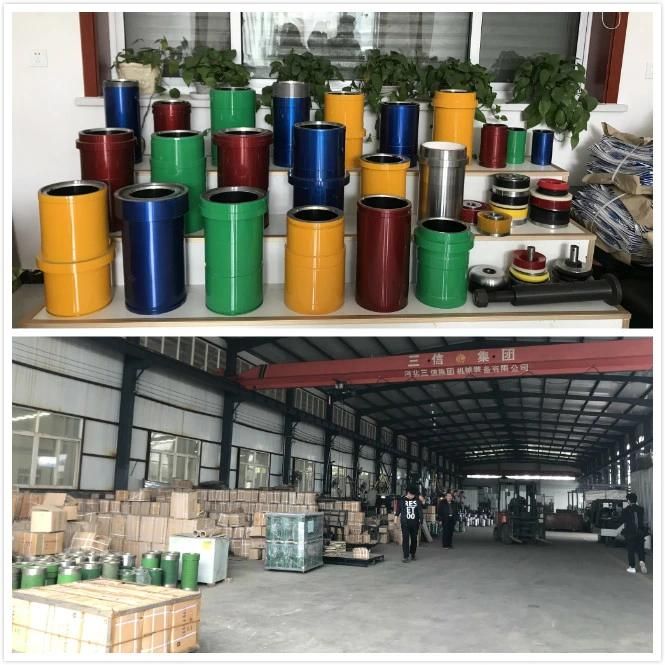

OUR FACTORY
