API 7K Drilling Mud Pumps and Mud Pump Spare Parts Valves
HEBEI XINHUAFA PETROLEUM MACHINERY CO., LTD.- Manufacturing Process：Forging
- Surface Treatment：Spray-Paint
- Operation Pressure：Vacuum
- Material：Cast Steel
- Cetification：API
- Application：Mud Pump Valves
Base Info
- Specifications：60 to 300mm
- Advantage：Durable
- Tensile Strength：>610MPa
- Name：Mud Pump Piston
- Package：Standard
- Port：Tianjin
- Model：F Series,3nb Series,Pz,Fb
- Theory：Centrifugal Pump
- API：6# 7# 8# 7V1 7V2
- Material Steel：20crmnti
- Seal：PU or NBR
- Hardness：HRC60
- Transport Package：Wooden Box and Sea Shipment
- Specification：standard
- Trademark：xinhuafa
- Origin：Cn
- HS Code：841391000
- Production Capacity：50000sets,Per Year
Description

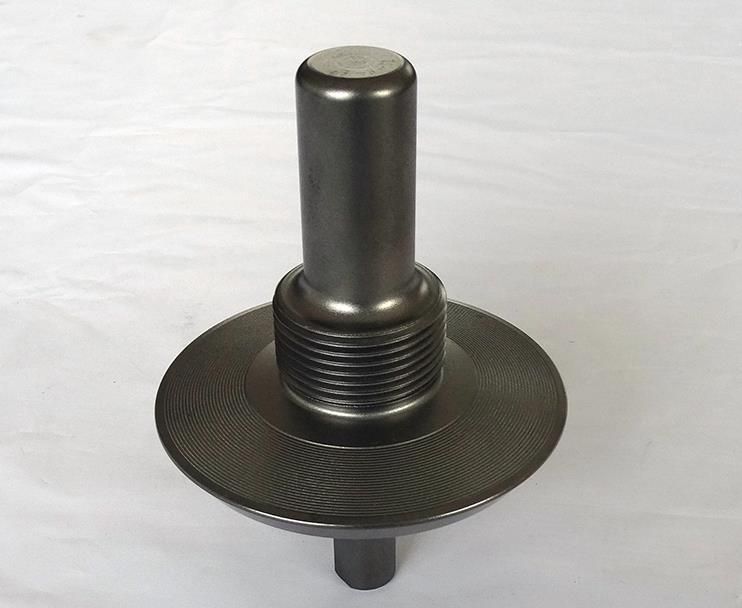

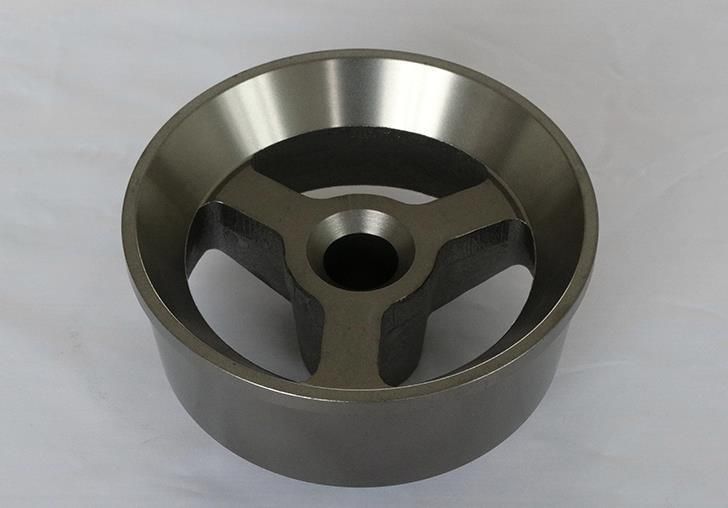

Mud Pump Parts Valve assembly/Valve body/Valve seat 1.The valve body and valve seat of valve assembly are made from high-quality knot steel treated with 20CrMnTi carburizing and quenching processes. 2.The surface hardness is greater than HRC 60. 3.The conical surface is ground finished to ensure a high requirement for roughness and geometric dimension. 4.The rubber sheet is made of polyurethane material which improves the service life of valve assembly, the operational use time is more than 300 hours. Mud Pump Fluid end Parts and Expendables We provide a full line of replacement parts for most popular mud pumps worldwide,Include but not limited below: ·F-350/500/800/1000/1300/1600/2200, FB-1300/1600 ·TEE, PAH, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11,PXL ·T-500/800/1000/1300/1600 ·W-440, W-446, W-1612, WH-2214 ·7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220 ·A-600-PT A-850-PT A-1100-PT A-1400-PT A-1700-PT Fluid End Module & Spare Parts .Fluid end module .Threaded ring .Lock cap .Cylinder head .Cylinder head plug .Valve cover .Valve guide .Liner retainer .Liner bushing .Liner clamp .Wear plate Fluid End Expendables ·Liner ·Liner gasket ·Piston ·Piston rubber ·Valve & Seat ·Valve spring ·Valve insert ·Piston rod ·Piston rod clamp Accessories & Tools ·Pulsation dampener ·Bladder ·Discharge block ·Pressure gauge ·Suction manifold ·Relief valve ·Discharge manifold
Our products can fit in with most popular brands of Mud Pump |
Features, Advantages and Benefits
The threaded retainer plate with knock-off lugs enables fast insert change-out.
The large bearing area on the valve promotes a long service life.
Various insert materials are available to meet standard and high-temperature drilling conditions.
Carbon-steel valve springs are standard, with a long-life, stainless-steel upgrade available.

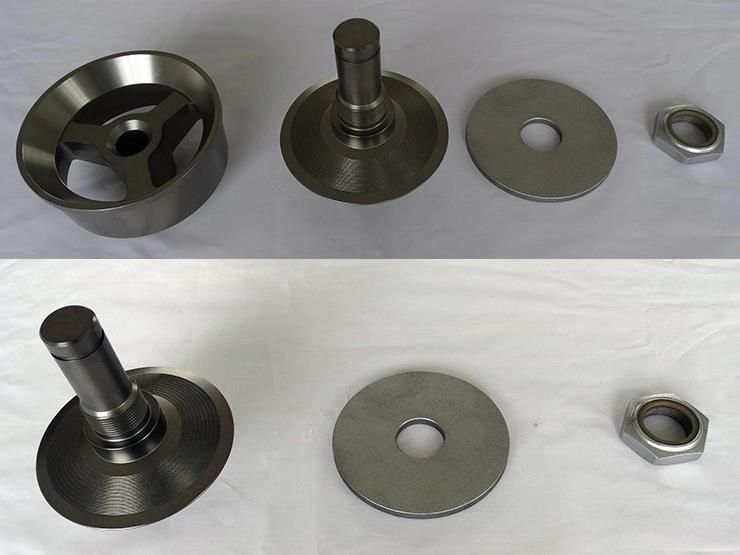

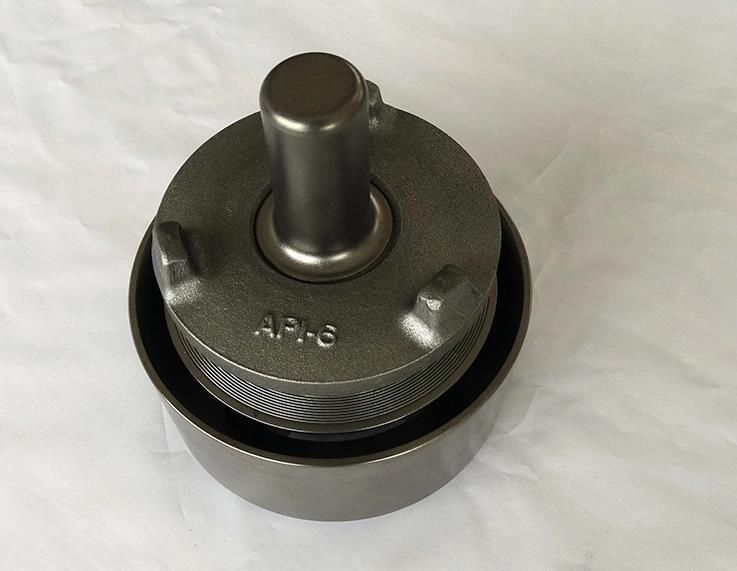

The key feature of the four-web, center-guided valve is the preloaded polyurethane insert secured with a threaded retainer plate with knock-off lugs for easy disassembly. This design enables drillers to change valve inserts quickly and minimizes downtime. The valve is best suited for low- to medium-pressure drilling operations because of the two-piece assembly of the valve body.
The center-guided design enables the valve flange to be supported under pressure loads by the top of the center-support webs in addition to the seating taper on the inside of the valve seat. This allows for a large bearing area for the valve that minimizes stress and promotes a long service life.
Our standard valve is offered with polyurethane inserts rated for 170° to 180°F (77° to 82°C) drilling-mud temperatures. We also offer a special high-temperature urethane compound as an option for high-temperature drilling conditions to 200°F (93°C) and higher.
Company profile
Hebel Xinhuafa Petroleum Machinery Co. LTD was established in 2006,with 5000m2 plant.The company focuses on R&D of mud pump fittings and several R&D results were horned with awards as well as patented for invention. The company is engaged in product design, manufacturing and service on all the quality oilfield replacement parts, including mud pump fluid end parts including Fluid end modules, liners, pistons, valves,&seats, extension rods, piston rods, valve covers etc.
The company holds a professional technical team and is equipped with advanced machineries,improving the technical skills and updating product quality,
Our products are certified by ISO9001 quality control. We supply products not only our oilfields company of domestic, but also dozens of countries all over the world, such as USA, Canada, Indonesia and Iran. With several years' persistence, we are widely accepted as a professional supplier of high quality mud pump cylinder liners and other parts in fluid end modules.
The information you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) sor Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
1. Our sales team will response for your question within 24 hours (Holidays Excluded)
2. Technical Support will be available in any time
3. Free replacement will provide once the failure confirmed caused by our product quality
