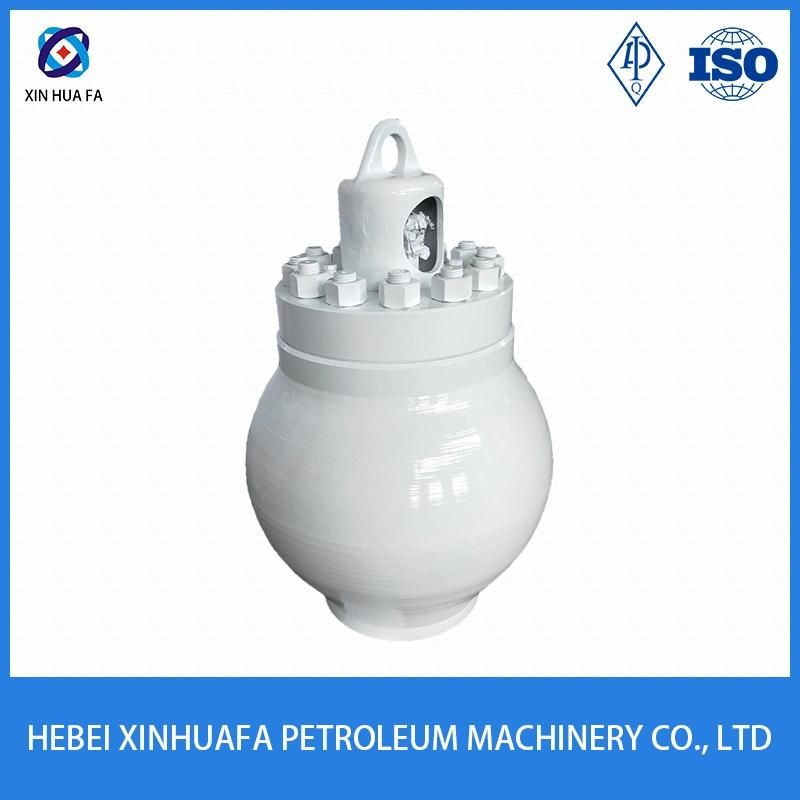

Kb45 Pulsation Dampener Assy K20 Kb75 Pulsation Dampener for Triplex Mud Pump
HEBEI XINHUAFA PETROLEUM MACHINERY CO., LTD.- Manufacturing Process：Casting&Forging
- Surface Treatment：Spray-Paint
- Operation Pressure：Vacuum
- Material：Alloy
- Name：Pulsation Dampener Bladder for Mud Pump
- Certification：ISO & API
Base Info
- Model：Kb-45, 5000 Psi,Kb-75, 5000 Psi
- Other Name：Bladder, Stabilizer, Stablizer Plate, Washer, Bolt
- Usage：NBR or Rubber
- Item：K-10,3000 Psi,K-10,5000 Psi,K-20, 5000 Psi,K-20,
- Pulsation Dampener：for Drilling Mud Pump
- Pressure：5000-7500psi
- Type：Kb45, Kb75, K10, K20 etc
- Thoery：Reciprocating Pump
- Power：Hydraulic
- Transport Package：Common Export Packing
- Specification：standard
- Trademark：xinhuafa
- Origin：Cn
- HS Code：84139100
- Production Capacity：50000sets,Per Year
Description
Type
emsco
F-350
F-500
F-650
F-800
F-1000
FA-1300
FB-1300
FA-1600
FB-1600
gardener denver
PZ-7
PZ-8
PZ-9
PZ-10
PZ-11
national
7-P-50
8-P-80
9-P-100
10-P-130
12-P-160
ideco
T-800
T-1000
T-1300
T-1600
oilwell
A-350
A-560
A-650
A-850
A-1100
A-1400
A-1700
china
3NB-350
3NB-500
3NB-800
3NB-1000
3NB-1300
3NB-1600
3NB-2200
F 1000 Gardener API 7K Pulsation Dampener- Mud Pump Spare Parts

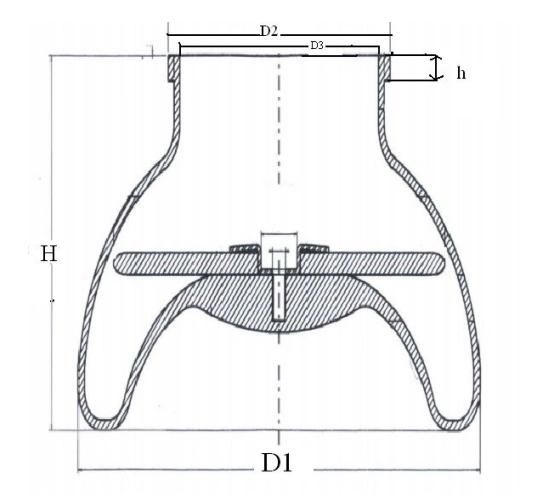

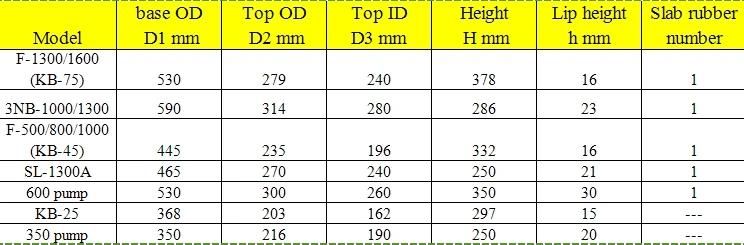

| Model | Bottom O/D mm | Upper O/D mm | Upper I/D mm | H mm | Lip Thickness mm |
| F1300/1600(KB-75) | 530 | 279 | 240 | 378 | 16 |
| 3NB-1000/1300(3NB) | 590 | 314 | 280 | 286 | 23 |
| F500/800/1000(KB-45) | 445 | 235 | 196 | 332 | 16 |
| SL-1300A | 465 | 270 | 240 | 250 | 21 |
| 600 | 530 | 300 | 260 | 350 | 30 |
| KB-25 | 368 | 203 | 162 | 297 | 15 |
| 350 | 350 | 216 | 190 | 250 | 20 |
Product introduction:
HNBR rubber bladder is composed of rubber pulsation bladder,rubber balance plate and pressure plate bolt, it can reduce the drilling pump pressure fluctuations of instantaneous displacement change;
Make the pump pressure smoothly, protect equipment from damage caused by severe vibration.
the product is also used as stabilizer and vibration absorber for air pump.
Filled with nitrogen in the air or inert gas, in the absence of them,air can replace.But oxygen or combustible gas is forbidden.
Inflation pressure is 20% ~ 30% of the maximum working pressure. The advanced filling pressure is 2.0-2.5 MPa.
Usage:
Mainly applicable to 25 to 35 Mpa drilling, to meet the needs of high pressure jet drilling.
Specification:
Above are our regular specification, any customizing request is also welcome.
Mud Pump Model:
Bomco: F-500, F-800, F-1000,F-1300, F-1600,F-1600HL, F-2200HL
Emsco: F-500, F-800, F-1000, FB-1300, FB-1600, FA-1600, FA-1300, FC-1600, FD-1600 D-300/500, D-375, D-700
National: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, JWS-340, JWS-400
Oilwell: A-850-PT, A-1100-PT, A-1400-PT,A-1700-PT Ideco: T-500, T-800, T-1000, T-1300, T-1600
Gardner Denver: PZ-7, PZ-8,PZ-9,PZ-10, PZ-11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000
Russian Pumps:UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
WEATHERFORD/Ellis Williams: E-447, E-2200, W446, W440
Drillmec: 9T1000, 12T1600, 7TS600,10D2C, 8D1S
Romania: 3PN-1000, 3PN-1600, 3PN-1300, 3PN-2000
OPI: 700-HDL | 1000-HDL
package and shipping

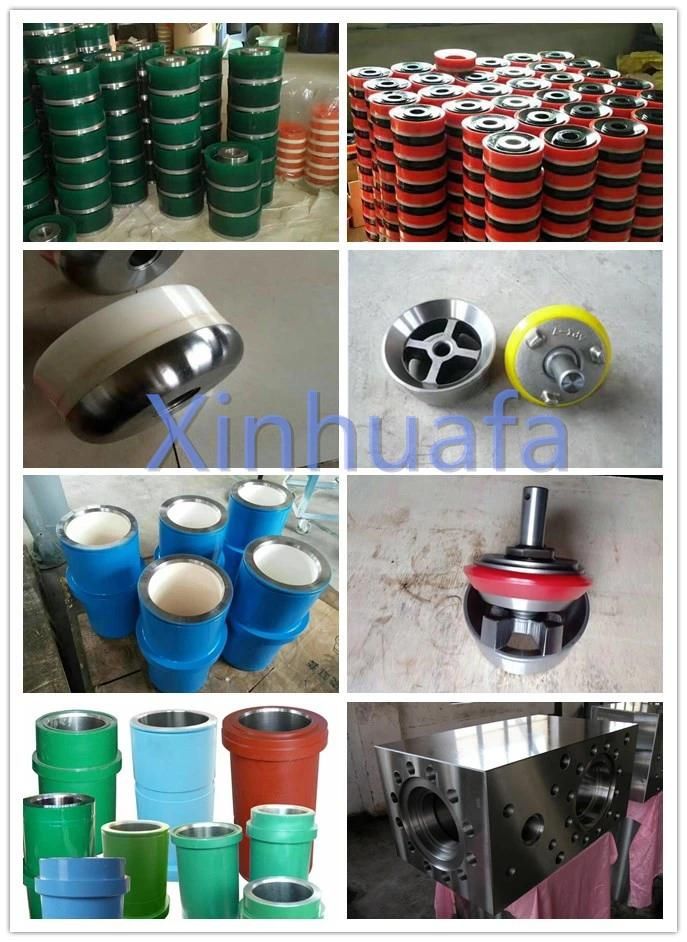

Other parts related:
liners, pistons, valves & seats,piston rods, rod clamps, extension rods, all
fluid end seals and gaskets, fluid cylinder modules and accessories, as well as power end
components, such as crankshaft assemblies, gear sets, connecting rods, crosshead, and bearings.
