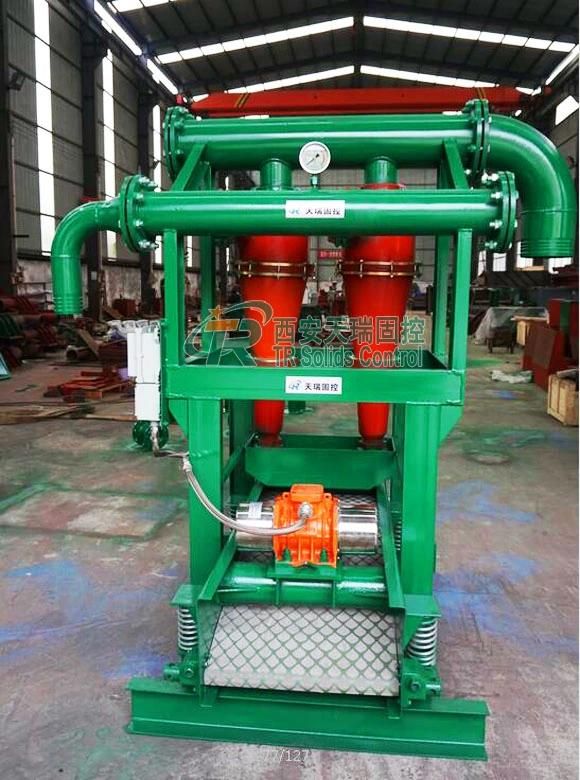

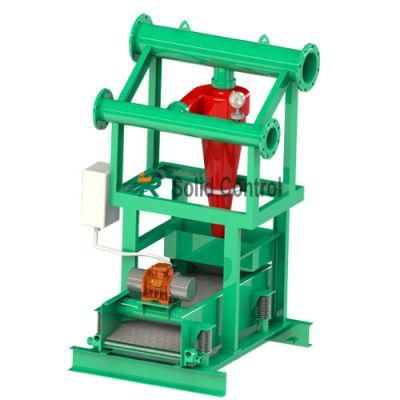

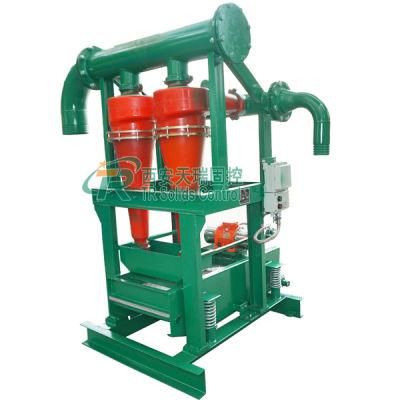

• Model NO.：TRCS250*1S
• Hydrocyclone Specs：10"
• Hydrocyclone Qty：2PCS
• Working Pressure：0.25-0.4MPa
• Inlet Diameter：Dn150mm
• Outlet Diameter：Dn200mm
• Separation Point：45um-75um
• Bottom Shaker：Trts60
• Weight：670kg
• Transport Package：Pallet or Wooden Case
• Specification：1510*1360*2250mm
• Trademark：TR Solids Control
• Origin：Xi′an, China
• HS Code：84748090
• Production Capacity：20 PCS , Month

ModelTRCS200-1S/2STRCS250-1S/2STRCS250-3STRCS300-1S/2SCapacity60m³/120m³/h100m³/200m³/h300m³/h120m³/240m³/hCyclone Specs8"10"10"12"Cyclone Qty1nos/2nos1nos/2nos3nos1nos/2nosWorking Pressure0.25-0.4MpaInlet SizeDN125mmDN150mmDN150mmDN150mmOutlet SizeDN150mmDN200mmDN200mmDN200mmSeparation Point45μm -75μmBottom ShakerTRTS60TRTS60TRZS752TRZS752Dimension1510*1160*2000mm1510*1360*2250mm1835*1230*1810mm1835*1230*1810mmWeight570kg/620kg670kg/760kg1300kg1380kgRemarkAll desander could be customized without bottom shaker.

Application

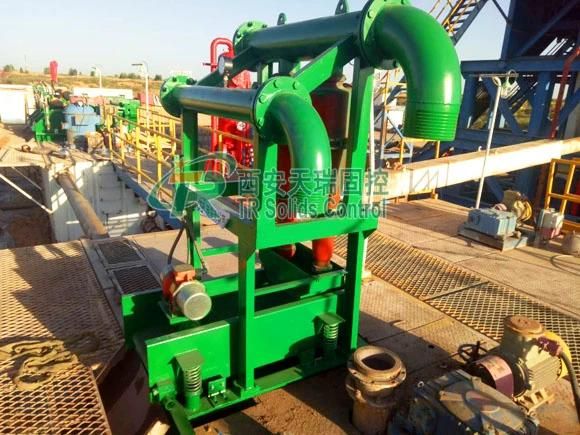

TR Mud Desander is widely used in city bored piling, oil & gas drilling, tunneling construction, Drilling Waste Management, trenchless HDD, environment protection, Oil Mud Seperation, mining, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Water Drilling etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
