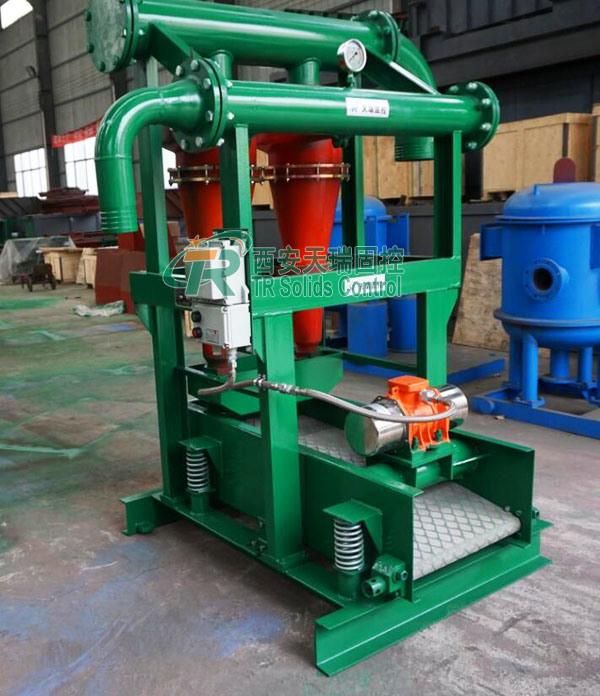

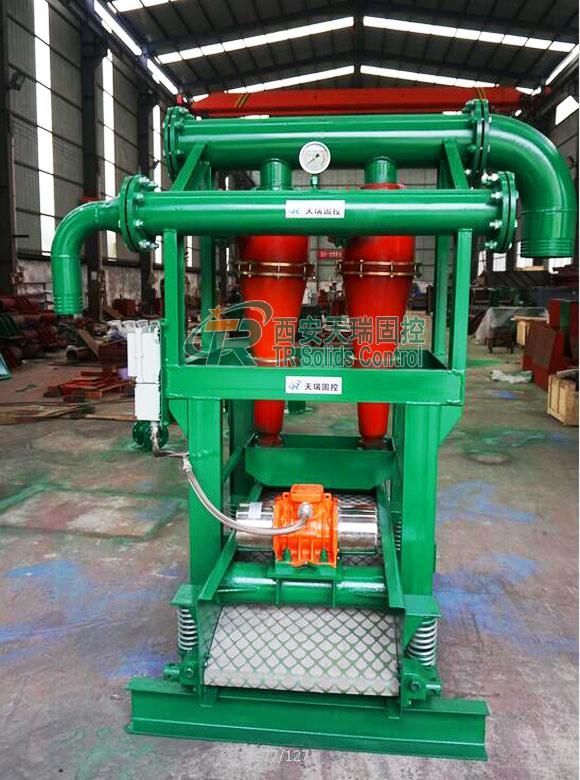

Trenchless HDD Hydrocyclone Desander Unit for Mud Slurry Recycling

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Desander
  • Capacity：120m3,H

Base Info

  • Model NO.：TRCS300-1S
  • Hydrocyclone Specs：12"
  • Hydrocyclone Qty：1PCS
  • Working Pressure：0.25-0.4MPa
  • Inlet Diameter：Dn150mm
  • Outlet Diameter：Dn200mm
  • Separation Point：45um-75um
  • Bottom Shaker：Trzs752
  • Weight：1380kg
  • Transport Package：Pallet or Wooden Case
  • Specification：1835*1230*1810mm
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：20 PCS , Month

Description

ModelTRCS200-1S/2STRCS250-1S/2STRCS250-3STRCS300-1S/2SCapacity60m3/120m3/h100m3/200m3/h300m3/h120m3/240m3/hCyclone Specs8"10"10"12"Cyclone Qty1nos/2nos1nos/2nos3nos1nos/2nosWorking Pressure0.25-0.4MpaInlet SizeDN125mmDN150mmDN150mmDN150mmOutlet SizeDN150mmDN200mmDN200mmDN200mmSeparation Point45μm -75μmBottom ShakerTRTS60TRTS60TRZS752TRZS752Dimension1510*1160*2000mm1510*1360*2250mm1835*1230*1810mm1835*1230*1810mmWeight570kg/620kg670kg/760kg1300kg1380kgRemarkAll desander could be customized without bottom shaker.



Trenchless HDD Hydrocyclone Desander Unit for Mud Slurry RecyclingTrenchless HDD Hydrocyclone Desander Unit for Mud Slurry Recycling
Trenchless HDD Hydrocyclone Desander Unit for Mud Slurry RecyclingTrenchless HDD Hydrocyclone Desander Unit for Mud Slurry Recycling

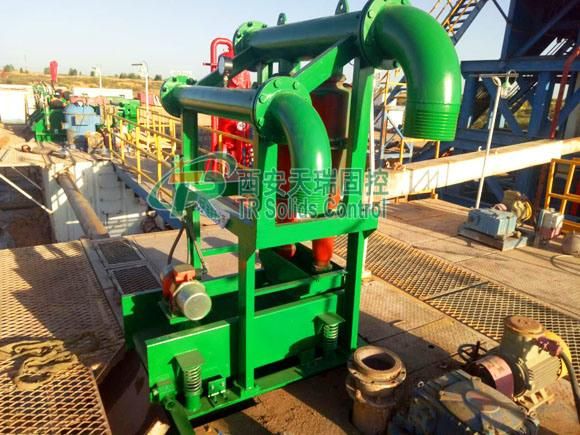

Application

TRCS Series Mud Desander is widely used in oil & gas drilling, Drilling Waste Management, city bored piling, tunneling construction, trenchless HDD, mining, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Water Drilling etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
