• Specifications：60 to 300mm
• Advantage：Durable
• Tensile Strength：>610MPa
• Name：Mud Pump Piston
• Package：Standard
• MOQ：3
• Port：Tianjin
• Model：F Series,3nb Series,etc
• Theory：Centrifugal Pump
• Transport Package：Wooden Box and Sea Shipment
• Specification：standard
• Trademark：xinhuafa
• Origin：Cn
• HS Code：841391000
• Production Capacity：50000sets,Per Year

 product name

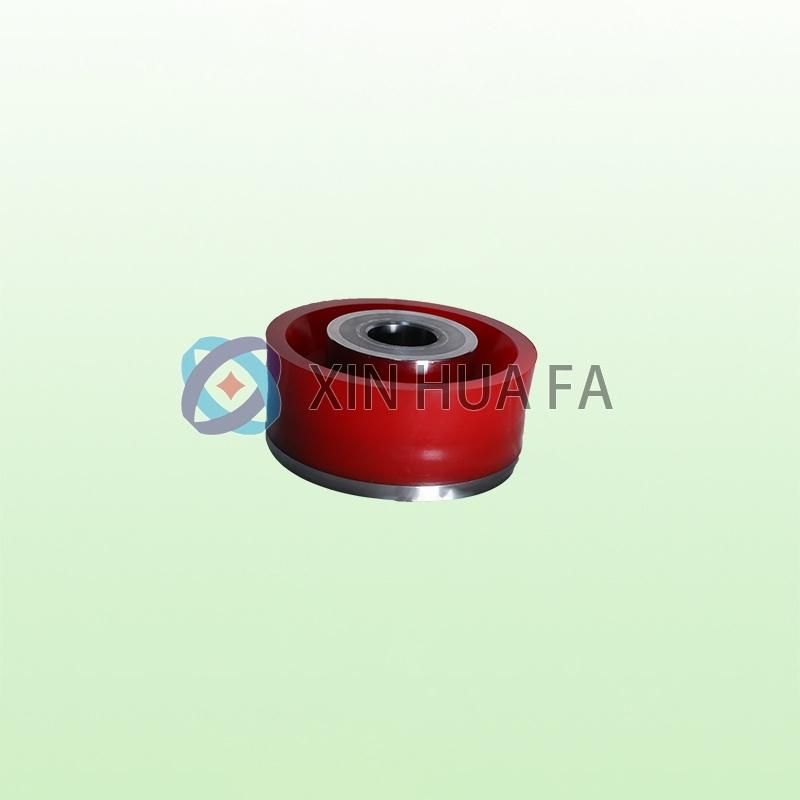

Urethane bonded piston

 MaterialNBR, Urethane rubber Length of use400-600h portTianjin applicationwater-based drilling fluids

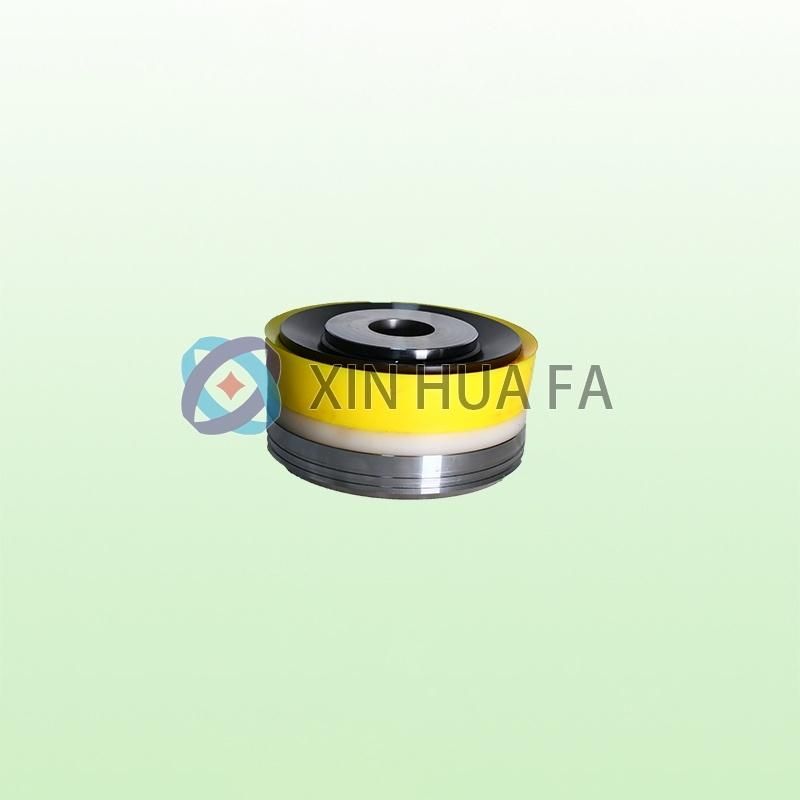

Mud Pump Piston

1.Our mud pump piston Assembly are forged of quality alloy steel.

2.They are made via heat treatment.

3.The mud pump piston Assembly are made of special chemigum,

polyurethane and so on.

4.They have good operating effects and long service life.

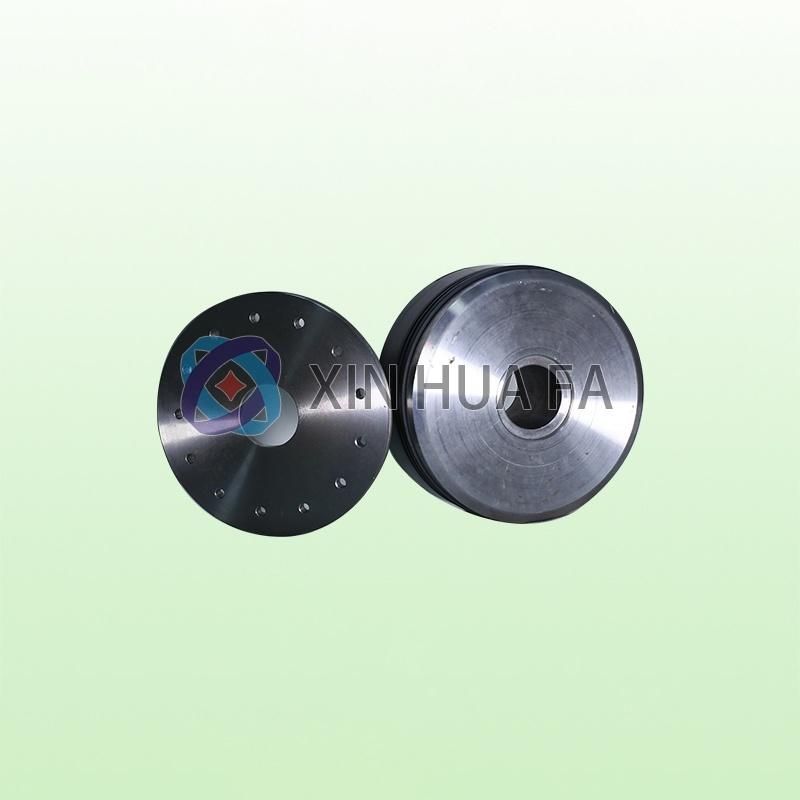

Mud Pump Piston  Assembly are made from 40Cr forgeing steel, which have been processed by heat treatment. The piston rubber are made from special acryonitrile - butadiene rubber, it has superior performance at oil resistance, heat resistance,water resistence.The bottom adapt fiber fabric  fabric to strengthen tensile strength, high wear resistence and extend service life. Our products are highly complying with API standard, it keep good performance in various conditions, and it is interchangeable with other API standard piston, and easy to fit out and change.

Product Parameters

Russian pump	UNBT950,UNB600,8T650,UNBT 1180L,NBT600,NBT300ect.
BOMCO/Emsco/HongHua	FB1300/1600, F1300/1600, F800/1000, F500 & some duplex pumps.
Gardener denver	PZ 7, PZ 8/9, PZ 10/11, KF-FXK, FY-FXD, FD-FXX, FG-FXG, FQ-FXQ, FF-FXP, FG-GXG.
National	7P50, 8P80, 9P100, 10P130, 12P160, 14P220, JWS165, JWS340/400, C250/350, K700, K500, K380.
Oilwell	A560/600PT, A850/1100PT, A1400/1700PT, 214P, 810P.
Ideco	T500, T800/1000, T1300/1600.
Wirth	TPK1000, TPK1600, TPK2000/2200.
Weatherford	MP-5,MP-8,MP-10,MP-13,MP-16

Features, Advantages and Benefits:

This piston is the best choice for oil-based and synthetic drilling fluids.

The piston is bonded to the hub for optimal strength and extrusion resistance.

The improved seal design centers the piston and promotes longer piston life with reduced liner wear.

The cut-back hub protects the liner from damage.

The dual-durometer elastomeric compound resists extrusion while ensuring a tight seal and improved wiping action.

The piston comes complete with a hub O-ring and sleeve.


Company profile

Hebel Xinhuafa Petroleum Machinery Co. LTD was established in 2006,with 5000m2 plant.The company focuses on R&D of mud pump fittings and several R&D results were horned with awards as well as patented for invention. The company is engaged in product design, manufacturing and service on all the quality oilfield replacement parts, including mud pump fluid end parts including Fluid end modules, liners, pistons, valves,&seats, extension rods, piston rods, valve covers etc.

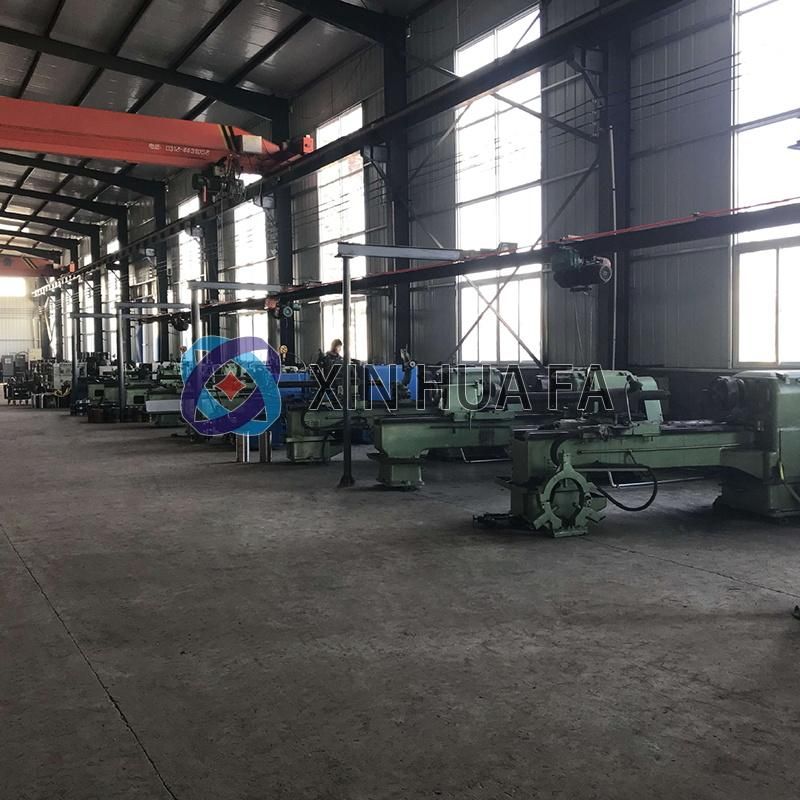

The company holds a professional technical team and is equipped with advanced machineries,improving the technical skills and updating product quality,
Our products are certified by ISO9001 quality control. We supply products not only our oilfields company of domestic, but also dozens of countries all over the world, such as USA, Canada, Indonesia and Iran. With several years' persistence, we are widely accepted as a professional supplier of high quality mud pump cylinder liners and other parts in fluid end modules.








If interested,please contact me:
