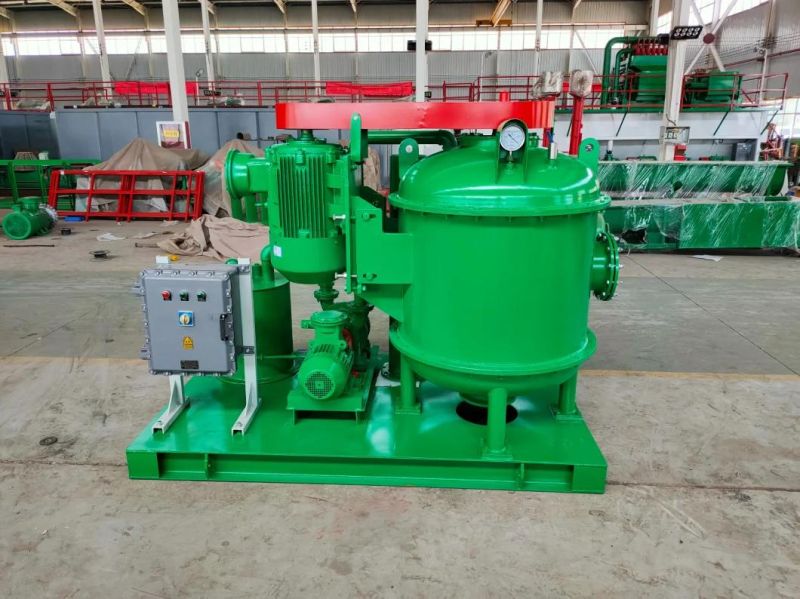

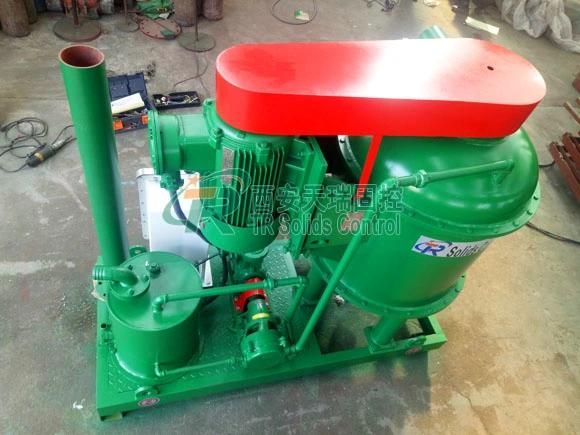

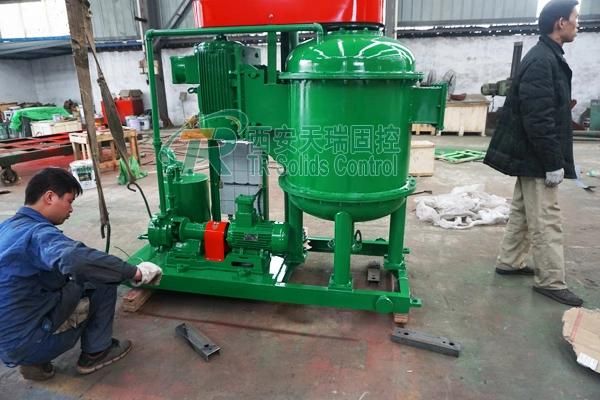

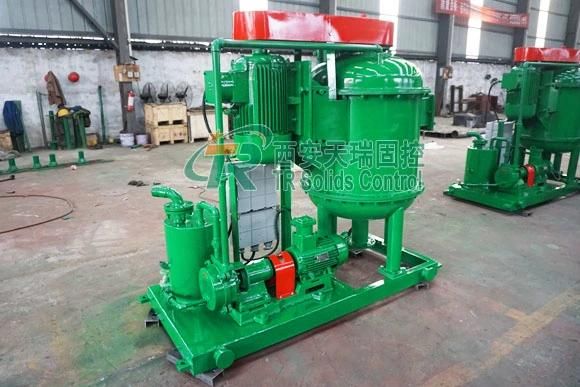

360m³ /H High Capacity Vacuum Degasser with API ISO9001 Certification

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Vacuum
  • Material：Stainless Steel
  • Type：Vacuum Degasser
  • Body Diameter：1000mm

Base Info

  • Model NO.：TRZCQ360
  • Capacity/Flow Rate：360m3,H
  • Vacuum Degree：-0.03~-0.045MPa
  • Transmission：1.72
  • Degassing Efficiency：≥95%
  • Main Power：37kw
  • Vacuum Pump Power：7.5kw
  • Impeller Speed：880r,Min
  • Ex Standard：Exd II Bt 4 , Iecex , a-Tex
  • Weight：1800kg
  • Transport Package：Iron or Bare Package
  • Specification：2400*1500*1850mm
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：30 Sets,Month

Description

ModelTRZCQ240TRZCQ270TRZCQ300TRZCQ360Body Diameter700mm800mm900mm1000mmCapacity240 m³/h270 m³/h300 m³/h360 m³/hVacuum Degree-0.030-0.045Mpa-0.030-0.050Mpa-0.030-0.045Mpa-0.030-0.045MpaTransmission Ratio1.681.681.681.72Degassing Efficiency≥95%≥95%≥95%≥95%Motor Power15kW22kW30kW37KwVacuum Pump Power2.2kW3kW4kW7.5kWImpeller Speed860r/min870r/min876r/min880r/minDimension1750×860×1500mm2000×1000×1670mm2250×1330×1650mm2400×1500×1850mmWeight1100kg1350kg1650kg1800kg



360m³ /H High Capacity Vacuum Degasser with API ISO9001 Certification
360m³ /H High Capacity Vacuum Degasser with API ISO9001 Certification360m³ /H High Capacity Vacuum Degasser with API ISO9001 Certification360m³ /H High Capacity Vacuum Degasser with API ISO9001 Certification

360m³ /H High Capacity Vacuum Degasser with API ISO9001 Certification

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.



Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
