Hanger Used in Oilfield

Wise Channel Industries Limited

Certification：ISO 9001:2008, API Certificate
Power Source：Outer Source
Applicable Medium：Mud, Natural Gas, Crude Oil
Material：Alloy
Max. Od：105~148mm
Performance Requirement：Pr1, Pr2

Base Info

Model NO.：XGQ
Production Specification Level：Psl1~Psl4
Temp.Class：120~150 Degree C.
Transport Package：Wooden Case
Origin：Jiangsu China
HS Code：84304900
Production Capacity：1000units Per Year

Description

ItemOuter Diameter(mm)Working Temp.Working PressureHanging load (KN)ApplicationData105
114
136
148 120ºC
150ºC20Mpa
50Mpa40
60
80Releasing tool, water plugging

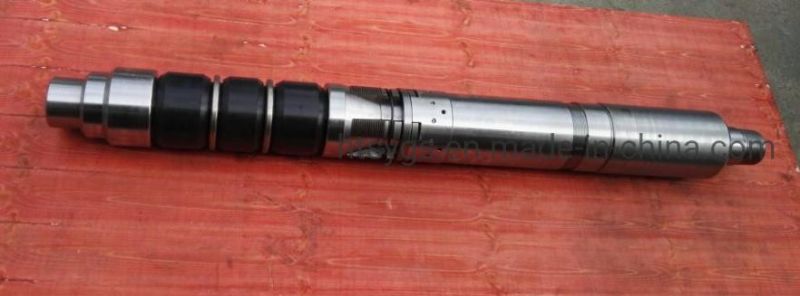

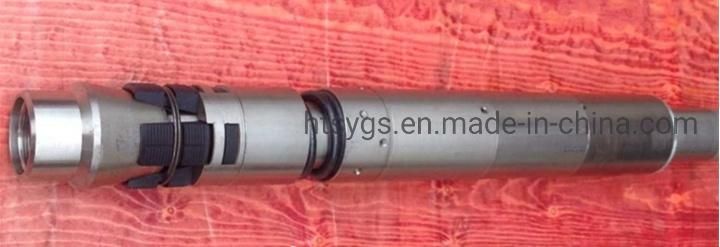

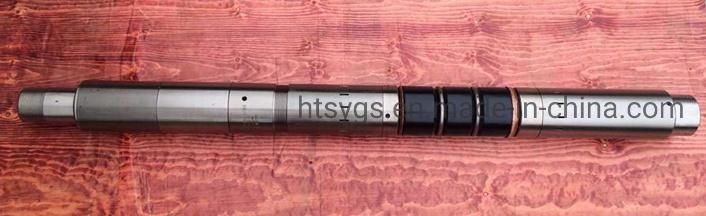

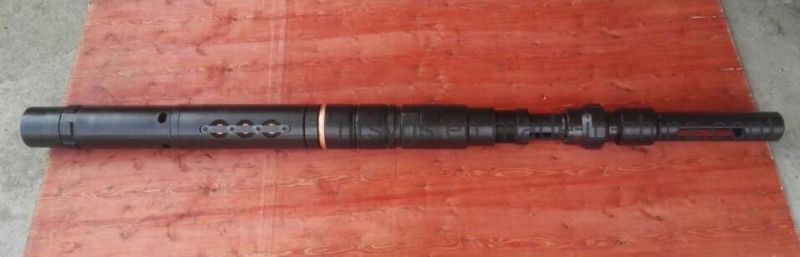

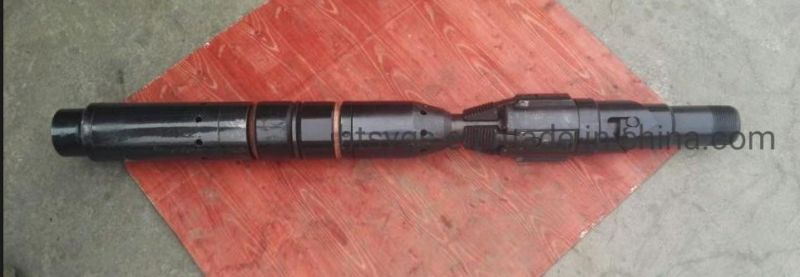

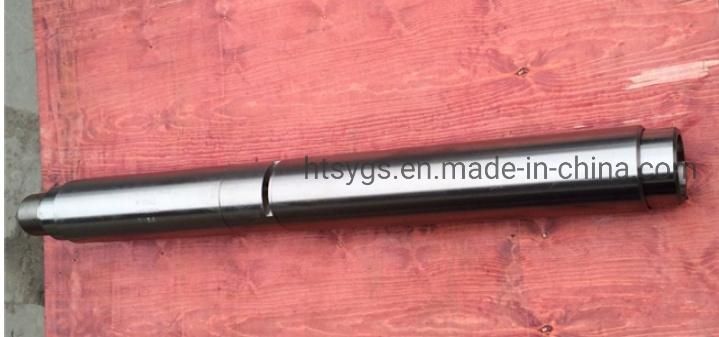

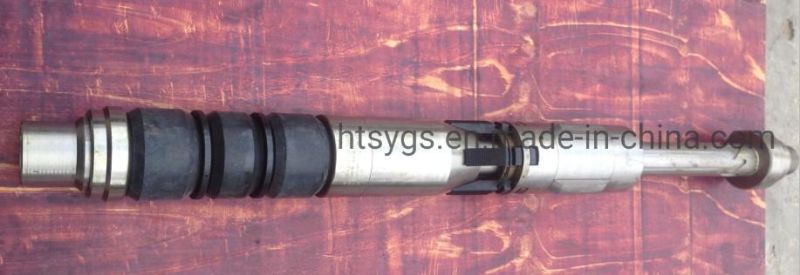

Hanger Used in Oilfield

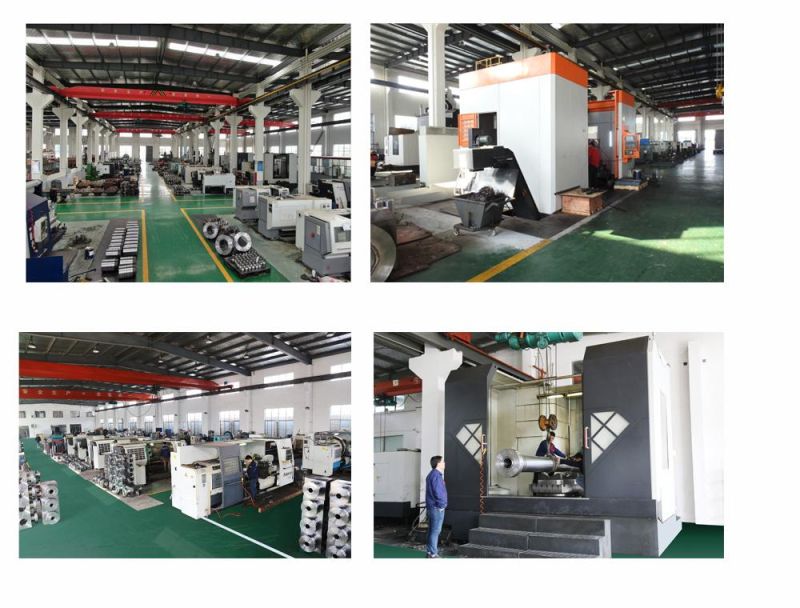

Our production line
Hanger Used in Oilfield

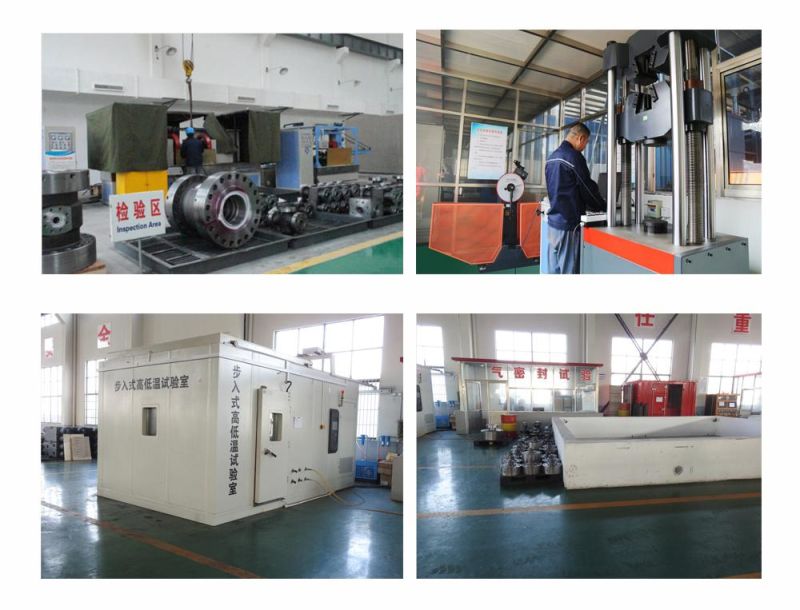

Some Test facilities
