Float Valve (Flapper Type Check Valve) Valve Sub API Standard
Dongying On-tech Equipment Co., Ltd- After-sales Service：Online Services
- Warranty：6 Months
- Certification：API
- Power Source：Hydraulic
- Operation Pressure：High Pressure
- Applicable Medium：Mud, Water, Natural Gas, Crude Oil
Base Info
- Model NO.：All sizes
- Structure：Vertical
- Material：Alloy
- Type：G, F, Flapper, Plunger
- Structure Type：Needle
- Surface：Xylan Coating or Nickel Plated
- Connection：Reg, Nc, If, etc.
- Transport Package：Standard Export Package
- Specification：1R to 6R
- Trademark：On-tech
- Origin：China
- HS Code：84314310
- Production Capacity：1000PCS,Months
Description
Overview
Product DescriptionD R L T'' Model F Model G Diameter of Valve (D Plus 1/32) Length of Valve Diameter ID ID Diameter Recess for Valve Of Recess for Baffle Plate Of Valve Of Valve 1R 1-21/32 1-11/16 5-7/8 1-5/16 1 N/A 1F-2R 1-29/32 1-15/16 6-1/4 1-1/2 1-1/4 1 2F-3R 2-13/32 2-7/16 6-1/2 1-29/32 1-9/16 1-1/4 3F 2-13/16 2-27/32 10 2-7/16 1-7/8 1-5/8 3-1/2-1F 3-1/8 3-5/32 10 2-11/16 1-7/8 1-5/8 4R 3-15/32 3-5/32 8-5/16 2-15/16 2-5/16 1-31/32 5F 3-21/32 3-1/2 12 3-1/4 2-1/2 2-3/16 5R 3-7/8 3-29/32 9-3/4 3-3/8 2-3/4 2-1/4 5F-6R 4-25/32 4-13/16 11-3/4 4-9/32 3-1/4 2-7/8 6F 5-11/16 5-23/32 14-5/8 5-3/16 4-1/8 N/A

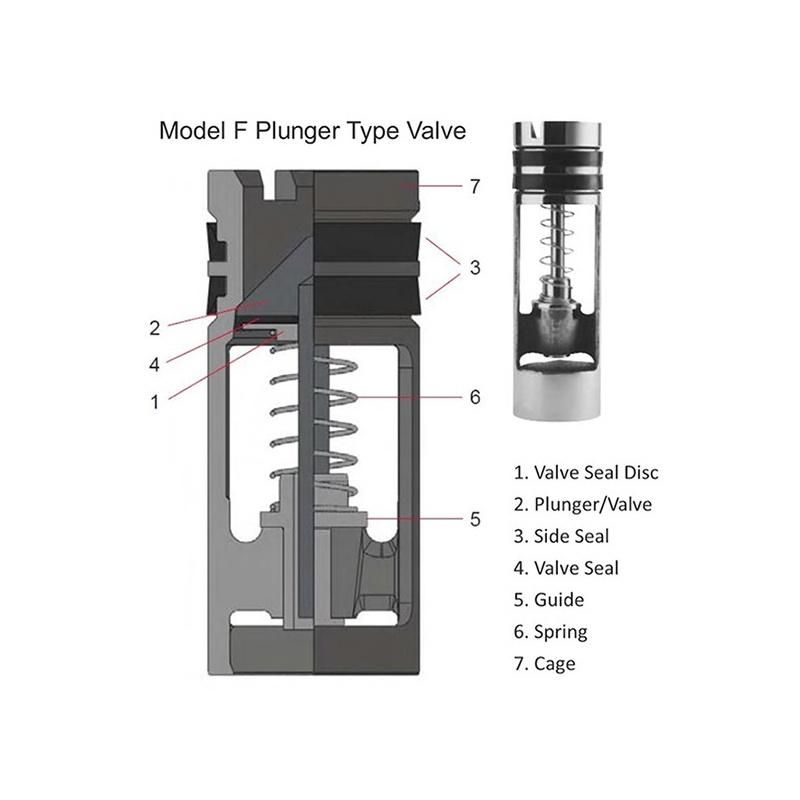

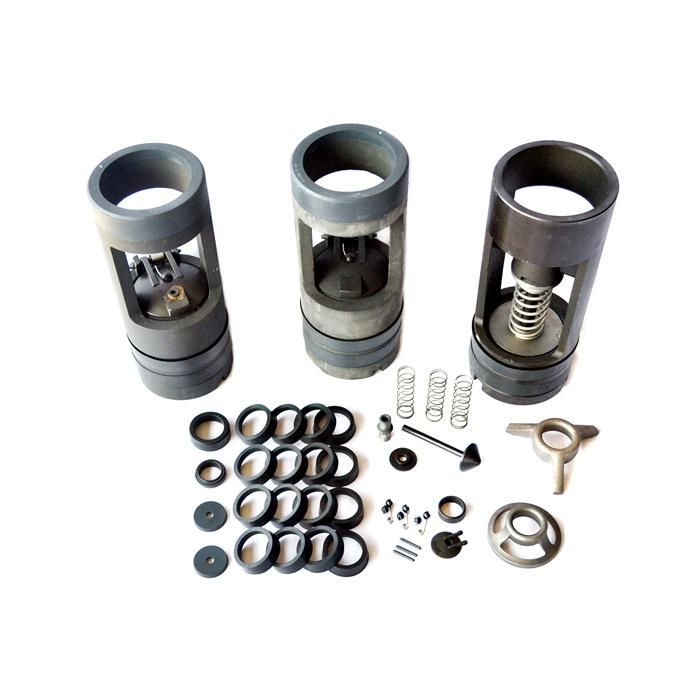

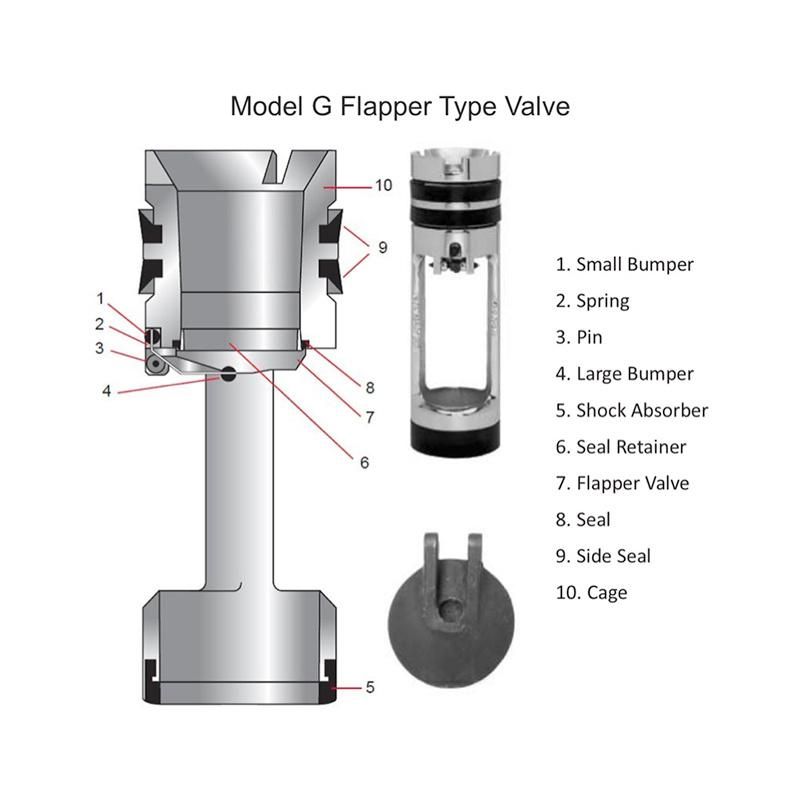

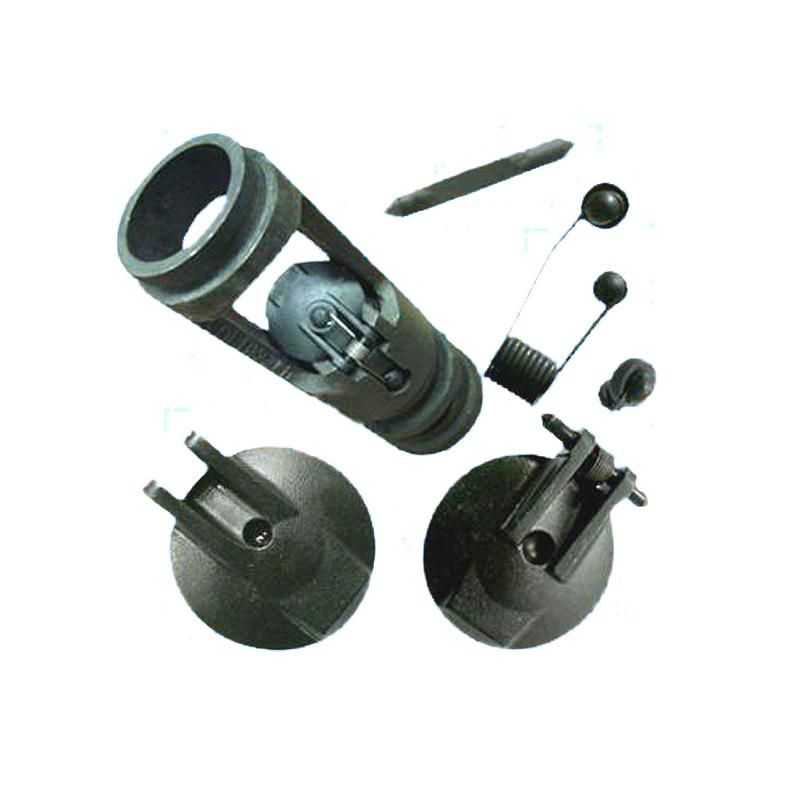

Detailed Photos
