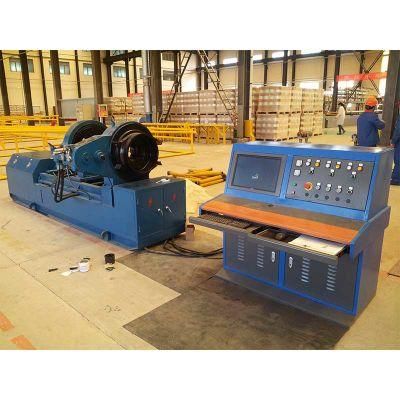

Dynj220-30 Type 360 Degree Continuous Rotary Hydraulic Dismounting Bracket

Huludao City Liaoxi Petroleum Machine and Tools Factory
  • Scope of Application：Φ73-Φ216 mm
  • Rated Torque：30kn.M
  • Usage：Screw-on and Screw-off Machinery
  • Transport Package：Wooden Case
  • Origin：China

Base Info

  • Model NO.：DYNJ220-30
  • HS Code：8431431000
  • Production Capacity：6 Sets,Month

Description

Configuration NameTechnical SpecificationsQTYUnitPackingRemarksConsoleComputer torque recorder, saving records, printing curve report1
Set
Wooden cases Hydraulic Power SystemMotor:power 22KW speed1460r/min, Required power:380V,frequency for:50HZ1SetWooden casesHydraulic pump type: Variable plunger pumpTurnbuckle mechanism maximum working pressure: 14 mpaOil tank capacity:500LMake up/ breat out host machineTailstockPipe dia.:Φ73-216mm 1SetWooden casesWalking speed :adjustableThe clamping accuracy: ≤ 1.5 mm
spinning wrenchPipe dia.:Φ73-216mm1
SetMake-up torque range:0.1-30KN.mBreak-out torque range:0.1-30KN.mTurnbuckle Angle: 360 hovering at any positionThe clamping accuracy: ≤ 1.5 mmBaseLength:3.5m1Set
