Petroleum Equipment & Machinery

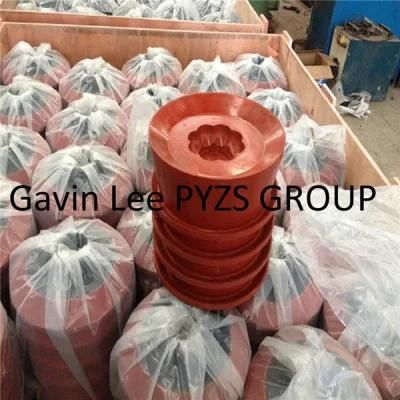

Top Cementing Plug for 13 3/8"Csg. PDC Drillable

Puyang Zhongshi Group Co., Ltd.
  • Certification:ISO
  • Material:Rubber
  • Type:Petroleum Drilling Tool & Accessory
  • Use:Oil Well Cementation
  • Sample Time:8 Days
  • Size:13 3,8"

Base Info

  • Model NO.:ZST13 3,8"
  • Color:Red, Black, Orange or Others
  • Working Temperature:-30oc to 150oc
  • Working Pressure:≥15MP
  • Burst Pressure:1MP-2MP
  • HRC:75-95
  • Usage:Oil (Gas) Production Machinery, Oil and Gas Processing Machinery, Well Drilling Machinery, Offshore Oil and Gas Field Exploitation Machinery, Oil and Gas Transportation Machinery
  • Transport Package:Standard Export Packaging, Wooden Case
  • Specification:API
  • Trademark:PYZS
  • Origin:China
  • HS Code:4016999090
  • Production Capacity:200 Set Per Month

Description

Type SizesWorking TemperatureWorking PressureBurst PressureHardnessTop Plug & Bottom Plug4 1/2", 5 1/2", 6 5/8", 7"         8 5/8", 9 5/8"          Standard/Non rotating-30ºC to 150ºC≥15MP1MP-2MP75-9513-3/8", 20"            Standard/Non rotating-30ºC to 150ºC≥10MP1MP-2MP75-95

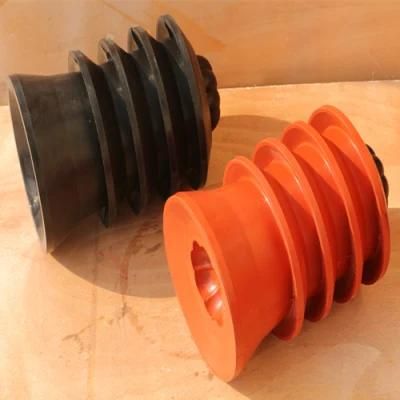

TOP CEMENTING PLUG FOR 13 3/8"CSG. PDC DRILLABLE
Model Size (INCH)Weight of Top Plug (KG)Weight of Bottom Plug (KG)
5-1/2" 3.5 3.5
6-5/8" 4.2 4.2
7" 5 5
8-5/8" 8.5 8.5
9-5/8" 9.5 9.5
10-3/4" 17 17
 13-3/8" 24 24
