The Most Popular Casing Float Shoe and Float Collar From China

Puyang Zhongshi Group Co., Ltd.
  • Certification:ISO 9001:2000, ISO 9001:2008, API
  • Surface Treatment:Spray-Paint
  • Material:Cast Steel
  • Type:Floating Hoop Floating Shoe
  • Origin:China

Base Info

    Description

    Product Description

    1) Types Available: Single valve and double valve are available;

    Spring structure valve and ball strucuture valve are available;

    Insert type and normal type are available.

    Non-rotating type and normal type are available.

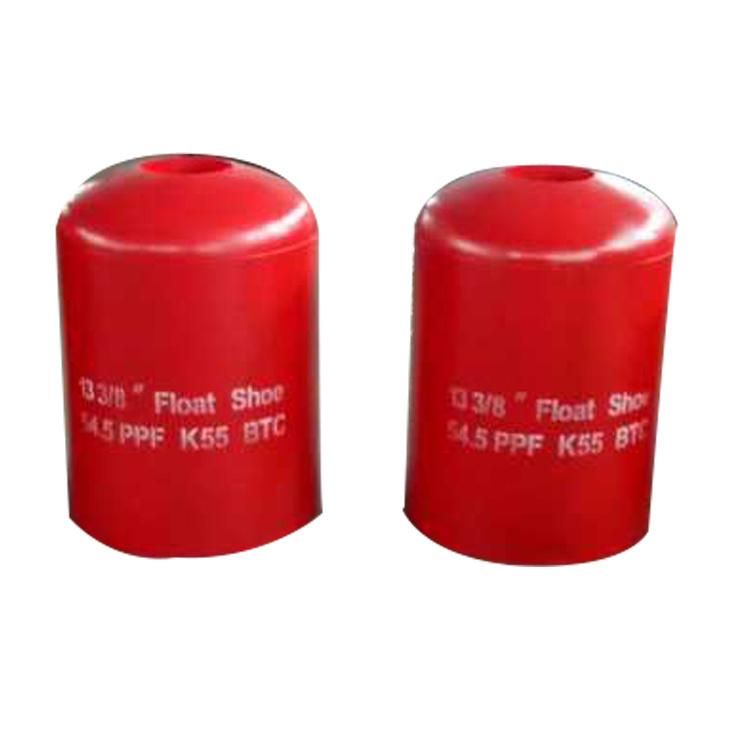

    2) Product Name: Premium Thread Connection Float Collar Float Shoe

    3) API and ISO certified

    4) Specifications: 4''---20''. More special sizes or combination are available as requested.

    5) Connections Type: Premium

    6) Application

    Float Collar Float Shoe serves as the backbone of casing equipment used during primary cementing operations. It guides the casing to total depth and prevents contaminated mud from entering the casing. Also it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures greater accuracy of cement slurry displacement.

    7) Features of Premium Thread Connection Float Collar Float Shoe:

    a. For float shoe, the rounded nose profile helps guide the casing string.

    b. The valve is made with phenolic material and molded with high strength concrete. Both of the valve and concrete are easily drillable with PDC or rock bits.

    c. High strength design ensure excellent performance for flow endurance and back pressure holding.

    d. Saves considerable running-in time with automatically fill up.

    e. For non-rotating float collar and shoe, the special non-rotating groove design ensures corresponding cementing plugs drilled out quickly.
