Oil Downhole Tools Slickline Wireline Tubing Broach

Xi'an Boban Oil Tools Co., Ltd.
  • After-sales Service：24,7
  • Warranty：12 Months
  • Manufacturing Process：CNC Milling
  • Surface Treatment：Phosphating
  • Operation Pressure：N,a
  • Material：Cast Steel

Base Info

  • Model NO.：Boban
  • for Wire Size：0.108", 0.125"
  • Connection：Un,Qls,Hdqrj
  • Size：1.5"~5"
  • Transport Package：Wooden Case
  • Specification：1.25"~2.5"
  • Trademark：BOBAN & OEM
  • Origin：China
  • HS Code：8431431000
  • Production Capacity：30 PCS Per Month

Description

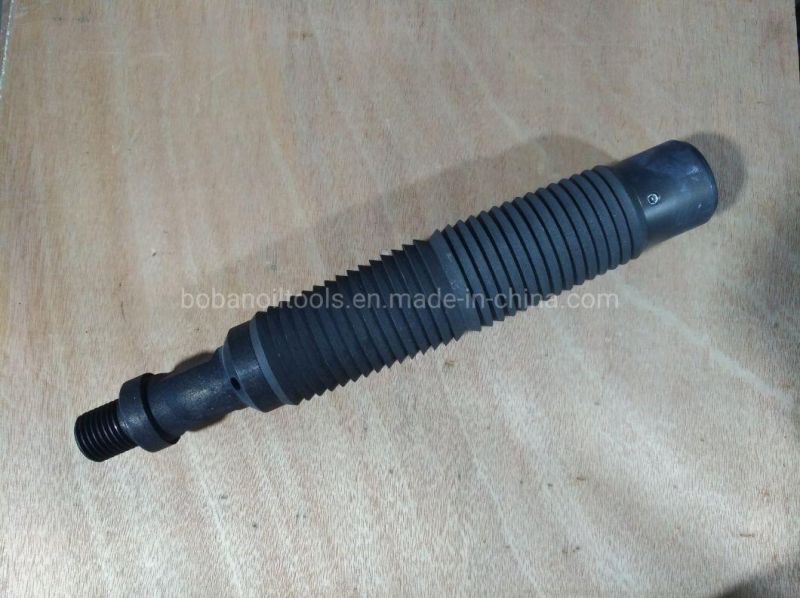

Oil Downhole Tools Slickline Wireline Tubing BroachTubing broach is composed of the body, scraper and pressing cap, in which, the pressing cap and body are supported with nail after being connected.

There are some gas vents on the body to discharge gas or liquid so as to prevent any end from shutting off pressure to cause difficult use or accidents.

The scraper is tapered whose both ends are small and middle is large. The hardness of blade reaches 47~52HRC after full quenching and tempering. The scraper can jar downward and upward.
II. General Technical Parameters

ODFishing NeckConnection
1.25"-1.5"1.187"15/16-10UN
1.5"-2"1.375"15/16-10UN
2"-2.5"1.375"15/16-10UN
2.5"-3"1.75"1-1/16-10UN
3"-4"1.75"1-1/16-10UN
4"-5"2.313"1-9/16-10UN

 Note. Other sizes are available upon request.
