• Model NO.：RLK50
• Type：Drilling Fluid Shale Shaker
• Trenchless：Drilling Fluid Equipment
• HDD：Mud Cleaner
• Transport Package：Wooden Box
• Specification：220GPM
• Trademark：RLK
• Origin：Made in China
• HS Code：8474100000
• Production Capacity：60

Specification
Function,,,
The facility separate drilling fluid and clean mud only. Inlet connect  pre-treat pipeline of slurry, connect outlet to storage tank.ModelRLKJC50RLKJC70
Capacity50m³/h
(220GPM)70m³/h
(308GPM)
Total system power12.5Kw16.5Kw
HydrocycloneDN150x2DN150x3
Vibrating screenSGS700
Double decksSGS700
Double decks
Cutting point
>30 microns
>30 microns
Separation grade
Class 2
Class 2
Inlet diameter.75mm
3 Inch75mm
3 Inch
Outlet diameter75mm
3 Inch100mm
3 Inch
Machine size
2000 x 1700 x 2380mm
2000 x 1700 x 2380mm
Weight
1700kgs
1900kgs
Control type,
Manual,AUTO,Remote,,
Manual,AUTO,Remote
Mud Cleaning Facility be used for drilling fluid separation. To remove detrimental solids, treatment after which can be recycling. The equipment used to Horizontal Directional Drilling project, slurry balance pipe jacking, diaphragm wall, slurry shield, dredge river channel, building sludge treatment, cleaning municipal pipeline and so on.

Mud Cleaning Facility advantage as following:
(1)Cleaning the drilling mud with high efficiency is good for control the performance of drilling fluid, reduce the case of drill pipe sticking, improve quality of pore-forming.
(2)cleaning drilling mud with high efficiency is good for improving the efficiency of pore-forming.
(3)circulation using the drilling mud save large cost of drilling fluid material, reduce operation cost.
(4)Closed-circuit method and lower content moisture of particle is good for environment.

Mud Cleaning Facility Features:
(1)High efficiency for desanding, for particle size 0.074mm,desanding ratio reach 95%, for particle size 0.03mm desanding ratio reach 60%~80%.
(2)Straight vibrating screen with low fault, easy installation, easy operation and maintenance, dewatering effect is well.
(3)Power of vibrating screen, sieve face angle, sieve mesh can adjust with working addition. To keep good separation effect in any working addition.
(4)Good corrosion assistance, light type, high speed slurry pump with structure, stable running, easy knock down and maintenance.
(5)Hydraulic cyclone have good separation performance. Advanced structure, material corrosion assistance, light weight, easy operation, durable using, can be used in trouble working environment with free-maintenance.
(6)Auto-balance device of equipment can keep stable liquid level of mud storage ditch not only but also achieve slurry recycling, to improve quality of purification.
(7)Integral equipment design saved using area better, combined type to add transportation convenience.
(8)Can recycling 80%-90% returning slurry, can save NA and other material with 40%-50%. Moisture of discharge dry particle can control in 30%.
(9) Cut down labor intensity for mixing new slurry and saved time as new slurry need 24 hour hydration.
(10)Saved transportation cost with unpurified and Scrap slurry, which be obvious in rock layer working.
(11)Lower inspection of environment department of government for project operation
As above the machine is high quality, high efficiency, economical and free-green mechanical equipment.

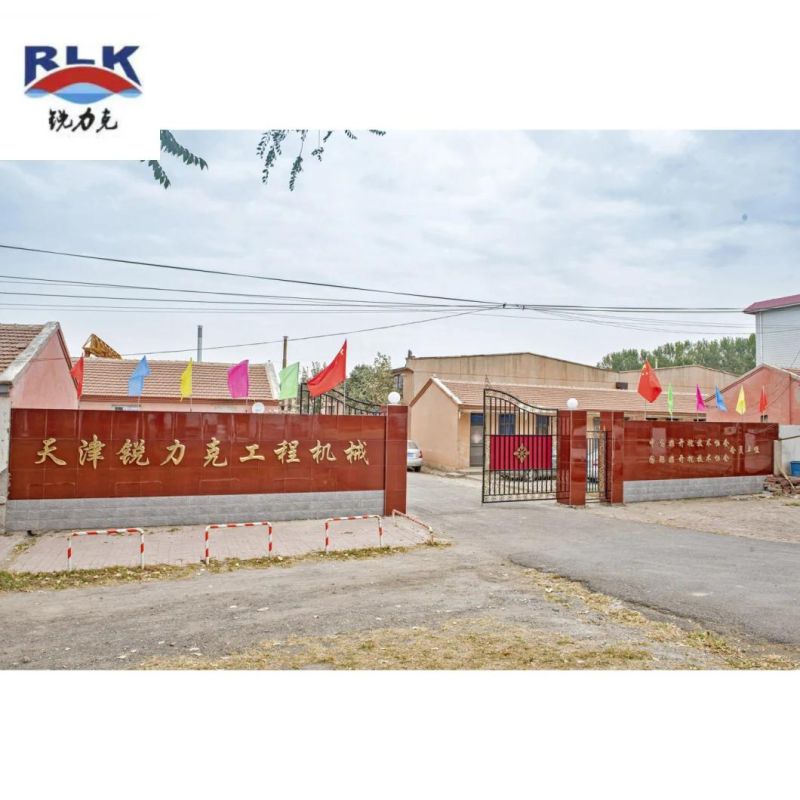

Picture of My factory
