• Model NO.：RLKJC150
• Type：Drilling Fluid Shale Shaker
• Total Power：33kw
• Transport Package：Pallet
• Specification：150 m3,h
• Trademark：RLK
• Origin：China
• Production Capacity：30 Units,Year

Model

RLKJC150

Capacity

150m³/h

(660GPM)

Vibration Screen

SZS306

Double layers screen

Sieve material

304

stainless steel 304 bar screen or polyurethane sieve

Hydrocyclone

DN250X2

Slurry Pump

Cr27,

Flow passage component all are made of alloy Cr27, mechanical seal and packing seal.

Total Power

33Kw

Purification Grade

Grade 2

Particle Size

>60(30)μm

Inlet Diameter

4

(OD 100mm)

Outlet Diameter

6

(OD 150mm)

Dimension

2930x2000x2550mm

Weight

2950kgs

Function

,,,.

Equipment's function is solid liquid separation, recycling drilling fluid. (Inlet pipeline connect preconditioning slurry, slurry discharge line connect mud tank.)

Application:

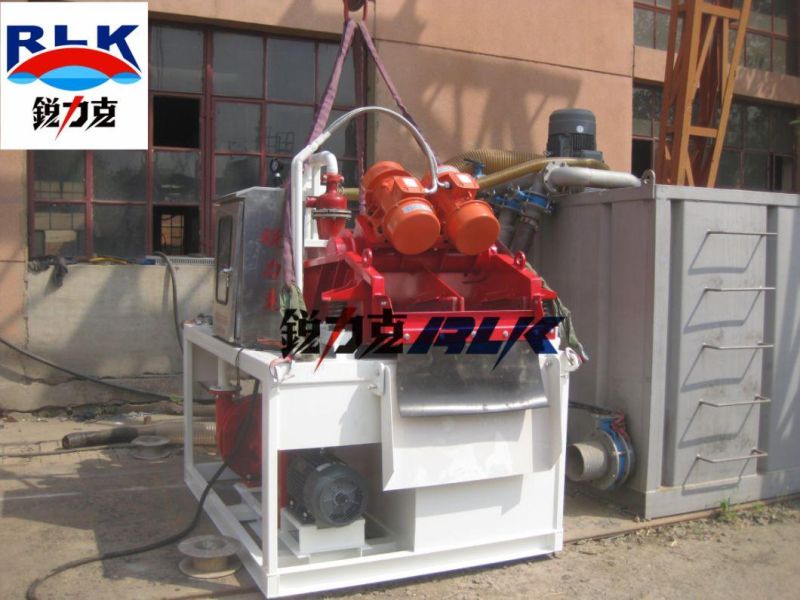

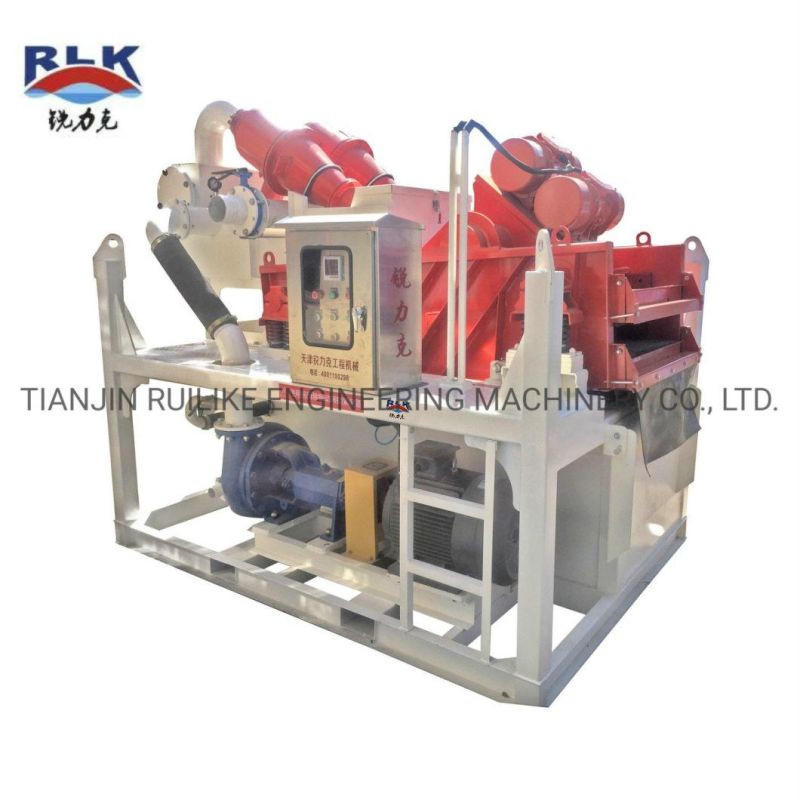

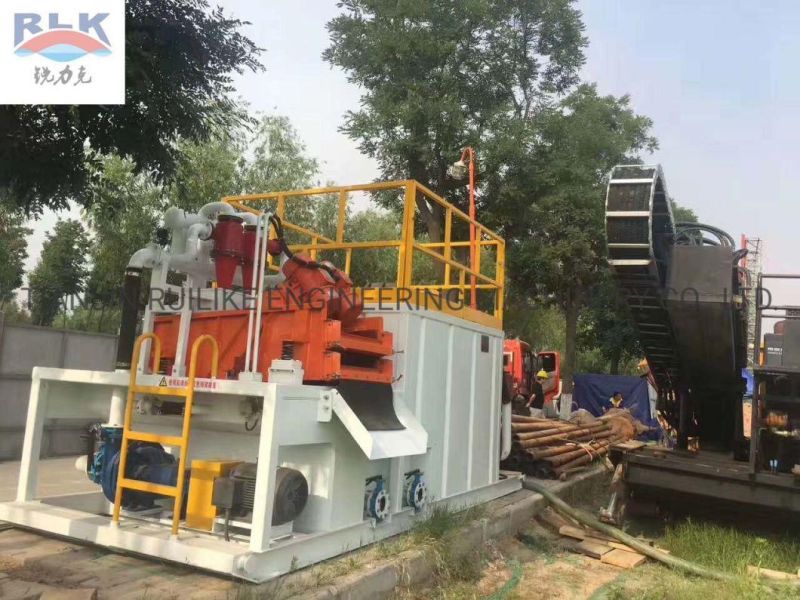

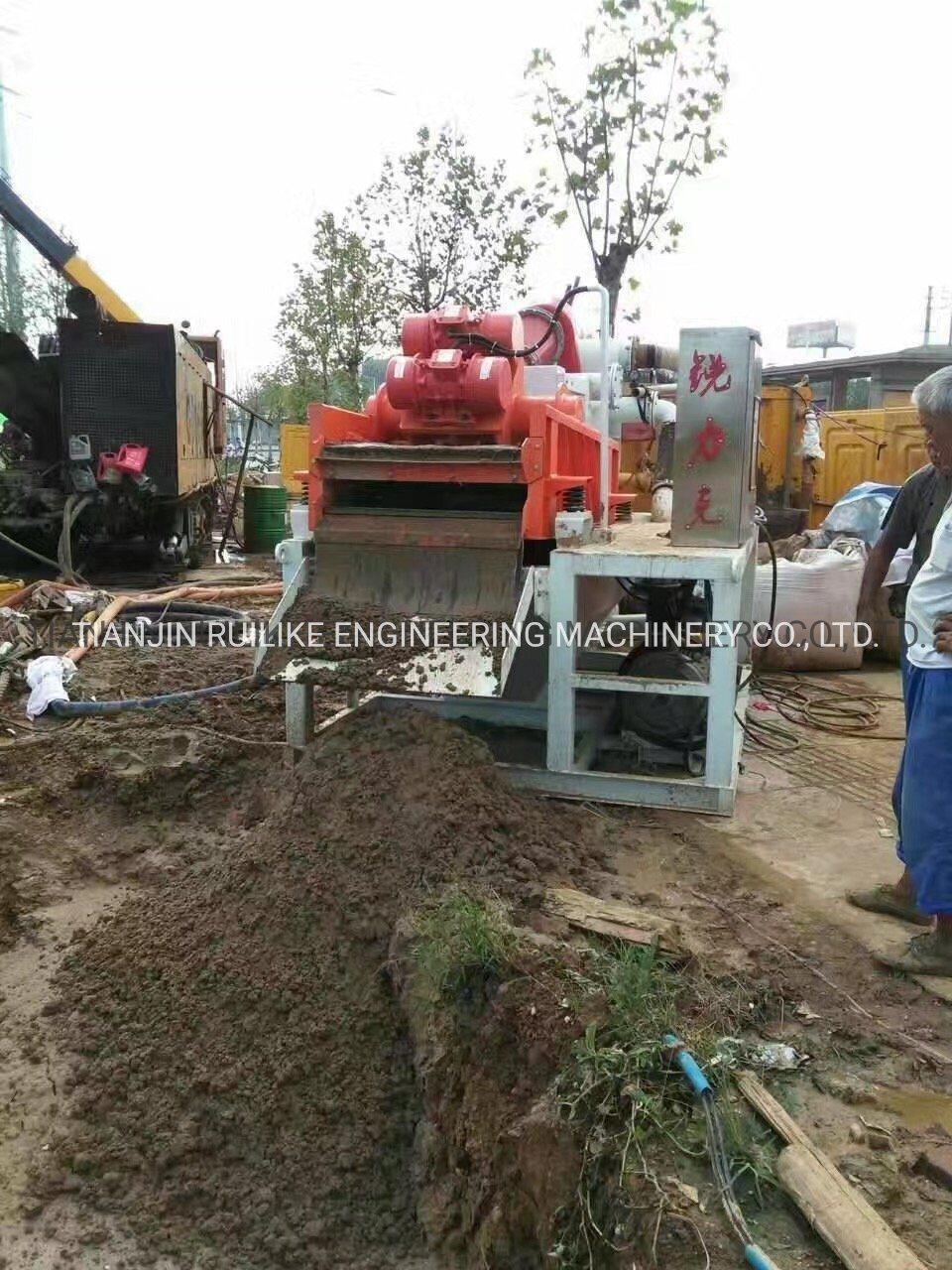

Mud Cleaning Facility is one of our company's main product. It mainly used to separate the solids and liquid of the drilling fluid. Once the hazardous solids were removed, the drilling fluid can be reused after the separation. Application scope of the product: oil & gas well drilling, solids control system of service rig, mud recovery for HDD project, pile-grouting foundation, subway diaphragm walls, shield-slurry balance, reservoir dredging, construction dregs treatment, municipal sewage system dredging and so on.

 Mud Cleaning Facility from us includes highly integral standardize unit and built-up type unit. It can meet different requirement as you order.

Functions:

1.       Efficient cleaning of the drilling mud is beneficial to control the performance of the drilling fluid, to reduce the chance of stall accident, to improve hole-forming quality.

2.       Efficient separation of the mud solids can improve the hole-forming efficiency.

3.       Reuse of the mud can economize the mud material, reduce engineering cost.

4.       The method of closed recovery of mud and the relatively low water content of the slag reduce environment pollution.

Features:

1.       High desanding efficiency,95% when particle size>0.074mm,60% to 80% when particle size>0.03mm

2.       Easy operation, low malfunction rate liner shale shaker. It has simple installation, convenient operation and maintenance, excellent dehydrating effect.

3.       Adujstable vibrating strength,deck angular,mesh number of the shale shaker guarantees its perfect sieving effect on different working conditions.

4.       Light anti-abrasion high speed slurry pump, advanced structure, universal application, reliable performance convenient fix and removal.

5.       Advanced structural design of the hydrocyclone has excellent mud and sand separating capacity. Its material is anti-abrasion,anti-corrosion,light weight. Simple manipulation and adjustment,endurable running and cost-saving. Suit for maintenance free long time running on extremely unfavorable working condition.

6.       Automatic balance device keeps the fluid storage at a stable level and it also can realize the repetitive treatment of the slurry, therefore, the purification quality is further improved.

7.       Integrated design realizes the product's efficient space-saving nature. The compact kit has improved transportation convenience.

8.       Recover 80% to 90% returned mud, save 40% to 50% raw material like sodium bentonite, water content of the discharged dry stuff can be controlled below 30%.

9.       Labour-saving for preparing new slurry, economizes the 24 hours hydrating time for new slurry.

10.       Greatly reduced the transporting cost for the discharged wasted mud. This kind of spending is figurative when drilling works was carried on rock formation.

11.       Relieve expenditure of time and energy, relevant government department spent for project's environmental supervision, proprietor used to sue the engineering construction and forcibly halt the project.

In general, it is helpful to employ the equipment in construction of high quality, high efficiency, cost-saving and harmonious project. This is a true environment friendly machine.
