St-100 Iron Roughnecks for Sale

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Iron Roughneck
  • Hydraulic Working Pressure：13.8MPa(2000psi )

Base Info

  • Model NO.：ST-100
  • Diameter Range：41,4-81,2 (108 mm~216mm)
  • Spinning Speed：100rpm
  • Spinning Torque：2373n. M (1750FT-Lb)
  • Maximum up-Buckle Torque：81500n. M (6000FT-Lb)
  • Maximum Down-Buckle Torque：108500n. M (8000FT-Lb)
  • Working Height Range：812 mm ~ 1727 mm (32 in ~ 68 in)
  • Horizontal Stroke：1170 mm (46 in)
  • Vertical Stroke：889 mm (35 in)
  • Transport Package：Wooden Case or by Container
  • Specification：2813kg(6200lbs)
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：30 Sets Per Month

Description

Basic Info.

Model NO. ST-100 Diameter Range 41/4-81/2 (108 mm~216mm) Spinning Speed 100rpm Spinning Torque 2373n. M (1750FT-Lb) Maximum up-Buckle Torque 81500n. M (6000FT-Lb) Maximum Down-Buckle Torque 108500n. M (8000FT-Lb) Working Height Range 812 mm ~ 1727 mm (32 in ~ 68 in) Horizontal Stroke 1170 mm (46 in) Vertical Stroke 889 mm (35 in) Transport Package Wooden Case or by Container Specification 2813kg(6200lbs) Trademark TR Solids Control Origin Xi′an, China HS Code 84748090 Production Capacity 30 Sets Per Month

Product Description

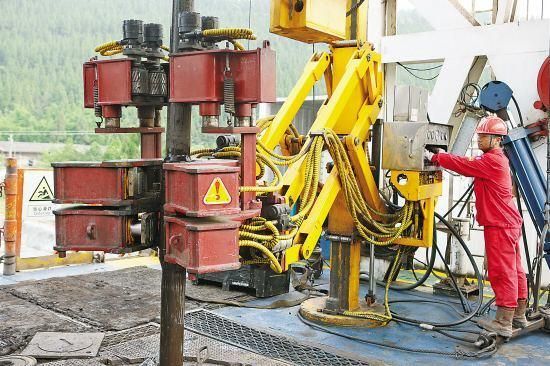

ST-100 is a fully hydraulic controlled, compact, bottom-fixed iron driller. It realizes all the functions of tightening and loosening drill pipe and buckling up and down.
St-100 Iron Roughnecks for Sale

Weight: 2813 kg (6200 lbs)

Hydraulic working pressure: 13.8 MPa (2000 psi)

Diameter range: 41/4-81/2 (108 mm~216mm)

Spinning speed: 100RPM

Spinning Torque: 2373N. m (1750ft-lb)

Maximum up-buckle torque: 81500N. m (6000ft-lb)

Maximum down-buckle torque: 108500N. m (8000ft-lb)

Working height range: 812 mm ~ 1727 mm (32 in ~ 68 in);

Horizontal stroke: 1170 mm (46 in);

Vertical stroke: 889 mm (35 in)
