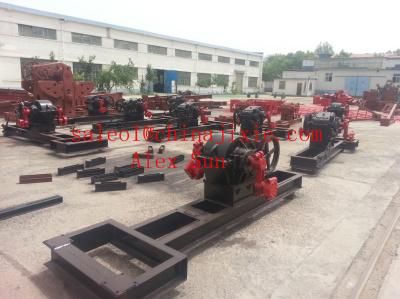

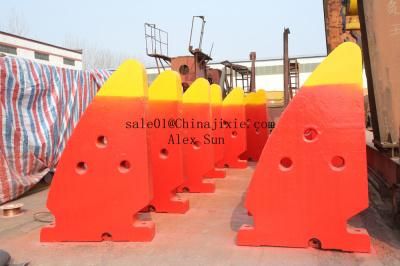

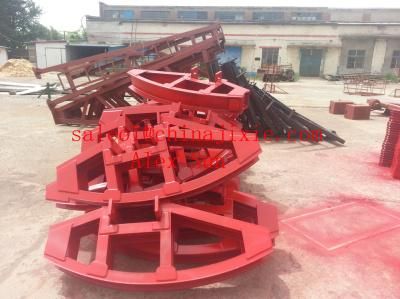

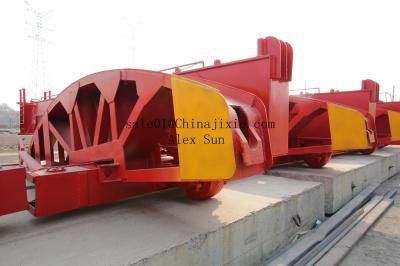

- Model NO.：API C Series Pumping Unit
- Power Type：Diesel
- Transmission System：Mechanical

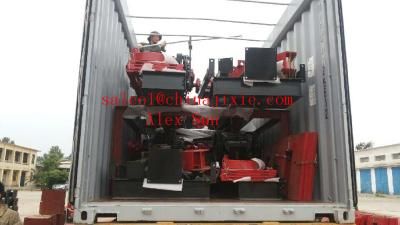

- Transport Package：Standard Export Package
- Specification：API
- Trademark：ZHONGSHI
- Origin：Puyang China
- HS Code：8413
- Production Capacity：20-50PCS,Month
Item | Pumping unit type | Lifting Capacity (lbs) | Stroke Length (in) | Rated torque (in.lbs) |
| 1 | C-912D-470-240 | 47,000 | 240 211 181 | 912,000 |
| 2 | C-912D-427-216 | 42,700 | 216 185 155 | 912,000 |
| 3 | C-912D-427-192 | 42,700 | 192 165 138 | 912,000 |
| 4 | C-912D-305-192 | 30,500 | 192 165 138 | 912,000 |
| 5 | C-912D-365-168 | 36,500 | 168 144 121 | 912,000 |
| 6 | C-912D-305-168 | 30,500 | 168 144 121 | 912,000 |
| 7 | C-912D-427-144 | 42,700 | 144 123 102 | 912,000 |
| 8 | C-640D-305-192 | 30,500 | 192 165 138 | 640,000 |
| 9 | C-640D-305-168 | 30,500 | 168 144 121 | 640,000 |
| 10 | C-640D-365-144 | 36,500 | 144 123 102 | 640,000 |
| 11 | C-640D-305-144 | 30,500 | 144 123 102 | 640,000 |
| 12 | C-640D-256-144 | 25,600 | 144 123 102 | 640,000 |
| 13 | C-640D-305-120 | 30,500 | 120 102 84 | 640,000 |
| 14 | C-456D-305-168 | 30,500 | 168 144 121 | 57,000 |
| 15 | C-456D-305-144 | 30,500 | 144 123 102 | 40,000 |
| 16 | C-456D-256-144 | 25,600 | 144 123 102 | 57,000 |
| 17 | C-456D-365-120 | 36,500 | 120 102 84 | 40,000 |
| 18 | C-456D-305-120 | 30,500 | 120 102 84 | 25,000 |
| 19 | C-456D-256-120 | 25,600 | 120 102 84 | 25,000 |
| 20 | C-320D-256-144 | 25,600 | 144 123 102 | 320,000 |
| 21 | C-320D-256-120 | 25,600 | 120 102 84 | 320,000 |
| 22 | C-320D-213-120 | 21,300 | 120 102 84 | 320,000 |
| 23 | C-320D-305-100 | 30,500 | 100 85 70 | 320,000 |
| 24 | C-320D-256-100 | 25,600 | 100 85 70 | 320,000 |
| 25 | C-320D-213-86 | 21,300 | 86 71 56 | 320,000 |
| 26 | C-228D-213-120 | 21,300 | 120 102 84 | 228,000 |
| 27 | C-228D-173-100 | 17,300 | 100 86 72 | 228,000 |
| 28 | C-228D-246-86 | 24,600 | 86 71 56 | 228,000 |
| 29 | C-228D-213-86 | 21,300 | 86 71 56 | 228,000 |
| 30 | C-228D-200-74 | 20,000 | 74 64 54 | 228,000 |
| 31 | C-228D-173-74 | 17,300 | 74 64 54 | 228,000 |
| 32 | C-160D-173-86 | 17,300 | 86 74 62 | 160,000 |
| 33 | C-160D-200-74 | 20,000 | 74 64 54 | 160,000 |
| 34 | C-160D-173-74 | 17,300 | 74 64 54 | 160,000 |
| 35 | C-160D-143-74 | 14,300 | 74 64 54 | 160,000 |
| 36 | C-160D-173-64 | 17,300 | 64 54 44 | 160,000 |
| 37 | C-114D-119-86 | 11,900 | 86 72 59 | 114,000 |
| 38 | C-114D-143-74 | 14,300 | 74 62 51 | 114,000 |
| 39 | C-114D-173-64 | 17,300 | 64 54 44 | 114,000 |
| 40 | C-114D-143-64 | 14,300 | 64 52 40 | 114,000 |
| 41 | C-114D-133-54 | 13,300 | 54 45 36 | 114,000 |
| 42 | C-80D-119-64 | 11,900 | 64 53 42 | 80,000 |
| 43 | C-80D-133-54 | 13,300 | 54 45 36 | 80,000 |
| 44 | C-80D-119-54 | 11,900 | 54 45 36 | 80,000 |
| 45 | C-80D-133-48 | 13,300 | 48 40 32 | 80,000 |
| 46 | C-80D-109-48 | 10,900 | 48 37 25 | 80,000 |
| 47 | C-57D-76-54 | 7,600 | 54 41 28 | 57,000 |
| 48 | C-57D-109-48 | 10,900 | 48 37 25 | 57,000 |
| 49 | C-57D-95-48 | 9,500 | 48 37 25 | 57,000 |
| 50 | C-57D-89-42 | 8,900 | 42 33 23 | 57,000 |
| 51 | C-57D-76-42 | 7,600 | 42 33 23 | 57,000 |
| 52 | C-40D-76-48 | 7,600 | 48 37 27 | 40,000 |
| 53 | C-40D-89-42 | 8,900 | 42 33 23 | 40,000 |
| 54 | C-40D-76-42 | 7,600 | 42 33 23 | 40,000 |
| 55 | C-40D-89-36 | 8,900 | 36 28 20 | 40,000 |
| 56 | C-25D-67-36 | 6,700 | 36 28 20 | 25,000 |
| 57 | C-25D-56-36 | 5,600 | 36 28 20 | 25,000 |
| 58 | C-25D-53-30 | 5,300 | 30 20 | 25,000 |
Company Information
Established in 1997, Puyang Zhongshi Group Co., ltd is a restructured enterprise of SINOPEC. We have 10 years export experiences and 9 factories with annual output value of $80 million. Our customers are from America, Central Asia, Southeast Asia, Africa, Middle East, etc.
Specialized in petrolem equipment, our products mainly include:
1. Pumping unit
2. Tubing Pump / Sucker Rod Pump and Accessories
3. Float Collar & Float She

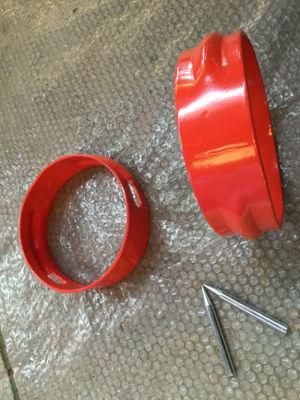

4. Casing Centralizer

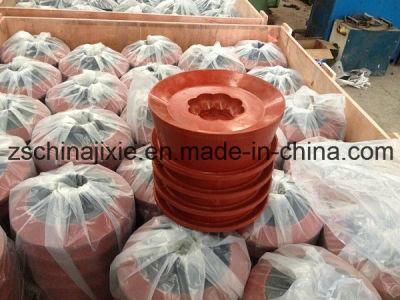

5. Cementing Plug
6. Cementing Head
7.Cementing Basket
8. Stage Collar
9. Casing / Tubing and Coupling
10. Drill Pipe
11. Sucker Rod
12. Thread Protector
13. Air Blaster
Certifications
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001.
