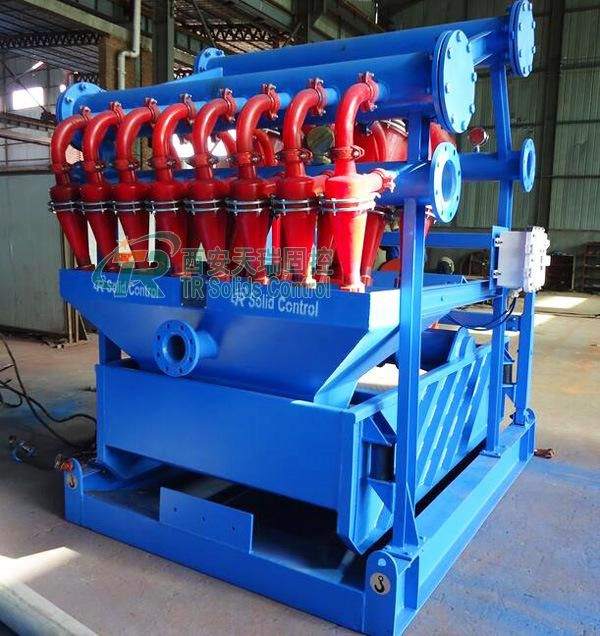

Mud Cleaner Sand Cleaning Equipment with Bottom Shale Shaker

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Mud Cleaner
  • Capacity：240m3,H

Base Info

  • Model NO.：TRQJ250*2S-100*12N
  • Desander Cyclone Qty：2nos
  • Desander Cyclone Specs：10"
  • Desilter Qty：12nos
  • Desilter Cyclone Specs：4"
  • Inlet Size：Dn150mm
  • Outlet Size：Dn200mm
  • Separation Point：15-44um
  • Working Pressure：0.25-0.4MPa
  • Bottom Shaker：Trzs752
  • Transport Package：Pallet or Wooden Case
  • Specification：1835*1230*1810mm
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：30 Sets , Month

Description

ModelTRQJ200×1S-100×4NTRQJ200×2S-100×8NTRQJ250×2S-100×12NTRQJ25×3S-100×20NCapacity60m³/h120m³/h240m³/h320m³/hDesander Cyclone Specs8"10"Desander Cyclone Qty1223Desilter Cyclone Specs4"Desilter Cyclone Qty481220Working Pressure0.25~0.4mpaInlet SizeDN125mmDN150mmDN150mmDN200mmOutlet SizeDN150mmDN200mmDN200mmDN250mmSeparation Point15μm~44μmBottom ShakerTRZS60TRZS752TRZS752TRZS703Dimension1.51×1.16×2.0m1.835×1.23×1.81m1.835×1.23×1.81m2.42×2.15×2.15mWeight600kg980kg1250kg2350 kgRemarkAll mud cleaners could be customized without bottom shaker.

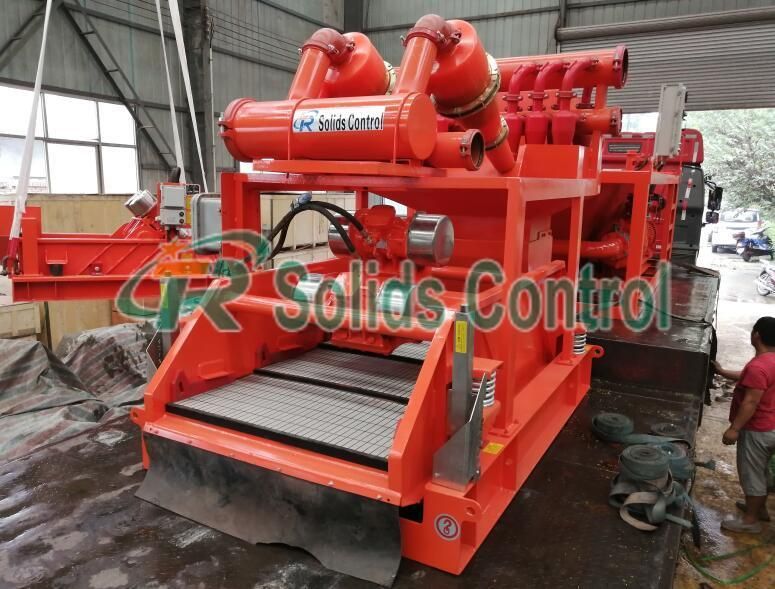

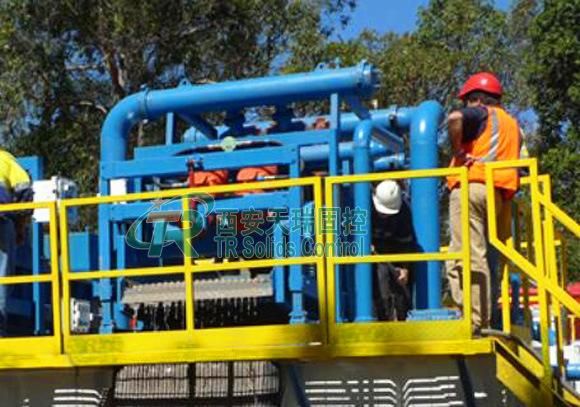

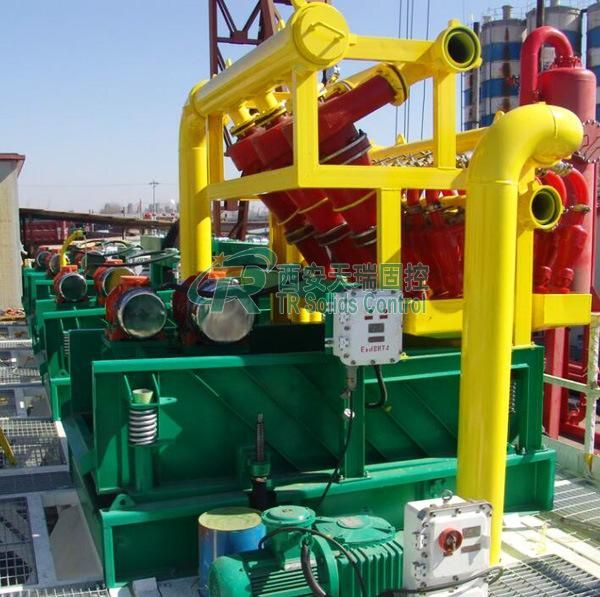

Mud Cleaner Sand Cleaning Equipment with Bottom Shale Shaker
Mud Cleaner Sand Cleaning Equipment with Bottom Shale ShakerMud Cleaner Sand Cleaning Equipment with Bottom Shale ShakerMud Cleaner Sand Cleaning Equipment with Bottom Shale Shaker
