• Model NO.：10523-00
• Specification：4"
• Trademark：TR Solids Control
• Origin：Xi′an, China
• HS Code：84749000
• Production Capacity：1000PCS,Mont

Basic Info.

Model NO. 10523-00 Specification 4" Trademark TR Solids Control Origin Xi′an, China HS Code 84749000 Production Capacity 1000PCS/Mont

Product Description

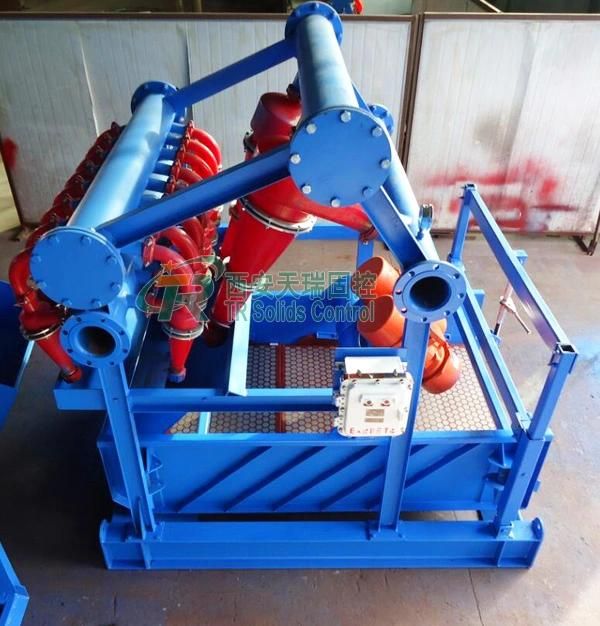

MUD CLEANER

Combined with Desander, Desilter and an Underflow shale shaker, compact design with small footprint;

Consist of a two-stage separation process using a combination of hydrocyclones mounted over a shale shaker to operation as a single unit;

Solids passed through the hydrocylones and separated particles pass through the shaker screens,and bigger particles remain on the screen and removed manually;

Desander & desilter cones made of Polyurethane ( PU ) or high-chromium cast iron or ceramic;

1-3 pcs Desander cones for optional, each cone can process 500 GPM and makes a separation between 45 and 75 μm;

8-20 pcs Desilter cones for optional, each cone can process 80 GPM, and makes a separation between 15 and 45 μm;

Effective on both oil-base and water-base weighted and unweighted drilling fluid system in removing and drying solids;

Minimizing waste generated and reducing disposal costs;

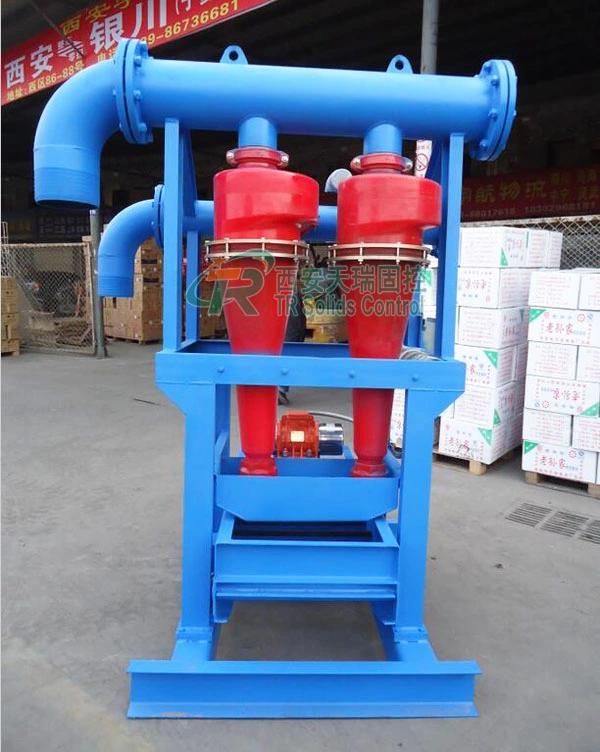

DRILLING FLUID DESANDER

Combined with Desander cones and an Underflow shale shaker, compact design with small footprint;

An ideal second-stage separation equipment;

Desander cones made of Polyurethane ( PU ) or high-chromium cast iron or ceramic;

To separate the solids between 45 and 75 μm;1, 2 or 3 pieces of 10" or 12" cones for different capacities optional;

Clamp type for easy maintenance;

Customized desander acceptable to meet the customer special needs;

Brand electrical components of ABB, Siemens, and Schneider adopted;

Brand imported vibration motors of US Martin or Italy OLI adopted, IEC Ex, ATEX and UL Certified;

De-sander Without Underflow Shale Shaker For oil gas drilling un-weighted drilling mud No Consumable Screens; Small Footprint; Economic Choice

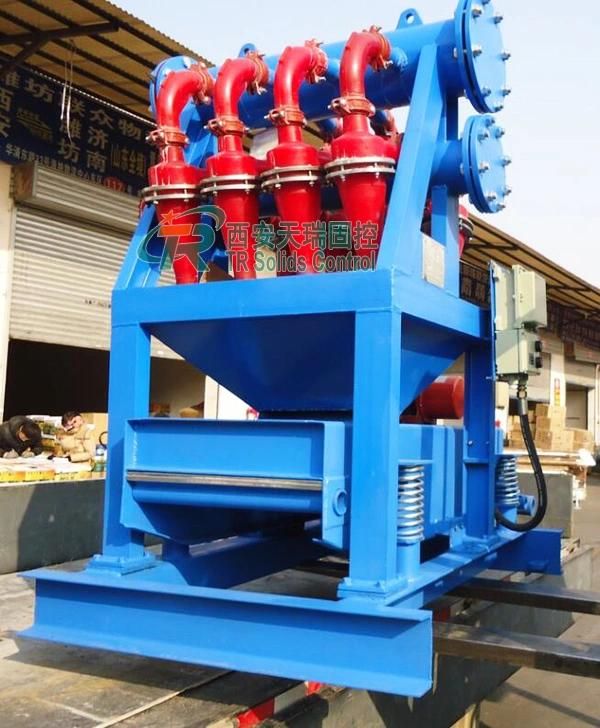

DRILLING FLUID DESILTER

Combined with Desilter cones and an Underflow shale shaker, compact design with small footprint;

An ideal three-stage separation equipment;

Desilter cones made of Polyurethane (PU) or high-chromium cast iron or ceramic;

To separate the solids of 15 ~ 47 μm; 6, 8, 10, 12 or 16 pcs of 4" cones for different capacities optional;

Customized desilter acceptable to meet the customer special needs;

Brand electrical components of ABB, Siemens, and Schneider adopted;

Brand imported vibration motors of US Martin or Italy OLI adopted, IEC Ex, ATEX and UL Certified.

Desilter Without Underflow Shale Shaker For oil gas drilling un-weighted drilling mud No Consumable

Screens; Small Footprint; Economic Choice

All our mud cleaner, desander, desilter will equip with mission magnum style centrifugal pump.

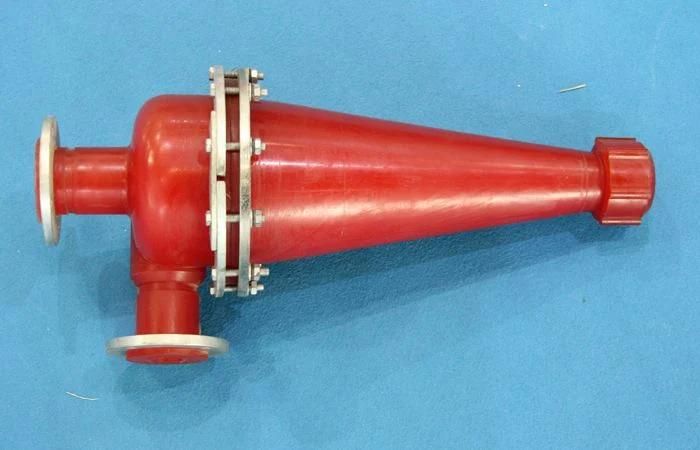

HYDROCYCLONE

A wide variety of hydro-cyclones for desilters and desanders as replacements for major O.E.M. brands in the 4", 5", 6", 10" & 12" sizes ;

Treat capacity from 10m3/h to 120 m3/h, to particles of above 15 μm;

Made of Polyurethane or abrasion-resistant alloy, Clamp design ;

The separation of solids is dependent upon feed particle size, fluid density &viscosity, fluid feed pressure and cone apex size;

Enough feeding pressure is necessary, less bend & T pipeline to ensure min.pressure loss. All hydrocyclones require 75ft (22.9m) of head, D50 is dependent on the feeding particle size.
