• Specifications：60 to 300mm
• Advantage：Durable
• Tensile Strength：>610MPa
• Name：Unbt Mud Pump Urethane Bonded Pistons
• Package：Standard
• MOQ：3
• Port：Tianjin
• Model：F Series,3nb Series,etc
• Theory：Centrifugal Pump
• Transport Package：Wooden Box and Sea Shipment
• Specification：standard
• Trademark：xinhuafa
• Origin：Cn
• HS Code：841391000
• Production Capacity：50000sets,Per Year

Basic Info.

Specifications 60 to 300mm Advantage Durable Tensile Strength >610MPa Name Unbt Mud Pump Urethane Bonded Pistons Package Standard MOQ 3 Port Tianjin Model F Series,3nb Series,etc Theory Centrifugal Pump Transport Package Wooden Box and Sea Shipment Specification standard Trademark xinhuafa Origin Cn HS Code 841391000 Production Capacity 50000sets/Per Year

Product Description

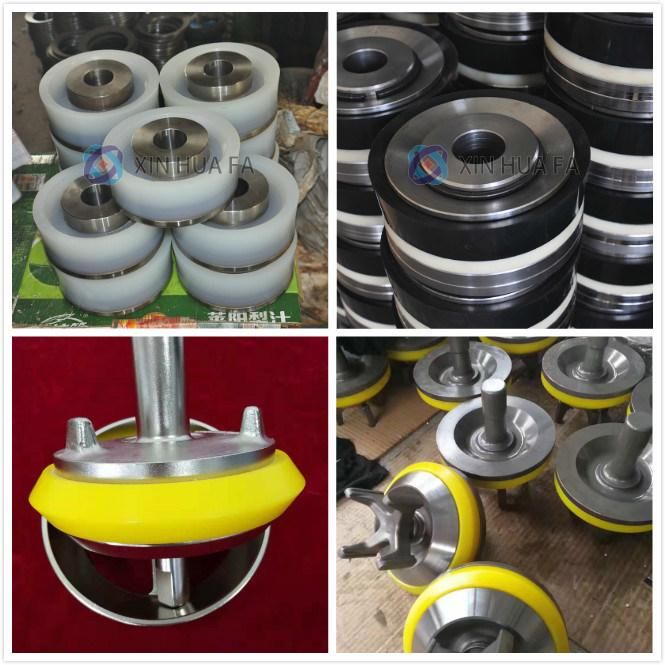

Oil drilling nitrile rubber piston assembly three cylinder mud pump piston assembly

These pistons are constructed of urethane, bonded to a solid metal hub. Double durometer urethane is designed to provide optimum performance in oil base or water base mud and high drilling pressures.

Bonding the piston to the metal hub provides the strongest, most extrusion-resistant style of piston available and also minimizes any leak paths from forming on the inner diameter of the piston. The bonded-lip design has an open inner sealing lip that also enables the rubber to expand inward as a result of thermal expansion without excess loading of the sealing lip.
With proper cooling and lubrication from the liner-wash system, the bonded-nitrile piston can be used successfully at temperatures up to 250°F (121°C).

Features, Advantages and Benefits:
•This piston is the best choice for all types of water-based drilling fluids.
•The piston is bonded to the hub for optimal strength and extrusion resistance.
•The open inner lip allows for thermal expansion without overloading the seal lip.
•The piston comes complete with hub O-ring and sleeve.

Product Parameters

Russian pump	UNBT950,UNB600,8T650,UNBT 1180L,NBT600,NBT300ect.
BOMCO/Emsco/HongHua	FB1300/1600, F1300/1600, F800/1000, F500 & some duplex pumps.
Gardener denver	PZ 7, PZ 8/9, PZ 10/11, KF-FXK, FY-FXD, FD-FXX, FG-FXG, FQ-FXQ, FF-FXP, FG-GXG.
National	7P50, 8P80, 9P100, 10P130, 12P160, 14P220, JWS165, JWS340/400, C250/350, K700, K500, K380.
Oilwell	A560/600PT, A850/1100PT, A1400/1700PT, 214P, 810P.
Ideco	T500, T800/1000, T1300/1600.
Wirth	TPK1000, TPK1600, TPK2000/2200.
Weatherford	MP-5,MP-8,MP-10,MP-13,MP-16

This piston is the best choice for oil-based and synthetic drilling fluids.

The piston is bonded to the hub for optimal strength and extrusion resistance.

The improved seal design centers the piston and promotes longer piston life with reduced liner wear.

The cut-back hub protects the liner from damage.

The dual-durometer elastomeric compound resists extrusion while ensuring a tight seal and improved wiping action.

The piston comes complete with a hub O-ring and sleeve.
