• Model：Kb-45, 5000 Psi,Kb-75, 5000 Psi
• Other Name：Bladder, Stabilizer, Stablizer Plate, Washer, Bolt
• Usage：NBR or Rubber
• Item：K-10,3000 Psi,K-10,5000 Psi,K-20, 5000 Psi,K-20,

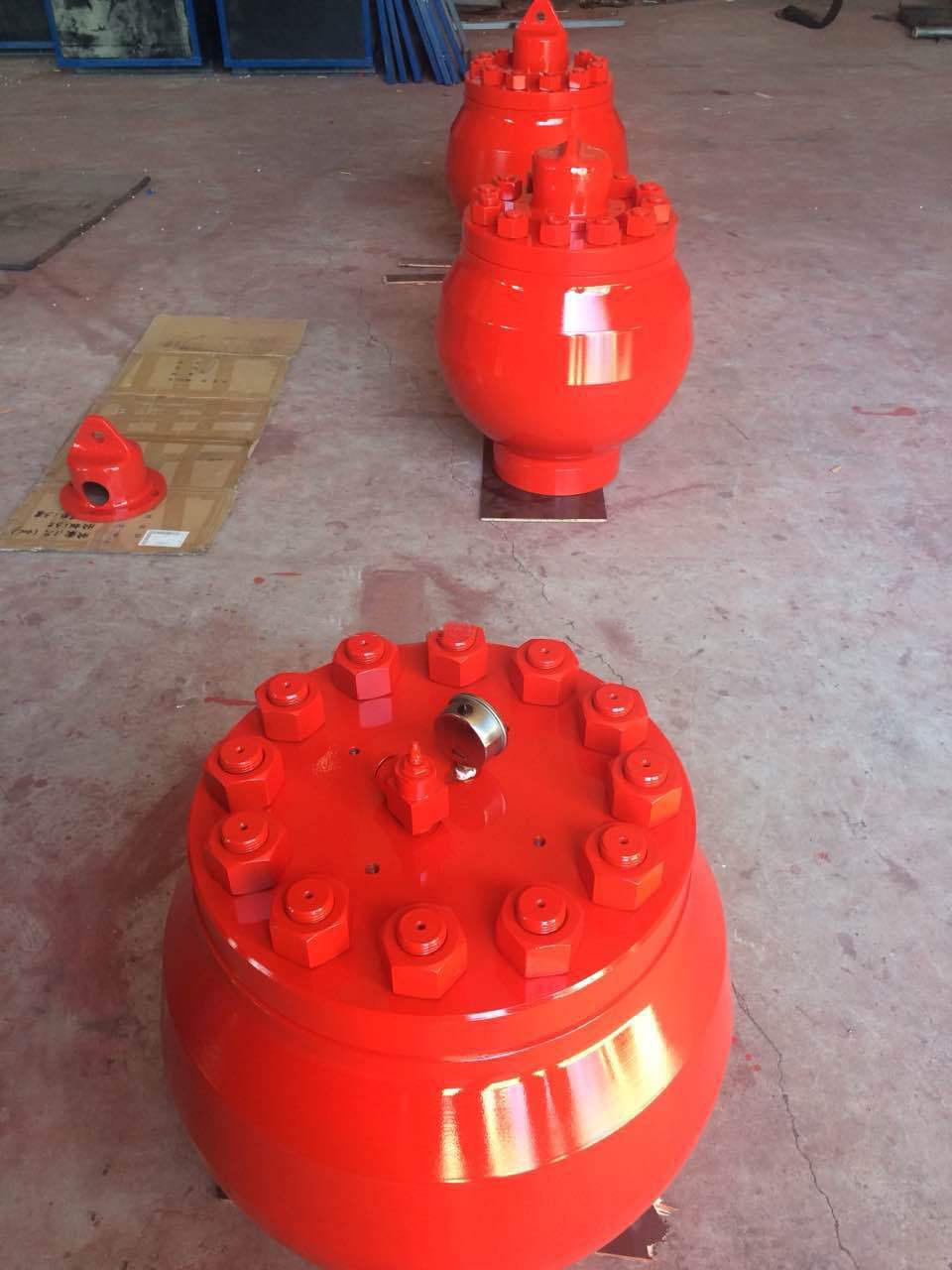

• Pulsation Dampener：for Drilling Mud Pump
• Pressure：5000-7500psi
• Type：Kb45, Kb75, K10, K20 etc
• Thoery：Reciprocating Pump
• Power：Hydraulic
• Transport Package：Common Export Packing
• Specification：standard
• Trademark：xinhuafa
• Origin：Cn
• HS Code：84139100
• Production Capacity：50000sets,Per Year

Basic Info.

Model Kb-45, 5000 Psi/Kb-75, 5000 Psi Other Name Bladder, Stabilizer, Stablizer Plate, Washer, Bolt Usage NBR or Rubber Item K-10,3000 Psi/K-10,5000 Psi/K-20, 5000 Psi/K-20, Pulsation Dampener for Drilling Mud Pump Pressure 5000-7500psi Type Kb45, Kb75, K10, K20 etc Thoery Reciprocating Pump Power Hydraulic Transport Package Common Export Packing Specification standard Trademark xinhuafa Origin Cn HS Code 84139100 Production Capacity 50000sets/Per Year

Product Description

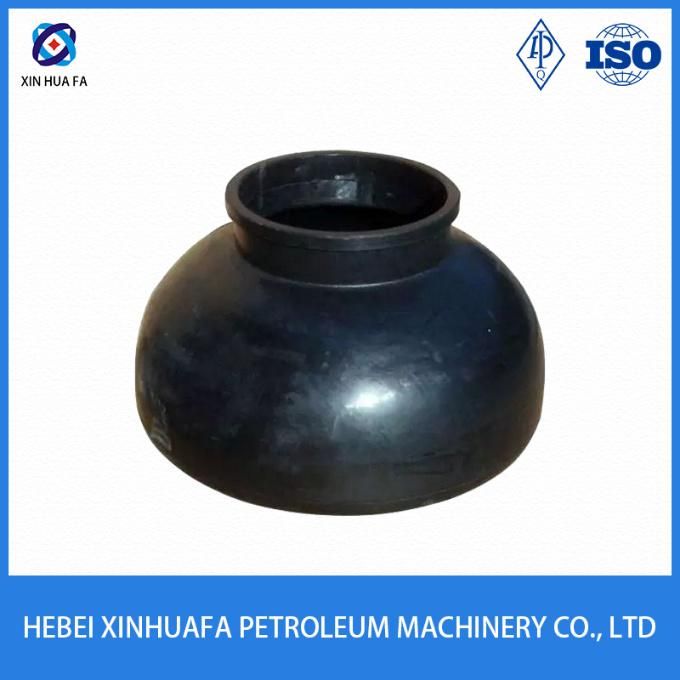

Emsco/Bomco/Hydril PD55/KB75/K20 Mud Pump Pulsation Dampener Bladder Kits

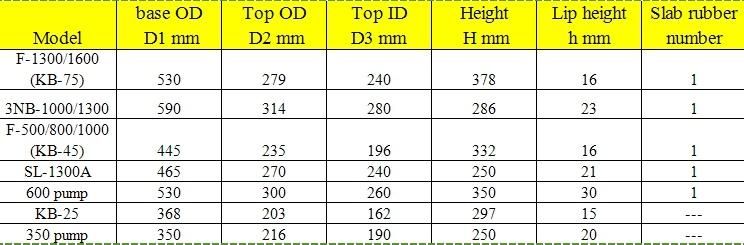

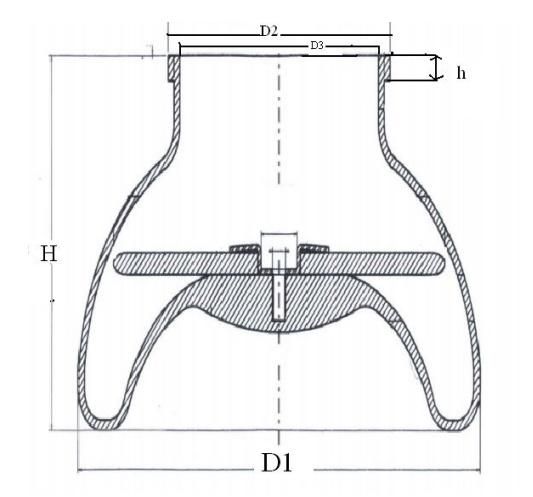

Model	Bottom O/D mm	Upper O/D mm	Upper I/D mm	H mm	Lip Thickness mm
F1300/1600(KB-75)	530	279	240	378	16
3NB-1000/1300(3NB)	590	314	280	286	23
F500/800/1000(KB-45)	445	235	196	332	16
SL-1300A	465	270	240	250	21
600	530	300	260	350	30
KB-25	368	203	162	297	15
350	350	216	190	250	20

Product introduction:

HNBR rubber bladder is composed of rubber pulsation bladder,rubber balance plate and pressure plate bolt, it can reduce the drilling pump pressure fluctuations of instantaneous displacement change;

Make the pump pressure smoothly, protect equipment from damage caused by severe vibration.

the product is also used as stabilizer and vibration absorber for air pump.

 Filled with nitrogen in the air or inert gas, in the absence of them,air can replace.But oxygen or combustible gas is forbidden.

Inflation pressure is 20% ~ 30% of the maximum working pressure. The advanced filling pressure is 2.0-2.5 MPa.

Usage:

Mainly applicable to 25 to 35 Mpa drilling, to meet the needs of high pressure jet drilling.

Specification:

Above are our regular specification, any customizing request is also welcome.

Mud Pump Model:
Bomco: F-500, F-800, F-1000,F-1300, F-1600,F-1600HL, F-2200HL
Emsco: F-500, F-800, F-1000, FB-1300, FB-1600, FA-1600, FA-1300, FC-1600, FD-1600 D-300/500, D-375, D-700
National: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, JWS-340, JWS-400
Oilwell: A-850-PT, A-1100-PT, A-1400-PT,A-1700-PT Ideco: T-500, T-800, T-1000, T-1300, T-1600
Gardner Denver: PZ-7, PZ-8,PZ-9,PZ-10, PZ-11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000
Russian Pumps:UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
WEATHERFORD/Ellis Williams: E-447, E-2200, W446, W440
Drillmec: 9T1000, 12T1600, 7TS600,10D2C, 8D1S
Romania: 3PN-1000, 3PN-1600, 3PN-1300, 3PN-2000
OPI: 700-HDL | 1000-HDL

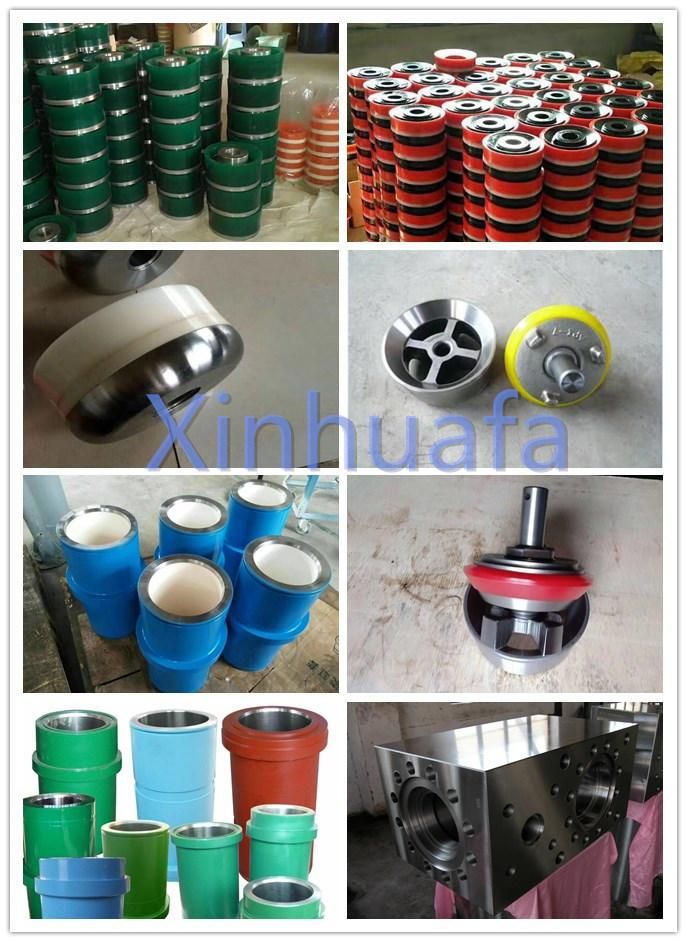

Other parts related:
