• Model NO.：G0005848
• Deck Angle：-1°to +5°
• Color：Metal Color
• Transport Package：Wooden Case
• HS Code：84749000
• Production Capacity：500PCS,Month

Basic Info.

Model NO. G0005848 Deck Angle -1°to +5° Color Metal Color Transport Package Wooden Case HS Code 84749000 Production Capacity 500PCS/Month

Product Description

Angle Adjustment for Solids Control Drilling Shale Shaker



Product Overview



The shaker deck is normally set at 0 °when leaving our factory except Hunter-Mini shaker. Shaker deck angel increases when spin clockwise and decreases when spin anticlockwise.

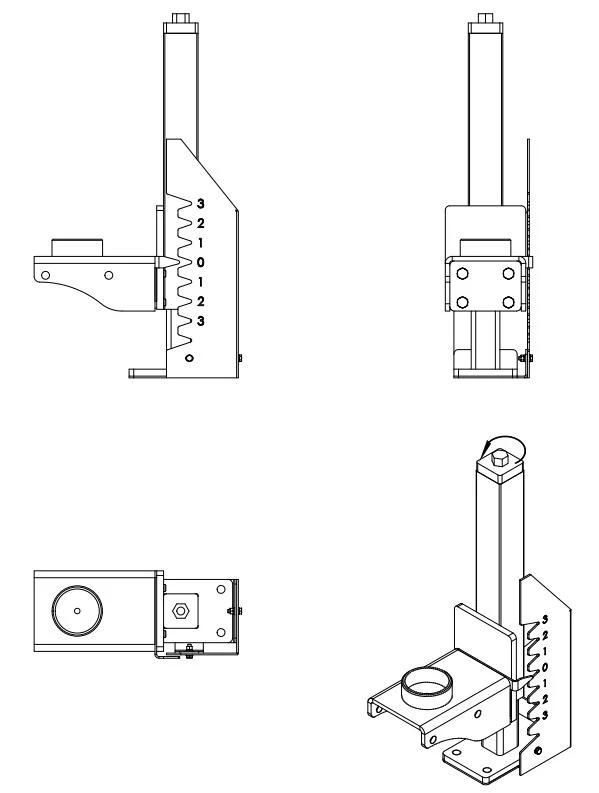

The shaker deck angle adjusng device is composed of electric motor, reduction box, lead screw device, steer square tube, travelling square tube, travelling switch, travelling switch support, and control panel which allows the shaker deck to be adjusted by electric motor. The deck angle is -1°to +5°,rated working angle is 0 to3°.

Operation:When the electric control panel is charged with electricity, choose the corresponding up and down button. Start the motor, the motor speed is decelerated by reduction box and screw lift to get ideal speed. The lead screw lift the travelling square tube up or down. When the travelling squire tube increase or decrease to a limited position, the travelling square tube assembly touch the travelling switch and the motor will shut off for protection. The operator can adjust the deck angle according to the mud property and flow capacity.

How does angle adjustment working?

There are mechanical adjustment, hydraulic adjustment, electrical adjustment. All of them can be adjusted during drilling without shut down. The mechanical one is popular since convenient and easy to operate. For mechanical one, we adjust the angle by handle wheel, or the handle lever. With the jack screw, the deck angle can be easily adjusted very soon by one person.



Such mechanical jack screw requests little maintenance by greasing the screw. Always operate it according to user manual or instruction mark on shaker provided by manufacturer.



Advantages of Our Drilling Shale Shaker

1. Martin or OLI vibration motor.
2. Overall heat treatment, long time work.
3. Hopper type feed mode reduces feed speed.
4. Vibration strength is 7.5G, adjustable.
5. Screen box angle is mechanical and adjustable.
6. Schneider or Siemens electrical components.
7. Wedge-type compaction device facilitates fast replacement of screen.
