• Model NO.：HC
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Export Packing
• Specification：4100*2030*2020mm
• Trademark：GOLDENMAN
• Production Capacity：500

Basic Info.

Model NO. HC After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Export Packing Specification 4100*2030*2020mm Trademark GOLDENMAN Production Capacity 500

Product Description

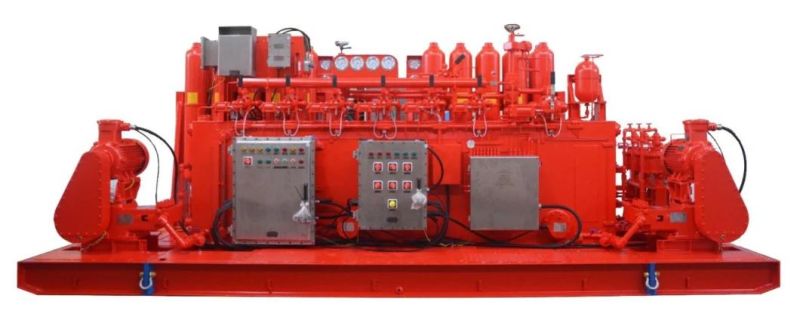

API 16D  Hydraulic control system

The BOP Control system for surface mounted BOP stacks is used to open and close BOP and relief valve while drilling operation. It mainly consists of remote control panel, driller's panel, air cable, pipe rack, high pressure hoses, protection house etc.


Main parameters as follows

1.Environmental temperature:-13~40°C

2, Power: 380v, 50Hz

3, Nominal pressure: 21MPa(3000Psi)

4.Max.working pressure:34.5MPa(5000Psi)

4, Pressure range: 0~14MPa(0~2000Psi)

5, Nitrogen charging pressure of accumulators: 7±0.7MPa(1000±100Psi)

6, Air supply pressure: 0.65~0.8MPa(93~115Psi)

7, Pressure range of pressure valve: 17.5~21MPa(2500~3000Psi)

8, Hydro-pneumatic pressure switch: 19~21MPa(2700~3000Psi)

The BOP Control system for surface mounted BOP stacks is used to open and close BOP and relief valve while drilling operation. It mainly consists of remote control panel, driller's panel, air cable, pipe rack, high pressure hoses, protection house etc.

Main parameters as follows

1.Environmental temperature:-13~40°C

2, Power: 380v, 50Hz

3, Nominal pressure: 21MPa(3000Psi)

4.Max.working pressure:34.5MPa(5000Psi)

4, Pressure range: 0~14MPa(0~2000Psi)

5, Nitrogen charging pressure of accumulators: 7±0.7MPa(1000±100Psi)

6, Air supply pressure: 0.65~0.8MPa(93~115Psi)

7, Pressure range of pressure valve: 17.5~21MPa(2500~3000Psi)

8, Hydro-pneumatic pressure switch: 19~21MPa(2700~3000Psi)
