• Model NO.：FMC
• Transport Package：Export Packing
• Specification：1inch-5inch
• Trademark：GOLDENMAN
• Production Capacity：150000

Basic Info.

Model NO. FMC Transport Package Export Packing Specification 1inch-5inch Trademark GOLDENMAN Production Capacity 150000

Product Description

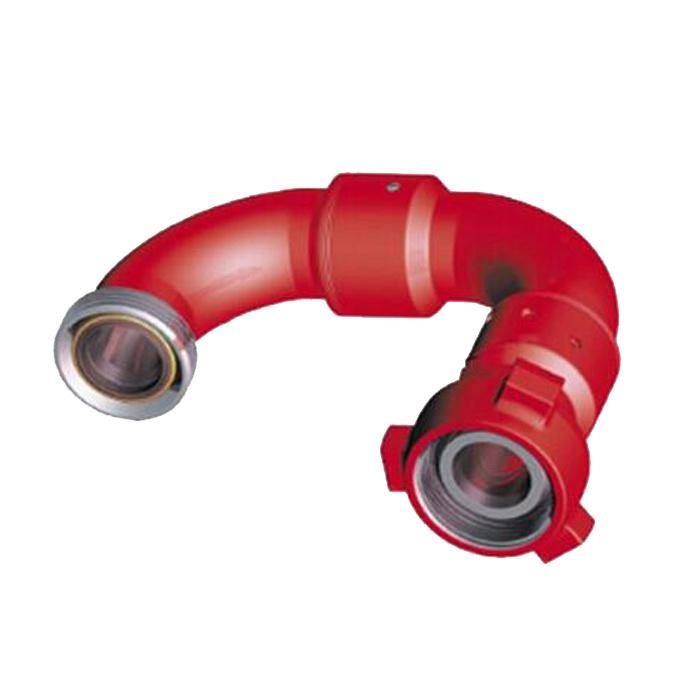

1 " 2" 3 " FMC swivel joint 2 chiksan for drilling

2 in type 10  Chicksan swivel joint

1 Our chicksan swivel joints, with integral ball bearing, are manufactured on the basis of technologies

   from FMC, USA.

2 Various models of swivel joints and their repair kits are available, suitable for normal or l

  ow temperature, or H2S environments, with sizes ranging from 1" to 4" and rated WP

   ranging from 2000psi~20000psi(14MPa~140MPa).

3 We can supply long and short radius swivel joints. Long radius swivel joints can minimize

    fluid shock, and has better performance of resistance for scouring and erosion. We also need

    to use short radius swivel joints for low pressure operation due to limited installation space.

4 Patterns of swivel joint are made in NC machine tools, with even wall thickness and

   longer service life. Wall thickness difference of inner and outer arcs can meet FMC standard.
    The three-ball-race design can bear heavy load stably, and ensure less vibration with

    variable   load.
5 All sizes of swivel joints can be interchanged with FMC equivalent products used in cementing

   and fracturing equipment.
6 Sealing parts made of synthetic rubber with release hole are fitted with blowout preventing

  metal ring. When sealing parts leak, pressure will be automatically relieved. Safety performance

   is enhanced.
7 Usually good lubrication can ensure that swivel joints work normally without much maintenance.
