• Model NO.：KHT5500,KHT7625
• Tong Head Rotation Speed：48rpm
• Rated Torque：5200 FT.Lbs,7 Kn.M
• Rated Pressure：2000 Psi,14 MPa
• Work Flow：50 Gpm,189 L,Min
• Overall Dimension：55.1"×37.5"×70.8"
• Weight：1200kg,2640lb
• Transport Package：Pallet or Wooden Case
• Specification：1400* 955*1800mm
• Trademark：TR Solids Control
• Origin：Xi′an, China
• HS Code：84748090
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. KHT5500/KHT7625 Tong Head Rotation Speed 48rpm Rated Torque 5200 FT.Lbs/7 Kn.M Rated Pressure 2000 Psi/14 MPa Work Flow 50 Gpm/189 L/Min Overall Dimension 55.1"×37.5"×70.8" Weight 1200kg/2640lb Transport Package Pallet or Wooden Case Specification 1400* 955*1800mm Trademark TR Solids Control Origin Xi′an, China HS Code 84748090 Production Capacity 30 Sets Per Month

Product Description

1.INTRODUCTION

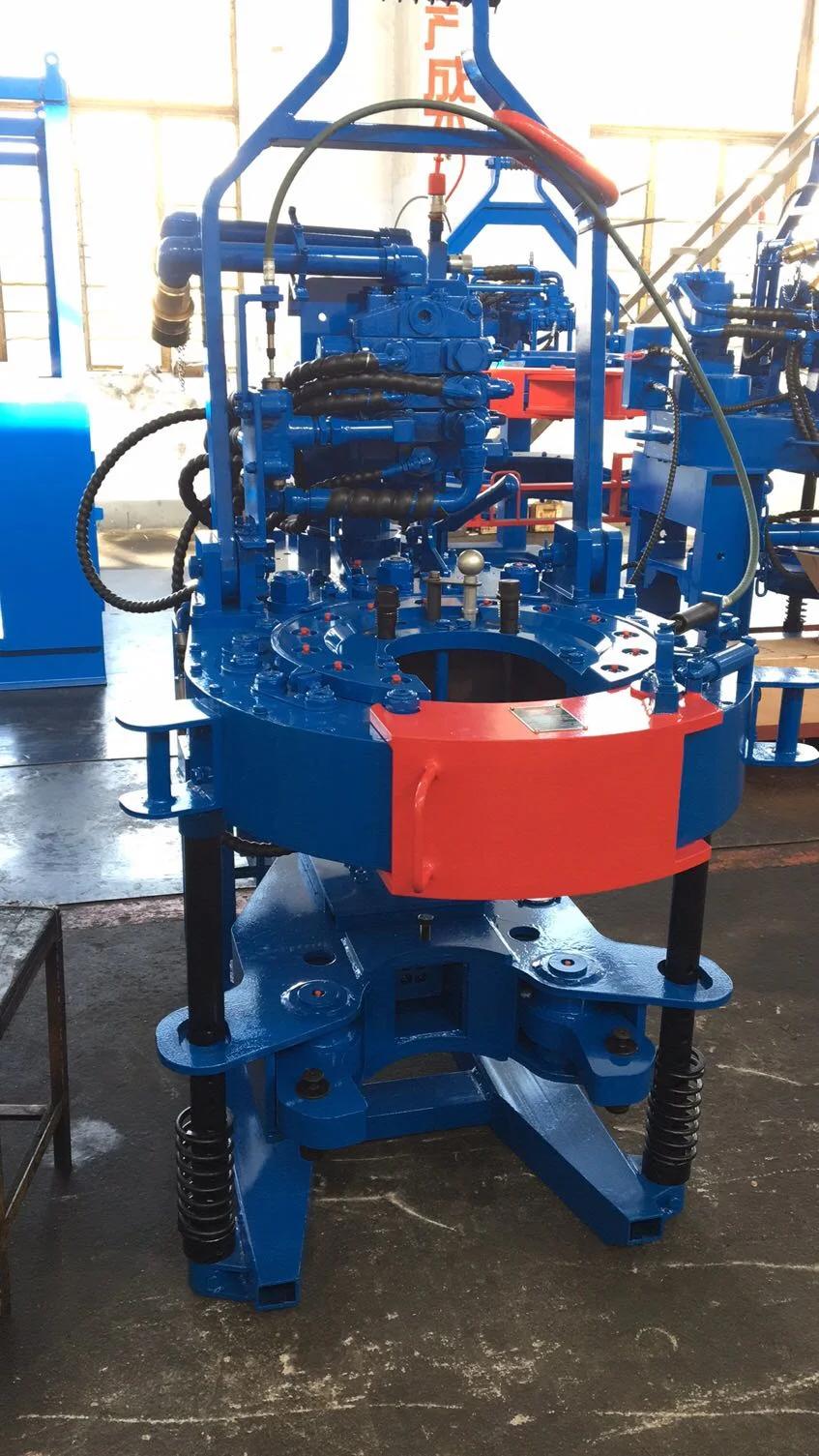

KHT7625 Casing Power Tong is used to make up and break out for casing operation in oil fields. It has
greatly reduced the labor of worker, enhanced connection quality of thread and diminished accidents in
inappropriate casing operation. The power tong has the following features as well:
(1)Opening type, convenient and prompt to enter and slide off the working position, with an integral tong
head of great strength and rigidity.
(2)Double swing head jaws, convenient to assemble and disassemble.
(3)Brake belt assembly, easy to operate and convenient to maintain and replace.
(4)Open gear supporting structure, improving the strength and rigidity.
(5)Wholly hydraulic mode and mechanical gear shift.
(6)High strength steel plate used on the shell, increasing the strength. The jaws are cast with precise
technology, artistic and strong.
(7)With hydraulic torque indicator and also installation interface, convenient to realize the computer
management.
(8)Use safety door hydraulic safety device, of great safety performance.
(9)Large torque range, can meet the requirement of larger torque use.

2. SPECIFICATIONS
2.1. Jaws available for casing sizes 2 3/8″-7 5/8″
Three kinds of common jaws that we supply: 5 1/2″ , 6 5/8″ , 7 5/8″; Others: 2 3/8″, 2 7/8″, 3 1/2″,
4″, 4 1/2″, 5″, 7″ jaws can be equipped according to customer's needs
2.2. Opening size 9″/ 228.5mm
2.3. Tong head rotation speed
High gear: 48 rpm
Low gear: 10 rpm
2.4. Rated torque High gear: 5200 ft.lbs/7 kN.m
Low gear: 25000 ft.lbs/34 kN.m
2.5. Rated pressure:2000 PSI/14MPa

2.6. Work flow:50 GPM/189 L/ min
2.7. Overall dimension(L×W×H) 55.1″×37.5″×70.8″ / 1400×955×1800 mm
2.8. Weight 1200 kg/2640 lb
