• Model NO.：50, 75, 100, 125, 150
• Specification：2"3"4"8"10"
• Trademark：TR Solids Control
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. 50, 75, 100, 125, 150 Specification 2"3"4"8"10" Trademark TR Solids Control Origin China Production Capacity 50000PCS/Year

Product Description

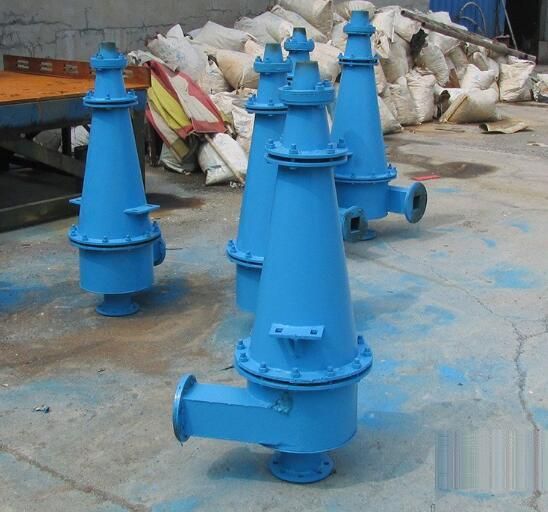

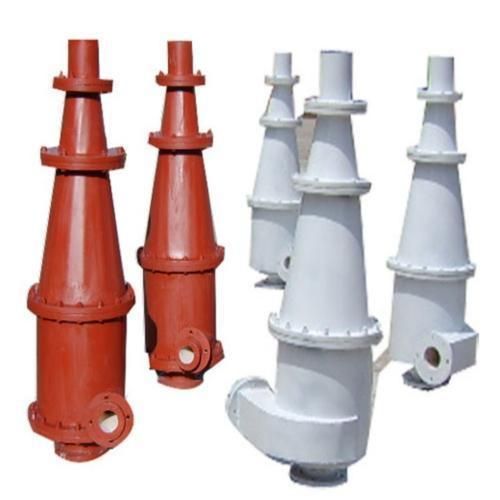

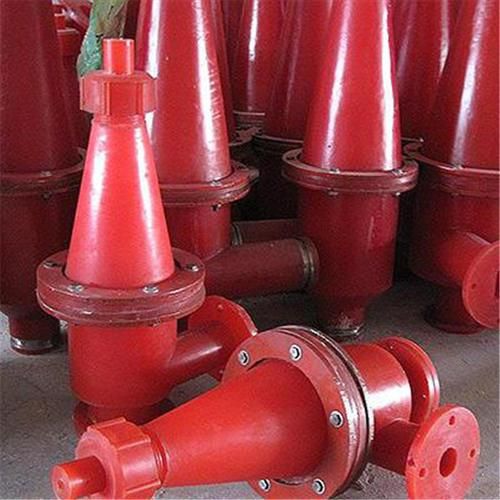

Wear-resistant Ceramic/Polyurethane Hydrocyclone

As a common separation and classification equipment, the working principle of hydrocyclone is centrifugal sedimentation. When the two-phase (or three-phase) mixture to be separated enters the hydrocyclone tangentially from the periphery of the hydrocyclone at a certain pressure, a strong three-dimensional elliptical strong rotational shear turbulence is generated. Because of the density difference between the coarse and light phases, the centrifugal force, centripetal buoyancy, fluid drag force and other sizes are different. Under centrifugal sedimentation, most of the heavy phases are discharged through the underflow port of the cyclone, while most of the light phases are discharged by the overflow pipe, thus achieving the purpose of separation and classification.



Technical parameters of Hydrocyclone


Specifications	Overflow pipe diameter(mm)	Bottom Flow Diameter(mm)	Cone angle(°)	Maximum feed size(MPa)	Feed pressure(Mpa)	Processing capacity(m2/h)	Separation granularity(μm)
710	240.260.280	120.140.160	20	16	0.03-0.4	400-550	74-250
660	180.200.200.220.240	80.110.150	20	16	0.03-0.4	250-360	74-220
610	160.180.200.220	90.100.110	20	12	0.03-0.4	200-260	74.200
500	130.140.150.160.180.220	35.45.50.65.70.80.90.100	10 20 25	10	0.03-0.4	140-220	74-200 74-200 74-150
350	80.90.105.115.120	30.35.40.45.50.60.70	15 20 25	6	0.03-0.4	60-105	50-150 50-150 50-120
300	55.65.80.100.120	20.25.30.35.40	15 20 25	5	0.05-0.4	45-90	50-120 50-150 50-150
250	60.75.80.100.120	16.18.20.25.30.35.40	10 15 20	3	0.05-0.4	40-65	40-100 40-100 30-100
200	40.50.55.60	16.20.24.28.32	15 20	2	0.05-0.4	25-40	40-100 10-100
165	40.50.55.60	30.35.40.45.50	20 6	1.5	0.05-0.4	20-30	40-90
150	30.35.40.45.50	8.10.12.14.16.18.20.22	8 15 20	1.5	0.05-0.4	11-20	30-74 30-74 20-74
125	25.30.35.40	8.10.12.14.16.18.20.22	7 8	1	0.05-0.4	8-15	20-100 20-74 20-100
100	20.25.30.40	8.10.12.14.16.18	8 15 20	1	0.05-0.4	5-12	10-100 10-74
75	15.17.20	4.5.6.7.8.10.12	7 15	0.6	0.1-0.5	2-5	20-74 5-40
50	11.13.15.18	3.6.8.10.12	6 5	0.3	0.1-0.5	1.5-3	10-74 5-30
40	10.12.14.16	1.2.3.4.5.8.10.12	4 5	0.3	0.1-0.5	1-2	10-50
25	5.6.7.8	2.3.4.5	3 5	0.2	0.1-0.5	0.3-1	3-10 2-10
10	2.3.4	1.2	4	0.1	0.1-0.6	0.05-0.1	1-5

Why Choose Us
1)Stable quality
2) On-time delivery
3) Competitive price and good service
4) Positive customer feedback from domestic and international market
5) International advanced-level equipment
6) OEM service, your demand is our pursued.

FAQ
1. What are the main materials of your products?
We are focused on casting and processing of grey iron and ductile iron products.
2. What is your MOQ?
We will arrange production based on your drawings and deliver your products as per your requirements. We will do our best to meet your demands.
3. What are your advantages?
1) Professional staff
2) 24 years of casting experience
3) Rigorous quality control system


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
http://trsolidscontrol.en.made-in-china.com
