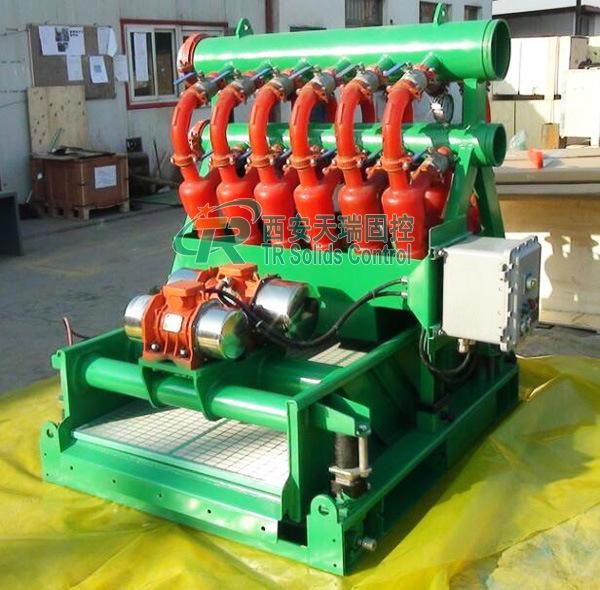

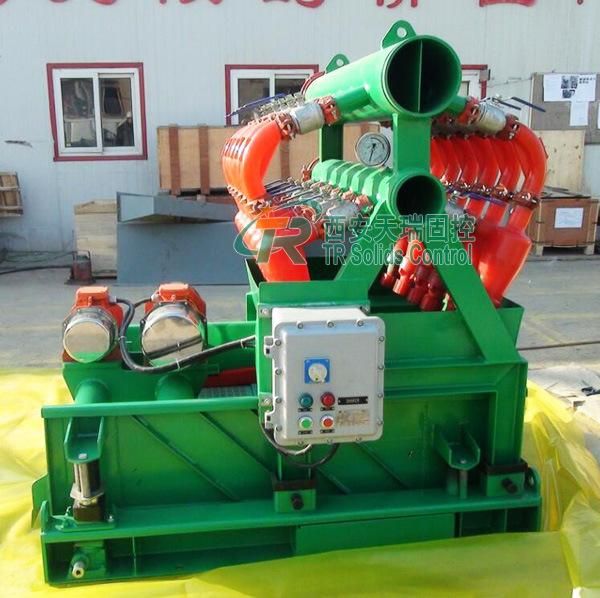

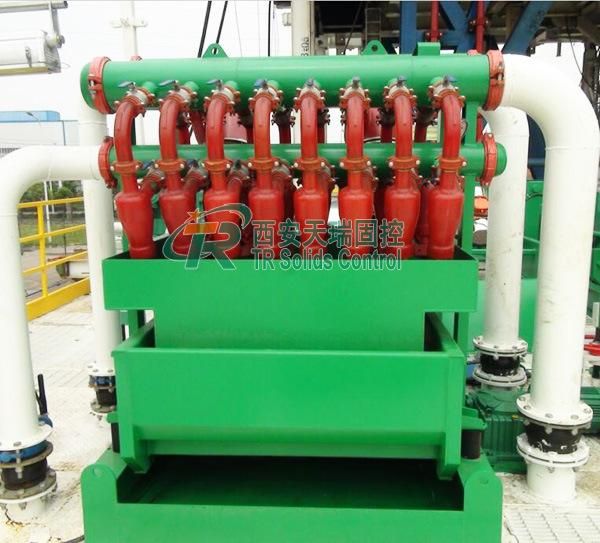

Drilling Mud Desilter with Hydrocyclone - Tunneling Use

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Desilter
  • Hydrocyclone Qty：6nos

Base Info

  • Model NO.：TRCN100-6N
  • Capacity：90m3,H
  • Separation Point：15μm-44μm
  • Inlet Size：Dn125mm
  • Outlet Size：Dn150mm
  • Working Pressure：0.25-0.4MPa
  • Bottom Shaker：Trzs60,N,a
  • Weight：560kg
  • Transport Package：Pallet or Wooden Case
  • Specification：1510*1360*2250mm
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：20 Sets , Month

Description

ModelTRCN100-4NTRCN100-6N/8NTRCN100-12N/16NTRCN100-20NCapacity60m390m3/120m3180m3/240m3300m3Cyclone Specs4"Cyclone Qty4 pcs6pcs/8pcs12pcs/16pcs20pcsWorking Pressure0.25-0.4MpaInlet SizeDN100mmDN125mmDN150mmDN150mmOutlet SizeDN125mmDN150mmDN200mmDN200mmSeparation Point15μm -44μmBottom ShakerTRZS60TRZS60TRZS752TRZS703Dimension1510*1160*2000mm1510*1360*2250mm1835*1230*1810mm2770*1785*1810mmWeight550kg560kg/580kg1150kg1950kgRemarkAll desilter could be customized without bottom shaker.
Drilling Mud Desilter with Hydrocyclone - Tunneling UseDrilling Mud Desilter with Hydrocyclone - Tunneling UseDrilling Mud Desilter with Hydrocyclone - Tunneling UseDrilling Mud Desilter with Hydrocyclone - Tunneling Use


Application in Drilling Solids control:

Our mud desilter is currently used in tunneling construction, oil & gas drilling, city bored piling, Drilling Waste Management, micro-tunneling, mining, environment protection, Coal Bed Gas Solids Control System, trenchless HDD, Oil Sludge Dewatering Systems, Oil Mud Seperation, Water Drilling etc.

Competitive Advantages:
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet:
Customer's satisfaction is the highest pursuit of TR Solids Control.
