Large Capacity Vertical Cutting Dryer for Drilling Waste Management

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Vertical Cutting Dryer
  • Capacity：30-50t,H

Base Info

  • Model NO.：TRCD930C
  • Basket Diameter：930mm
  • Basket Gap：0.25-0.5mm
  • Rotary Speed：900r,Min
  • Air Inlet Pressure：0.69MPa
  • Air Tool Air Supply：1.8m3,Min
  • Main Motor Power：55kw
  • Oil Pump Power：0.55kw
  • Weight：5900kg
  • Transport Package：Pallet or Wooden Case
  • Specification：2750*2130*1800mm
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：20 Sets Per Month

Description

ModelTRCD930CTRCD930B-VFDHandling Capacity(T/h)30-50T/hBasket Max.Diameter930mmBasket Gap0.25-0.5mmSpeed900 r/min0-900 r/minAir knife Air Inlet Pressure0.69MpaAir Tool Air Supply1.8m3/minFuel Tank Volume60LMotor Power(Kw)55KwOil Pump Power(Kw)0.55KwWeight5900kg6000kgSize2750*2130*1800mm

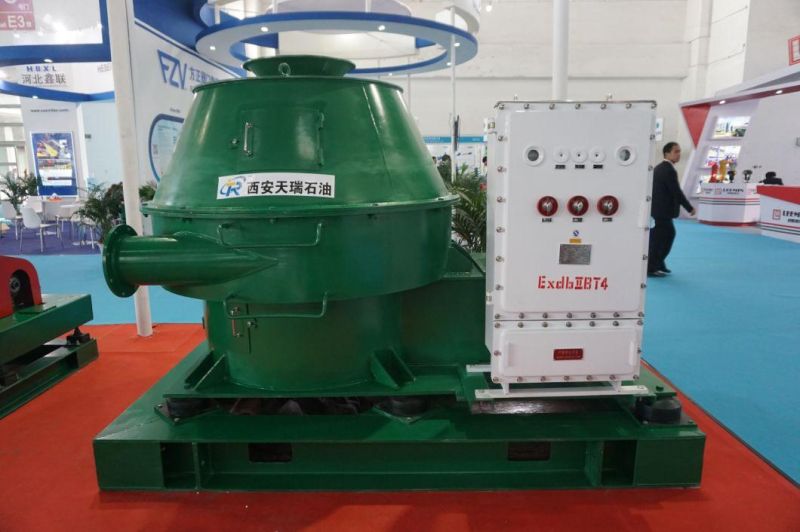

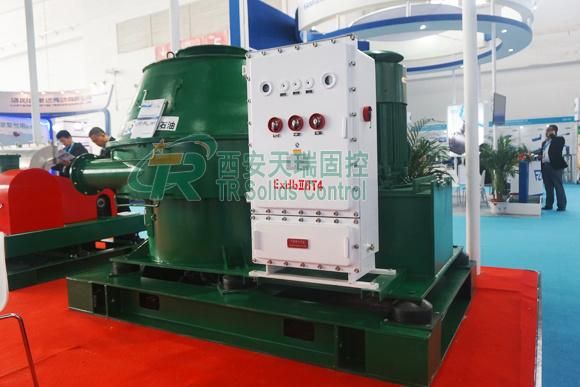

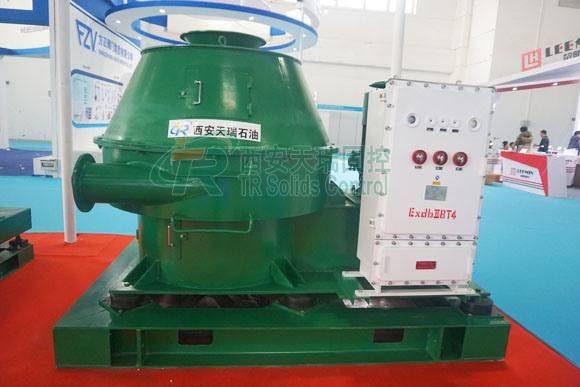

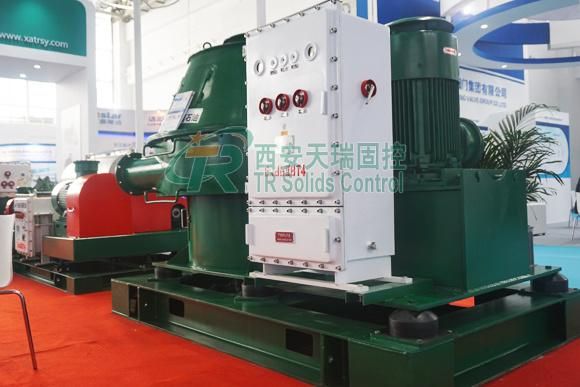

Large Capacity Vertical Cutting Dryer for Drilling Waste Management
Large Capacity Vertical Cutting Dryer for Drilling Waste ManagementLarge Capacity Vertical Cutting Dryer for Drilling Waste ManagementLarge Capacity Vertical Cutting Dryer for Drilling Waste Management


Competitive Advantages:
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet:

Customer's satisfaction is the highest pursuit of TR Solids Control.
