• Model NO.：5-1,2" TORQUE ANCHOR
• Usage：Completion Tool Accessories
• Transport Package：Wooden Case
• Specification：4-1,2"
• Trademark：ZX
• Origin：China
• HS Code：8431431000
• Production Capacity：1000 PCS Per Month

Basic Info.

Model NO. 5-1/2" TORQUE ANCHOR Usage Completion Tool Accessories Transport Package Wooden Case Specification 4-1/2" Trademark ZX Origin China HS Code 8431431000 Production Capacity 1000 PCS Per Month

Product Description

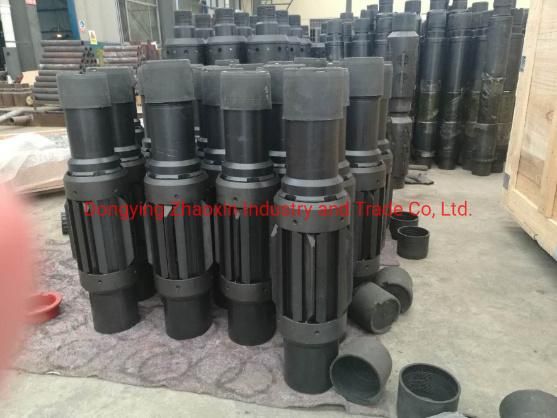

Torque anchor


TheTubing Anchor is a retrievable double grip tubing anchor designed to anchor the tubing string in tension or in compression.

When installed with the proper amount of tubing tension, the Tubing Anchor prevents movement of the tubing string during rod pumping operations. This in turn will extend the life of the pump, rods and tubing, as well as decrease pumping costs and prevent the tubing and rods from failing in case of parted tubing.

The Tubing Anchor incorporates an emergency shear release system, which is easily adjustable in the field. Each pin is 2,200 kg (5,000 lbs.).



features and benefits

Sets securely in any hardness casing, including premium grades

Large bore - Small OD

Model "L" right hand release or emergency shear release, Model "R" left hand release or emergency shear release

Easy adjusted release from 5,000 lbs to 60,000 lbs

Drag blocks rather than drag springs
