Drill Pipe Tools Se Type Elevator/Chuck
Shandong Light Fir Machinery Equipment Co., Ltd.- After-sales Service：7X24
- Warranty：12months
- Manufacturing Process：Forging
- Surface Treatment：Spray-Paint
- Operation Pressure：Manual
- Material：Steel
Base Info
- Model NO.：SE
- Standard：API 8c
- Transport Package：Wooden Box
- Specification：20-44KN. m
- Trademark：LFM
- Origin：China
- HS Code：8430
- Production Capacity：1000
Description
5.1/24 4.1/2 5 5.1/2

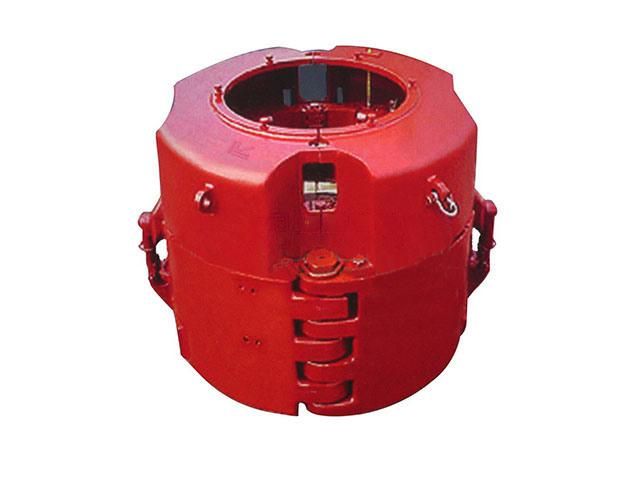

SE type elevator/chuck is mainly used to hold drill pipe, tubing and other pipe strings in oil and gas workover operations. Elevator and chuck should be used together. The product is designed and manufactured according to the requirements of API Spec 8C "Specifications for Drilling and Oil Extraction Equipment". The elevator/chuck adopts a pneumatic operating system, which effectively reduces the labor intensity of workers and improves safety and work efficiency.
Product Photos
Factory
| Model | Applicable pipe diameter | Maximum load( tons) | Working pressure(MPa) | Greatest pressure(MPa) |
| SE150 | 2³/8-5¹/2 | 150 | 0.6-0.8 | 1 |
| SE350 (14) | 4-14 | 350 | 0.6-0.8 | 1 |
| SE350 (20) | 16-20 | 350 | 0.6-0.8 | 1 |
| SE500 (14) | 4-14 | 500 | 0.6-0.8 | 1 |
| SE500 (24¹/2) | 16-24¹/2 | 500 | 0.6-0.8 | 1 |
| SEB250 | 4¹/2-13³/8 | 250 | 0.6-0.8 | 1 |
| Model | Applicable pipe diameter | Rated load( tons) | Working pressure(MPa) | Greatest pressure(MPa) |
| SE500 ( 14) | 4-14 | 500 | 0.6-0.8 | 1 |
| SE500 (24¹/2) | 16-24¹/2 | 500 | 0.6-0.8 | 1 |
SE type elevator/chuck is mainly used to hold drill pipe, tubing and other pipe strings in oil and gas workover operations. Elevator and chuck should be used together. The product is designed and manufactured according to the requirements of API Spec 8C "Specifications for Drilling and Oil Extraction Equipment". The elevator/chuck adopts a pneumatic operating system, which effectively reduces the labor intensity of workers and improves safety and work efficiency.
