• Model NO.：1" rod guide

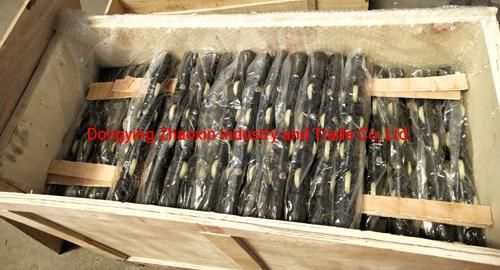

• Transport Package：Wooden Case
• Specification：7,8"
• Trademark：ZX
• Origin：China
• HS Code：8481431000
• Production Capacity：3000 PCS Per Month

Basic Info.

Model NO. 1" rod guide Transport Package Wooden Case Specification 7/8" Trademark ZX Origin China HS Code 8481431000 Production Capacity 3000 PCS Per Month

Product Description

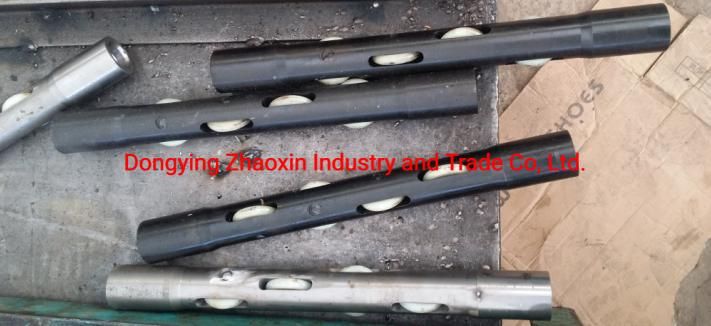

WHEELED ROD GUIDE


Wheeled rod guides centralize the rod string and reduce friction during stroking, and also reduce wear on sucker rods and tubing.



Temperature Caution

Standard models are for applications in wellbore temperature up to 175°F. (fitted with glass-fiber reinforced nylon 6 wheels), For service in higher temperature, Special metal wheels are used.





MATERIALS OF GONETRUCTION

Guide/Coupling Body

Standard guide/coupling bodies are machined from 35CrMo.

Special Material

Other metals such as steel are available on Special 'order to meet some

specifications for extra strength and/or corrosion resistance,

Wheel and Roll Pins

Wheels are set on stainless Steel journals and roll pine, Standard wheels, for applications up to 175°F are made of glass-fiber reinforced nylon 6



 Technical Data :

Application	Diameter	Length	Length of groove
5/8" rod 2-3/8" tubing	1.5	27	1.80
3/4" rod 2-3/8" tubing	1.5	27	1.8
5/8" rod 2-7/8" tubing	1.5	27	2.25
3/4" rod 2-7/8" tubing	1.5	27	2.28
7/8" rod 2-7/8" tubing	1.625	27	2.28
1" rod 2-7/8" tubing	2.0	29	2.28
3/4" rod 3-1/2" tubing	1.5	31	2.75
7/8" rod 3-1/2" tubing	1.625	31	2.75
11.5" rod 3-1/2" tubing	2.0	31	2.75
