• Model NO.：Spring Casing Centralizer
• Certificate：API 10d
• Samples：Available
• Number of Bows：Customizable
• Transport Package：Plywood Case
• Specification：3 1,2"-20", special size customizable
• Trademark：ZS
• Origin：China(Mainland)
• HS Code：843143
• Production Capacity：100000PCS,Year

Basic Info.

Model NO. Spring Casing Centralizer Certificate API 10d Samples Available Number of Bows Customizable Transport Package Plywood Case Specification 3 1/2"-20", special size customizable Trademark ZS Origin China(Mainland) HS Code 843143 Production Capacity 100000PCS/Year

Product Description

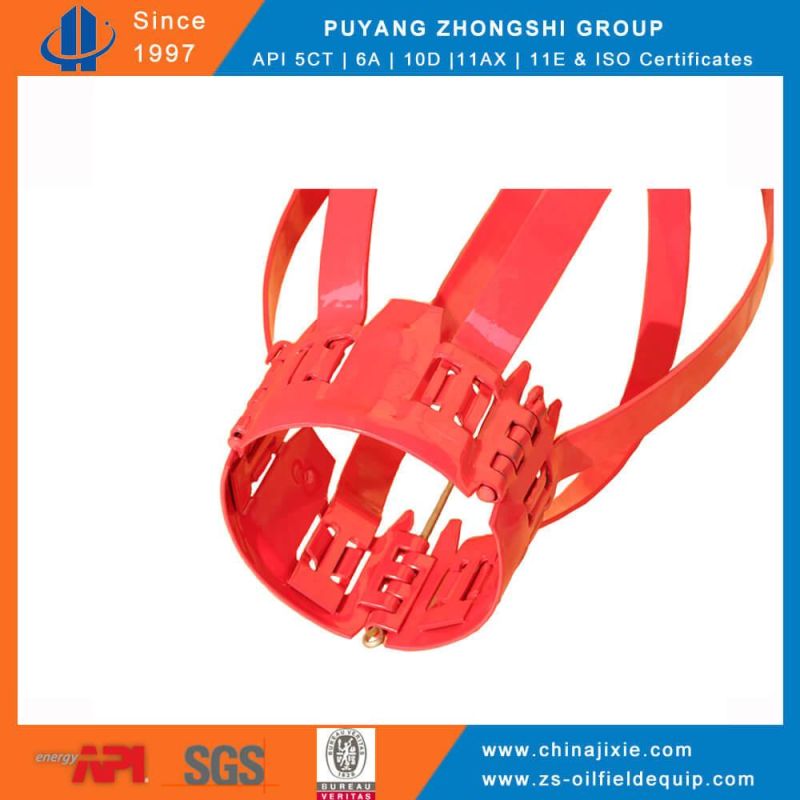

          Bow Spring Casing Centralizer




Main Features:

•No welds, not easy broken up.
• Bows held in place with locking tabs.
• Ship in components and assemble locally.
• Meet API Spec.10D.
• Not compatible with pipe rotation.
• Bows come in many different shapes.

Specifications:


Model (in)	Hooping I.D. (mm)	Hooping Thickness (mm)	Hooping Height (mm)	Total Length (mm)	Max. O.D. (mm)	Spring Pieces
5-1/2*8-1/2	142-148	5-7	50-60	650±50	225±5	5
6*8-1/2	154-158	5-7	50-60	650±50	255±5	5
13-3/8*17-1/2	342-349	8	50-60	580	450±5	6
20*26	510-518	8	50-60	650±50	670±5	10

Certifications:

                                                                                   API 10D
                                  ISO 14001                                                                             ISO9001

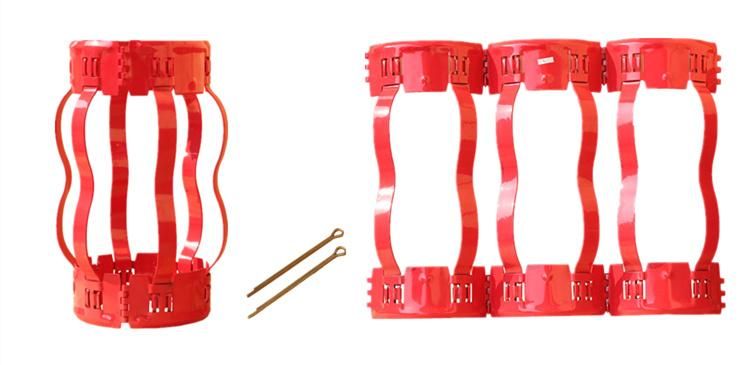

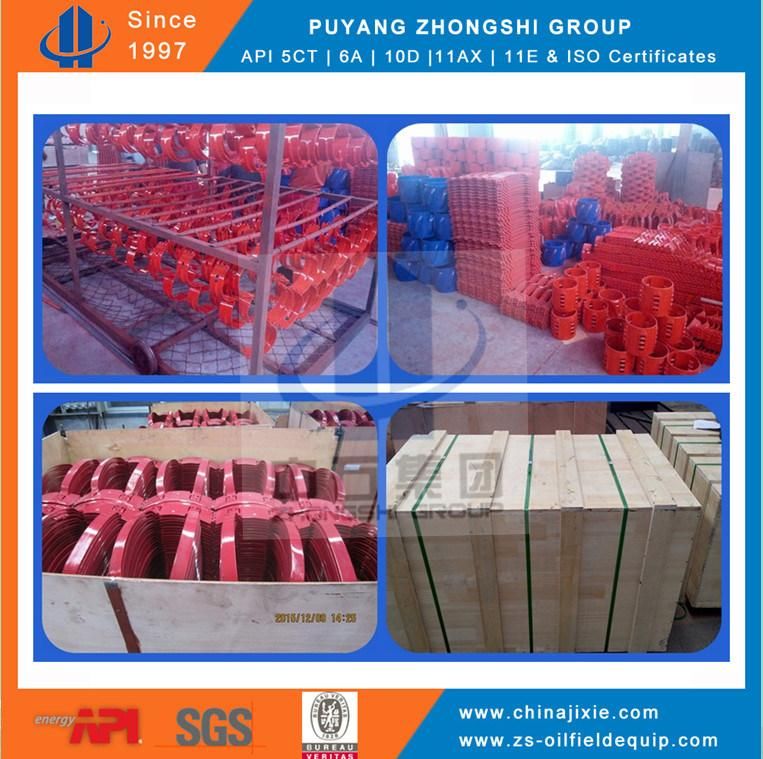

More Pictures:





About Us:

Restructured from SINOPEC in 1997, Puyang Zhongshi Group Co., Ltd has 20 years manufacturing experience of petroleum machinery products till now, we have competitive prices of our main products of casing accessories likebow spring centralizer, solid rigid centralizer,float equipment, cementing plug etc.

We have 9 factories, more than 500 employees, and many kinds of production equipments.

We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001.

With 10 years exporting experience,we have exported to more than 30 countries such as America,Canada,Russia,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc.
