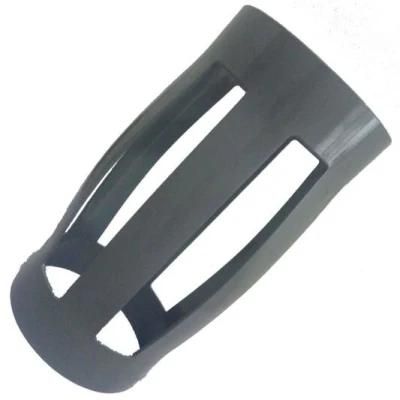

API 10d Spec Slip on Hinged Bow Spring Centralizer
Puyang Zhongshi Group Co., Ltd.- Certification：ISO 9001:2000, ISO 9001:2008
- Surface Treatment：Spray-Paint
- Centralizer Type：Elastic
- Structure：Automatic Reversing
- Material：Cast Steel
- Type：Centralizer
Base Info
- Model NO.：4 1,2-20inch
- Size：4 1,2"-20"
- Color：Red,Black
- Sample：Available
- Drawing：Available
- Markings：Available
- ODM：Available
- OEM：Available
- Transport Package：Wood Cases
- Specification：4 1,2"-20"
- Trademark：zhongshi
- Origin：China
- HS Code：843143100
- Production Capacity：10000PCS,Month
Description
Specification
In-Dia(mm)
Wall
Thickness
(mm)
Height(mm)
Total height(mm)
Largest Dia(mm)
Spring Number
5-1/2"*8-1/2"
142-148
3-5
55
650
225
5
7"*9-5/8"
181-186
3-5
55
650
255
6
7"*8-1/2"
181-186
3-5
55
650
235
6
8-5/8"*12-1/4"
223-228
3-5
55
650
330
8
9-5/8"*12-1/4"
250-255
3-5
55
650
330
8
10-3/4"*12-1/4"
274-276
3-5
55
650
330
9
13-3/8"*17-1/2"
342-347
3-5
55
650
450
11
18-5/8"*24
476
3-5
55
600
610
12
20"*26
510
3-5
55
600
660
12
Casing centralizer can be applied directly to casing to form stabilizers for drilling with casing or liner in both straight and directional wells
Almost 13 years experience of designing, manufacturing and continual improvement of our non-weld centralizers, we provides non-welded bow spring centralizers, which are designed and manufactured as per API spec.10 D.
The popular styles available are non-welded single bow spring centralizer, and double -bow spring centralizer with high reliable quality.
