• Model NO.：7 " & 9 5,8" & 13 3,8"
• Spec：7 Inch & 9 5,8 Inch&13 3,8 Inch
• Color：Blue ,Red
• Thread：Btc,Vam Top
• Material 1：L80,J55
• Material 2：N80,K55
• Marking：Available
• ODM：Acceptable
• OEM：Acceptable
• Transport Package：Wood Cases
• Specification：7"&9 5,8"
• Trademark：ZS
• Origin：Henan, China
• HS Code：843143100
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. 7 " & 9 5/8" & 13 3/8" Spec 7 Inch & 9 5/8 Inch&13 3/8 Inch Color Blue /Red Thread Btc/Vam Top Material 1 L80/J55 Material 2 N80/K55 Marking Available ODM Acceptable OEM Acceptable Transport Package Wood Cases Specification 7"&9 5/8" Trademark ZS Origin Henan, China HS Code 843143100 Production Capacity 2000PCS/Month

Product Description

                       API 5CT Spec Float Collars and Float Shoes

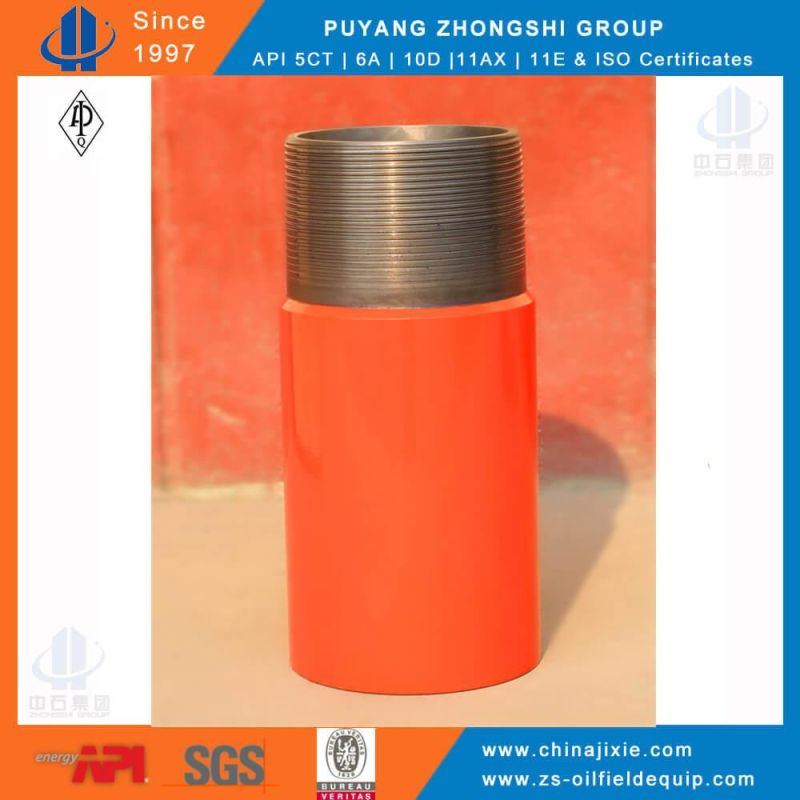

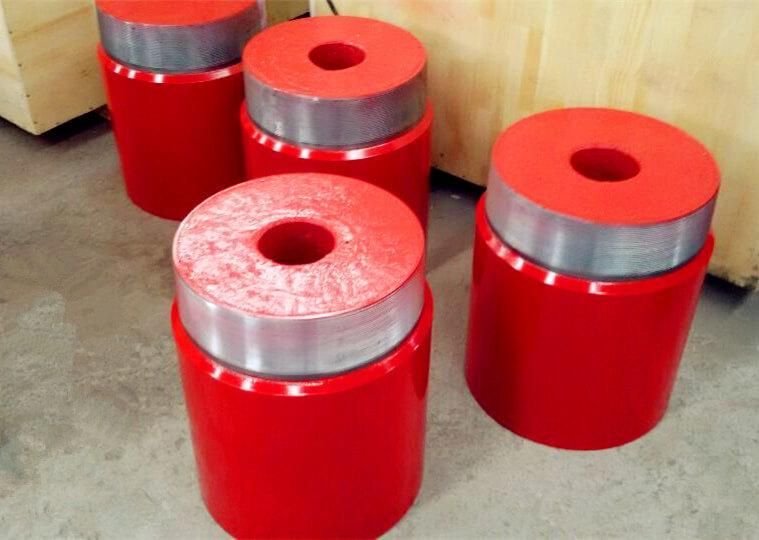

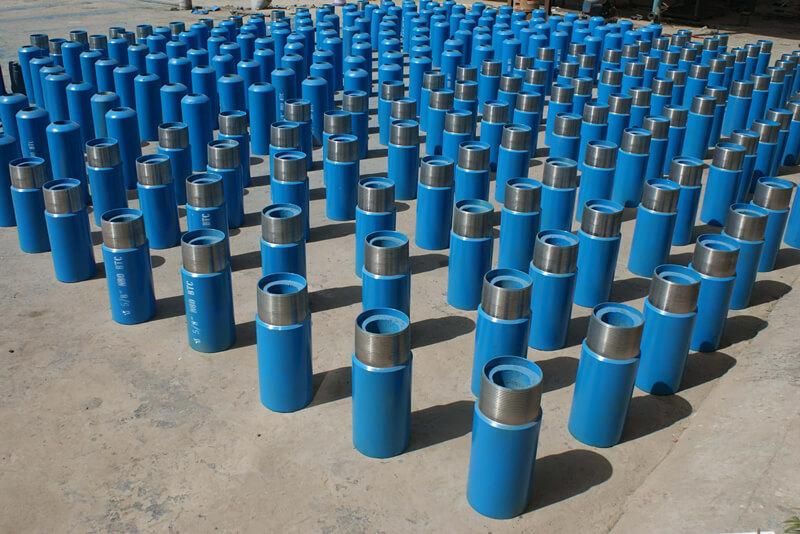

Float collar float shoe from our company adopts spring-loaded back pressure valve. It is of high reliability and with a compact structure. Other features include connecting in series is facilitated, reliability in resisting to back pressure, and easiness of drilled out.

On the top end for cement-filling of the float collar there are plum flower-like holes for anti-rotation purpose. Those holes fit with the front side of the rubber plug. When rubber plug is drilling by PDC bits, the plum flower holes prevent the rubber plug from rotation.

Feature:
1. All inner parts are made of easily drillable aluminum alloy.
2. The device can be connected directly to the casing of the same type.
3. Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
4. Valve seat and valve disk can effectively prevent grout from flowing back.
5. Non-rotating landing plate is available on request.
6. Either PDC or rock bit drillable.

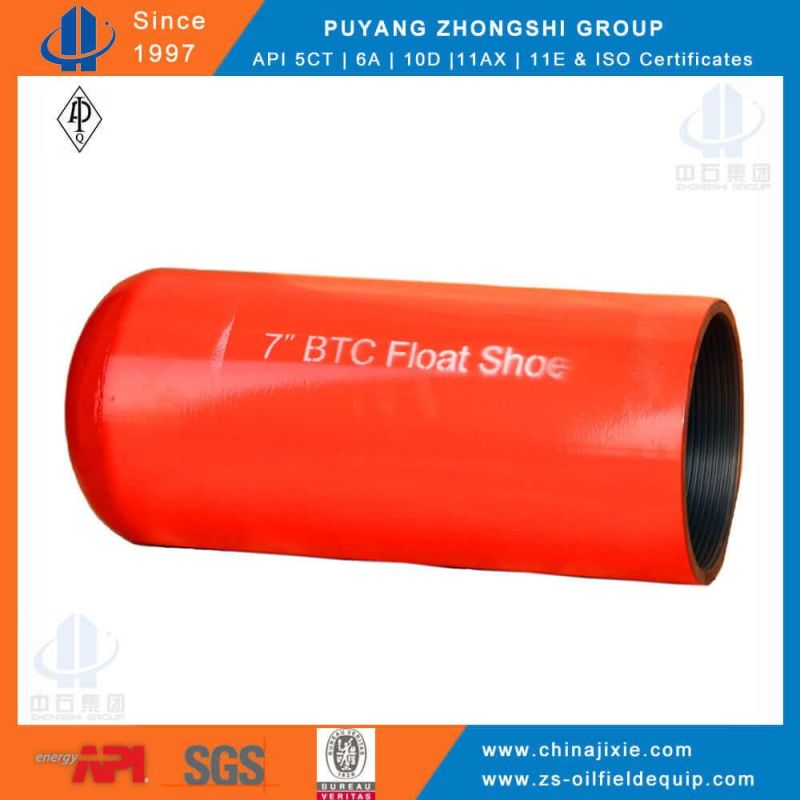

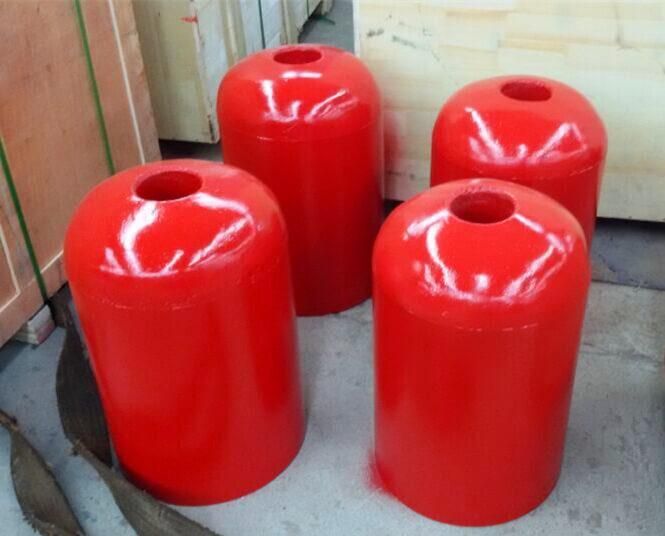

The body of the float shoe is composed of alloy materials. A back-pressure valve is equipped in the float shoe and oil well cement is filled in between the back-pressure valve and the float shoe body. The back-pressure valve can be drilled by PDC bit.




Specifications

Applicable Casing TypeDimensionBuckle ShapeReverse Working Pressure

5″	φ127	φ141.3*φ98*300	Tube buckle (API)	20-35 MPa
5 1/2"	φ139.7	φ153.67*φ120*350	Tube buckle (API)	20-35 MPa
7″	φ177.8	φ194.96*φ156*350	Tube buckle (API)	20-35 MPa
9 5/8″	φ244.5	φ269.88*φ221*400	Tube buckle (API)	20-35 MPa
13 3/8″	φ339.72	φ365.13*φ320*500	Tube buckle (API)	10-25 MPa
