• Model NO.：ZQ127-25, ZQ162-50, ZQ203-100, ZQ203-125
• Size Rang(in)：31,2 Coupling -8body
• Max.Torque：100kn.M
• Speed of Tong Hi.(Rpm)：3.7kn.M40
• Overall Dimensions(mm)：1700 *1000 *1400
• Weight：2400kg
• Transport Package：Pallet or Wooden Case
• Specification：1700 *1000 *1400
• Trademark：TR Solids Control
• Origin：Xi′an, China
• HS Code：84748090
• Production Capacity：50 Sets Per Month

ModelZQ203-125ZQ203-100ZQ203-100AZQ203-100BZQ162-50ZQ127-25Size
rangmm127-203121-203121-203121-20385-16265-127in31/2
coupling
-8body31/2
coupling
-8body31/2
coupling
-8body31/2
coupling
-8body23/8
coupling
-5body23/8
coupling-31/2bodyMax.torquekN.M1251001001005025ft.lbf922007375073750737503688018440Speed of tong Hi.rpm404040406065Speed of tong To.rpm2.72.72.72.74.110.5Hydraulic system pressure ratiginMpa2016.616.616.61612Psi290024002400240023201740Hydraulic system pressure ratiginL/min114114114114120180gpm303030303248Stoke of shifting cylindermm150015001500/10001000in595959/39.439.4Moving distance of tongmm///0-3000//in0-59Lifting diatance of tongmm//0-4850-1800//in0-190-31.5Overall dimensionsmm1720
*1050
*17501700
*1000
*14001700*
1000
*14001750*
1650
*20501570*
800
*11901110*
790
*820in68*
41*6967*
39*5567*
39*5569*
65*8162*
31*4744*
31*32WeightKg26002400250032501500620

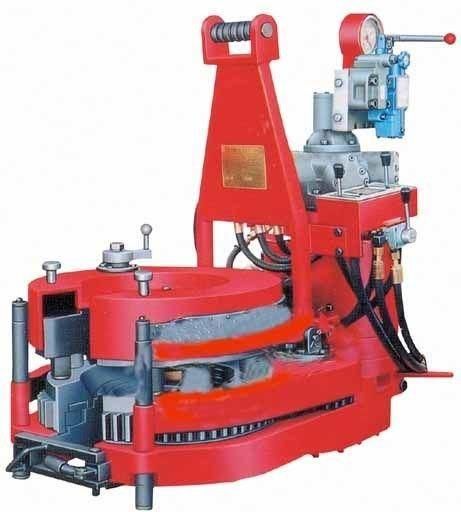

ZQ series of Drill Pipe Power Tongs



ZQ Drill Power Tong is an ideal well head tool for oil drilling,widely applied for making-up and breaking-out in onshore drilling operations and well servicing operations.The drill pipe tong features safety,labor-saving,and high-efficiency.Openthroat design of the ZQ-series allows the tongs to escape from drilling pipe freely with high mobility.The tong is a combination of spining tong and torque tong.It substitutes cathead,manual tong and rotary rope  in makeing-up and breaking-out.
