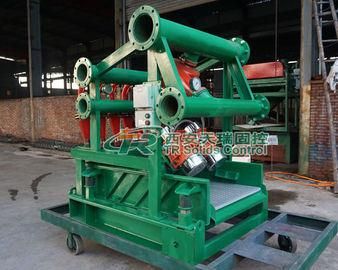

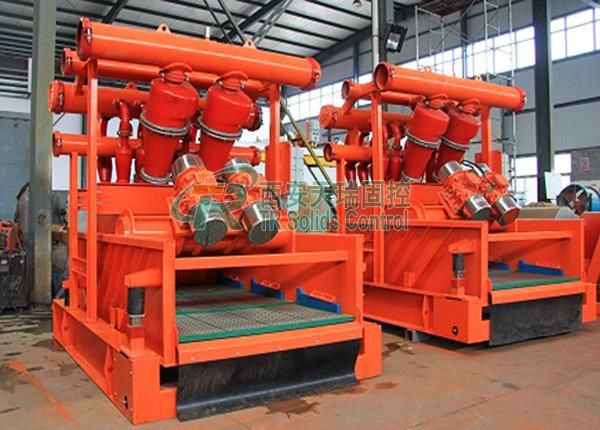

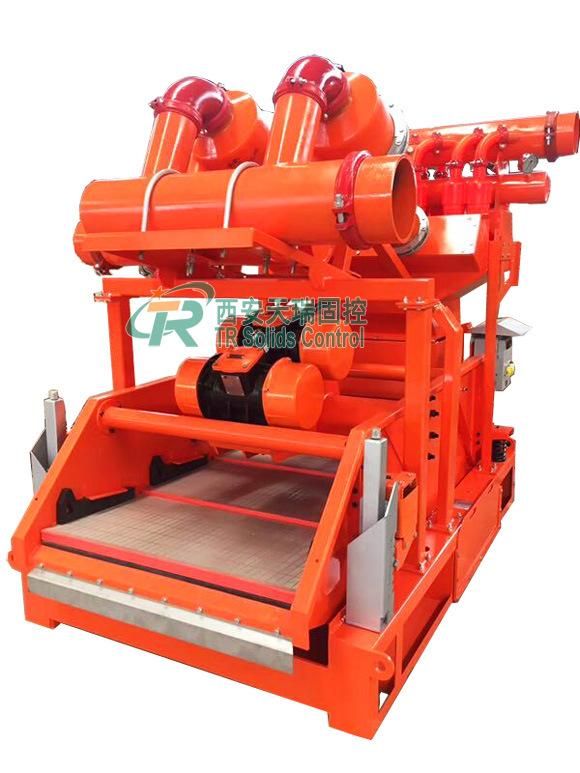

120m3/H Capacity Mud Cleaning Equipment Civil Construction and Engineering Use

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Mud Cleaner
  • Capacity：120m3,H

Base Info

  • Model NO.：TRQJ200*2S-100*8N
  • Desander Cyclone Qty：2nos
  • Desander Cyclone Specs：10"
  • Desilter Qty：8nos
  • Desilter Cyclone Specs：4"
  • Inlet Size：Dn150mm
  • Outlet Size：Dn200mm
  • Separation Point：15-44um
  • Working Pressure：0.25-0.4MPa
  • Bottom Shaker：Trzs752
  • Transport Package：Pallet or Wooden Case
  • Specification：1835*1230*1810mm
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：30 Sets , Month

Description

ModelTRQJ200×1S-100×4NTRQJ200×2S-100×8NTRQJ250×2S-100×12NTRQJ25×3S-100×20NCapacity60m³/h120m³/h240m³/h320m³/hDesander Cyclone Specs8"10"Desander Cyclone Qty1223Desilter Cyclone Specs4"Desilter Cyclone Qty481220Working Pressure0.25~0.4mpaInlet SizeDN125mmDN150mmDN150mmDN200mmOutlet SizeDN150mmDN200mmDN200mmDN250mmSeparation Point15μm~44μmBottom ShakerTRZS60TRZS752TRZS752TRZS703Dimension1.51×1.16×2.0m1.835×1.23×1.81m1.835×1.23×1.81m2.42×2.15×2.15mWeight600kg980kg1250kg2350 kgRemarkAll mud cleaners could be customized without bottom shaker.

120m3/H Capacity Mud Cleaning Equipment Civil Construction and Engineering Use120m3/H Capacity Mud Cleaning Equipment Civil Construction and Engineering Use120m3/H Capacity Mud Cleaning Equipment Civil Construction and Engineering Use120m3/H Capacity Mud Cleaning Equipment Civil Construction and Engineering Use




Application

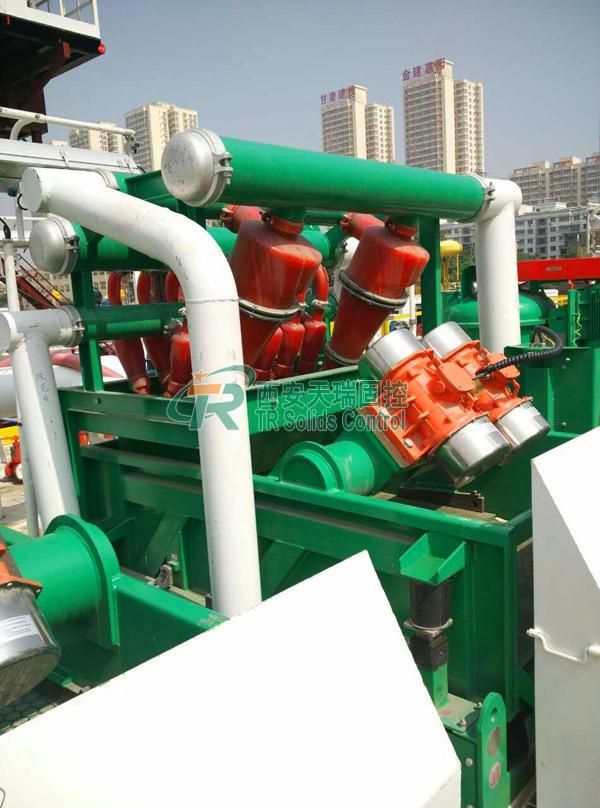

TR mud cleaner is widely used in trenchless HDD, city bored piling, oil & gas drilling, tunneling construction, Drilling Waste Management, environment protection, mining, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, Water Drilling etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
