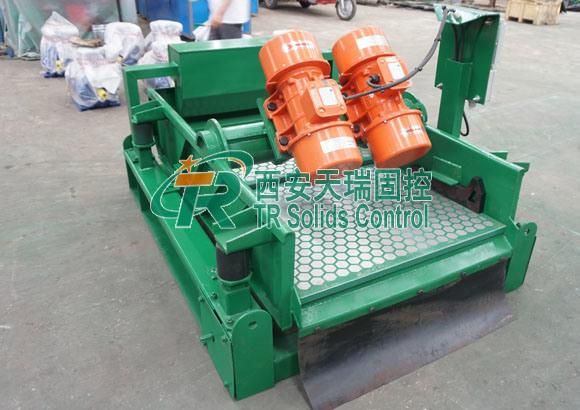

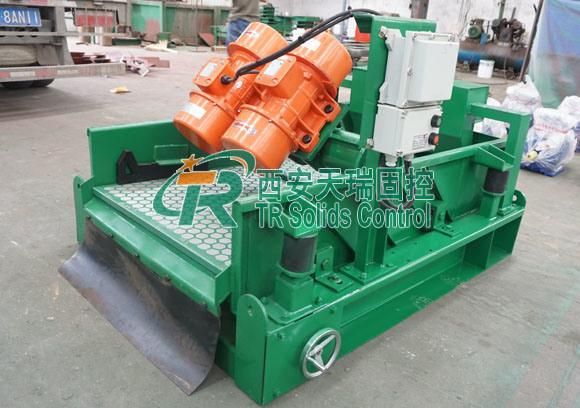

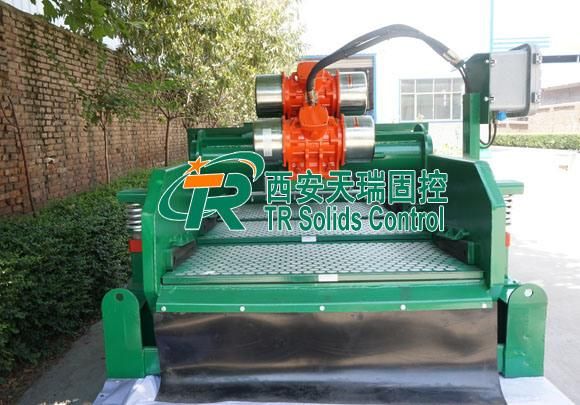

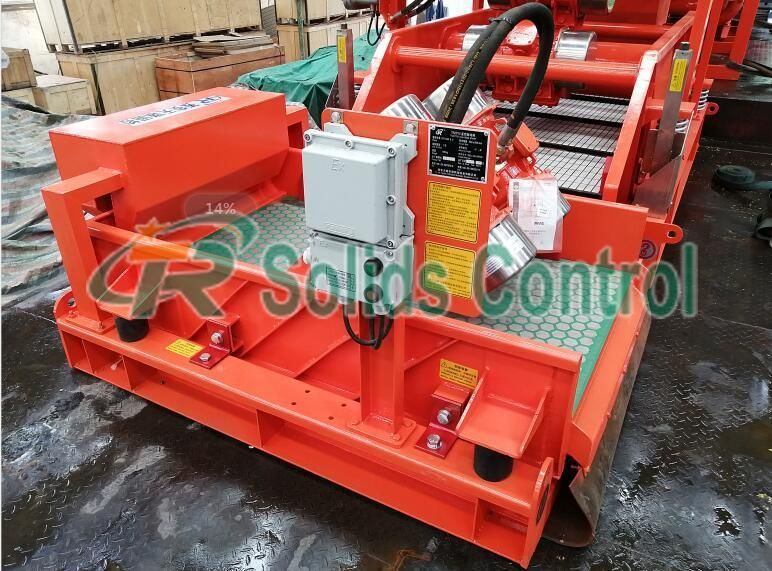

60m3/H Oil Rig Mud System Linear Motion Shale Shaker

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Mesh Shape：Hexagonal
  • Sieve Mesh Number：20-325
  • Layer：Multilayer
  • Material：Stainless Steel
  • Type：Linear

Base Info

  • Model NO.：TRZS752
  • Capacity：60m3,H
  • Vibration Motion：Linear Motion
  • Motor Power：0.75kw*2
  • Screen Specs.：(750*900mm)*2PCS
  • Screen Area：1.4m2
  • Vibration Strength：≤7.1g(Adjustabe)
  • Double Amplitude：5mm
  • Adjustment Angle：-1°-+5°
  • Ex Standard：Exdllbt4
  • Weight：1630kg
  • Transport Package：Pallet or Wooden Case
  • Specification：1835*1280*1200mm
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：30 Sets, Month

Description

ModelTRZS703TRZS2000TRZS585Vibrating ModelLinearLinearLinearMotor Power2×1.5KW2×1.72KW2×1.72KWVibrating Strength≤7.0G≤7.5G≤7.5GAmplitude6.0~7.2mm6.0~7.2mm Capacity527GPM615GPM615GPMDeck Adjustment-1°~5°-1°~5°-1°~5°Screen of Deck334Electric380V/50HZ,460V/60HZ or CustomizedDecibels<85db<85db<85dbEx StandardExdIIBt4 / IEC EX/ ATEXExdIIBt4 / IEC EX/ ATEXExdIIBt4 / IEC EX/ ATEXDimension2800X1785X17502800X1600X16902800X1600X1690Weight1550kg1850kg1750kg



60m3/H Oil Rig Mud System Linear Motion Shale Shaker


60m3/H Oil Rig Mud System Linear Motion Shale Shaker
60m3/H Oil Rig Mud System Linear Motion Shale Shaker60m3/H Oil Rig Mud System Linear Motion Shale Shaker60m3/H Oil Rig Mud System Linear Motion Shale Shaker

Application



TR shale shaker is widely used in tunneling construction, city bored piling, oil & gas drilling, trenchless HDD, Drilling Waste Management, Oil Mud Seperation, environment protection, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, mining, Water Drilling etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
