• Model NO.：7 1,16 in
• Bottom Flange Size：7 1,16 in
• Bottom Working Pressure：3000psi
• Top Flange Size：11
• Top Working Pressure：2000psi
• Outlet：2 Lp"
• Transport Package：Wooden Case
• Specification：7 1,16 in
• Trademark：TR Solids Control
• Origin：Xi′an, China
• HS Code：84748090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. 7 1/16 in Bottom Flange Size 7 1/16 in Bottom Working Pressure 3000psi Top Flange Size 11 Top Working Pressure 2000psi Outlet 2 Lp" Transport Package Wooden Case Specification 7 1/16 in Trademark TR Solids Control Origin Xi′an, China HS Code 84748090 Production Capacity 100PCS/Month

Product Description

Tubing Head Spool

Tubing head is used to hang the tubing and seal the area between the tubing and casing. JIELIN's tubing heads are straight-bore with 45ºC landing shoulder design which avoids damage to sealing areas by drilling tools, and prevents wedging of the tubing hangers, bowl protectors and test plugs. So it can accept all TC series tubing hangers, and can be converted from single completion to multiple completion.


Outlets
 Line Pipe Outlets
 Studded Side Outlets

Bottom Connections
  PE/BG
  HPE

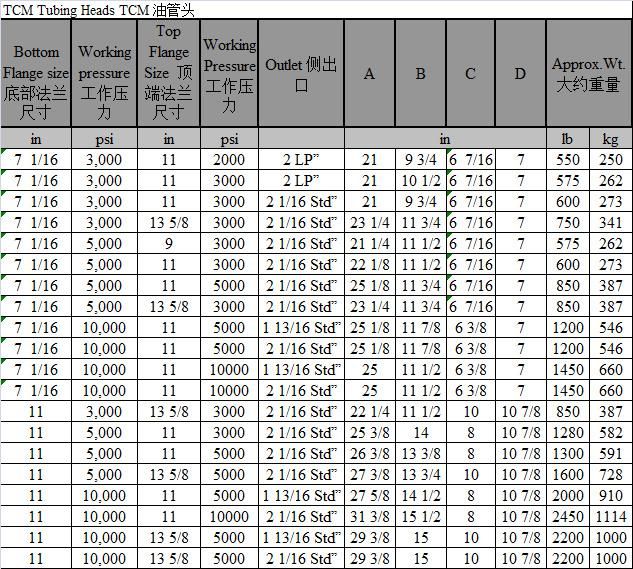

Product parameters are as follows:


Tubing head is used to hang the tubing and seal the area between the tubing and casing. JIELIN's tubing heads are straight-bore with 45ºC landing shoulder design which avoids damage to sealing areas by drilling tools, and prevents wedging of the tubing hangers, bowl protectors and test plugs. So it can accept all TC series tubing hangers, and can be converted from single completion to multiple completion.
