API 6A Wellhead Assemblies Casing Spool
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.- Drilling Program：Multistage
- Applicable Medium：Mud, Water, Natural Gas, Crude Oil
- Connection Form：Flange
- Installation Position：Overwater
- Structure：Plug-In
- Type：Composite
Base Info
- Model NO.：JL-22
- Bottom Flange Size：11 in
- Top Flange Size：11
- Working Pressure：3000psi
- Outlet：2-1,16"Studd
- Transport Package：Wooden Case
- Specification：JL-22
- Trademark：TR Solids Control
- Origin：Xi′an, China
- HS Code：84748090
- Production Capacity：100PCS,Month
Description
Basic Info.

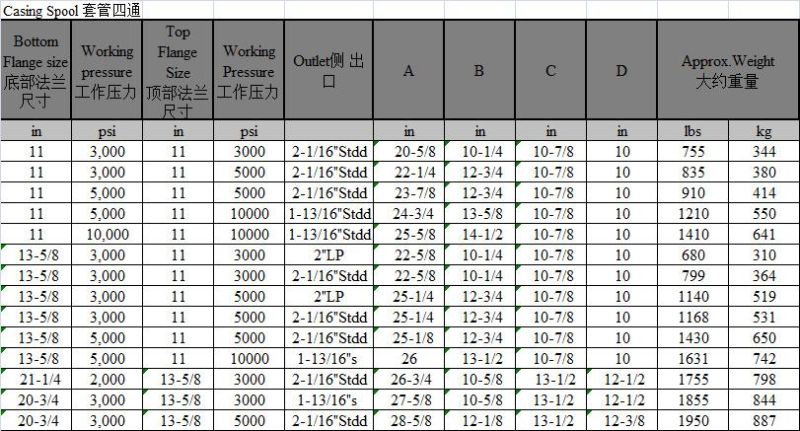

Model NO. JL-22 Bottom Flange Size 11 in Top Flange Size 11 Working Pressure 3000psi Outlet 2-1/16"Studd Transport Package Wooden Case Specification JL-22 Trademark TR Solids Control Origin Xi′an, China HS Code 84748090 Production Capacity 100PCS/MonthProduct Description
Casing SpoolJL-22 and JL-29 casing spools feature a versatile straight bore design with 45°landing shoulder to support maximum casing loads, and accept a wide variety of slip and mandrel type casing hangers, minimizes risk of damage to sealing areas by drilling tools, and prevents test-plug and bow-protector wedging when pressure is applied.
JL-29 Casing Spools are based on the same design as the JL-22 with exception that the bowl is larger, which allowed the JL-29 casing hanger with larger load capacity.
Outlets
Line Pipe Outlets
Studded Side Outlets
Bottom Connections
PE/BG bottom
OO bottom(below 5,000psi)
Double "P" seal bottom
