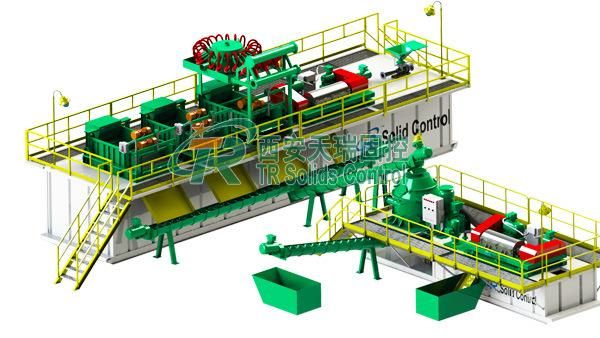

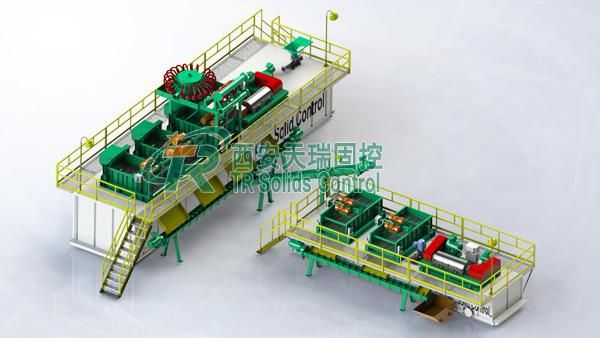

Water Based Management Drilling Mud System with 2 Screw Pumps

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Wbm
  • Transport Package：Wooden Case or by Container

Base Info

  • Model NO.：TRDWM
  • Specification：9000*2200*1300mm
  • Trademark：TR Solids Control
  • Origin：China
  • Production Capacity：10 Set , Month

Description

S/NS/NDescription1Vertical Cuttings DryerTRCD930 with option for VFD or fixed speed2Decanter CentrifugeTRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed3Screw PumpTwo sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.4Skid with catching tankFast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.5Telescopic SkidTwo telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings6Electric Cradle0.5 Tons electric cradle for lifting the components of vertical dryer7Electric Control SystemTwo lighting system,electrical control boxes and cables and plugs for operation the complete system.

 Water Based Management Drilling Mud System with 2 Screw PumpsWater Based Management Drilling Mud System with 2 Screw PumpsWater Based Management Drilling Mud System with 2 Screw PumpsWater Based Management Drilling Mud System with 2 Screw Pumps



TR Solids Control is a professional manufacturer of drilling waste management and solids control equipment. We could provide one-stop service for your oil and gas drilling requirements. If you have any inquiry about shale shaker, shaker screen, mud agitator, mud cleaner, desilter, desander, decanter centrifuge, shear pump, centrifugal pump, jet mud mixer, etc, welcome to contact us freely. TR will provide our best price and service to you.


Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
